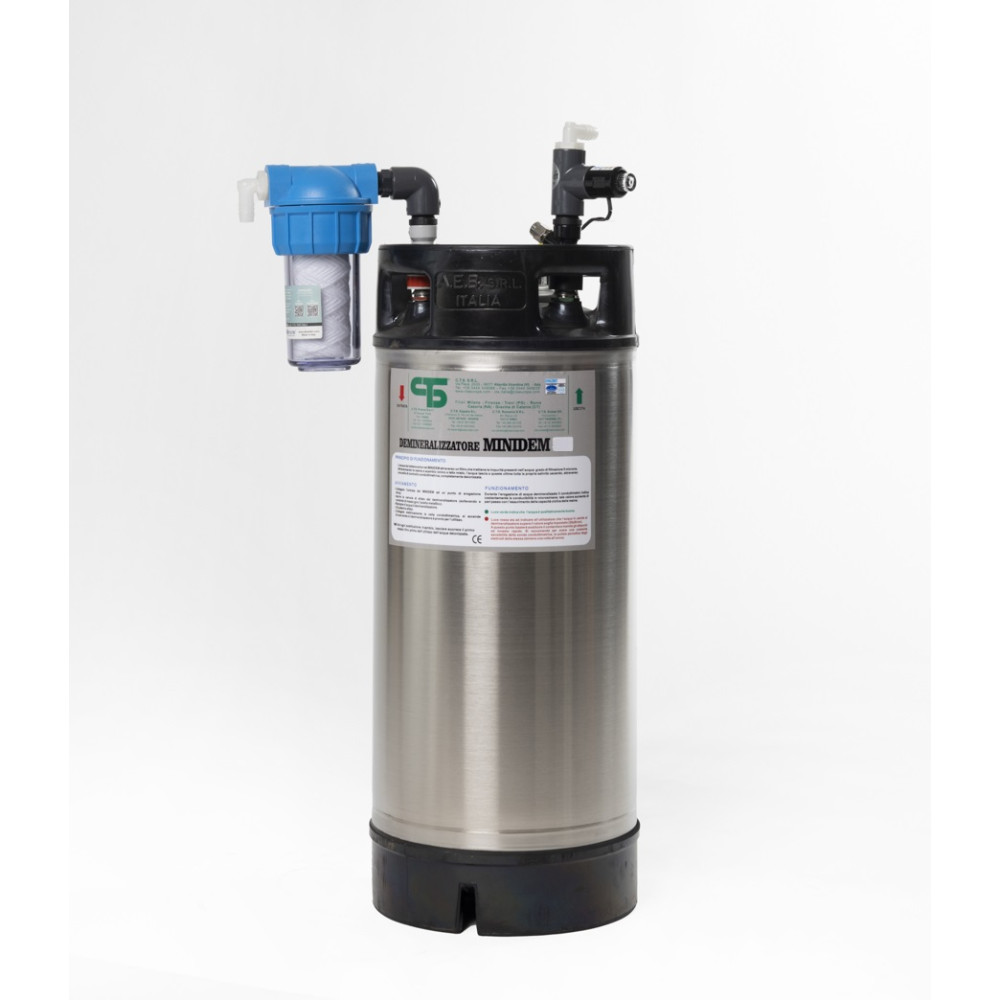

DEMINERALIZER MOD. MINIDEM 30 - flow rate: 420 l/h. max

Demineralizer with mixed-bed ion-exchange resins, realized to provide high purity water with no salts; it is composed of:
- a mechanical micrometric inlet filter mod. FP5 for solids with transparent container and 5” cartridge with 5 µ filtration degree;
- a LED conductivity meter for the continuous measurement of the quality of the produced water: - Green light: from 0 to 20 µS/cm - Red light: over 20 µS/cm
- a stainless steel column with practical handling handles, supplied complete with inlet/outlet quick-release connections and upper lid. It is filled with a mixture of demineralizing mixed-bed resins (cationic/anionic) with high exchange power.
- wheeled supporting frame, in stainless steel.



TECHNICAL SPECIFICATIONS

- Power supply: 220V – 50Hz single-phase - 12V (conductivity meter)
- Feedwater pressure: 5 bar max.
- Flow rate: 420 l/h. max.
- Ion-exchange resin quantity: 30 l
- Approximate water treatment capacity: - 4000 l at 20°F - 2800 l at 30°F - 2500 l at 34°F
- Water purity: 1 µS/cm
- Column dimensions: ø 29 x h 59 cm
- Overall dimensions: 31x30xh 107 cm
- Weight: approx. 37 kg
