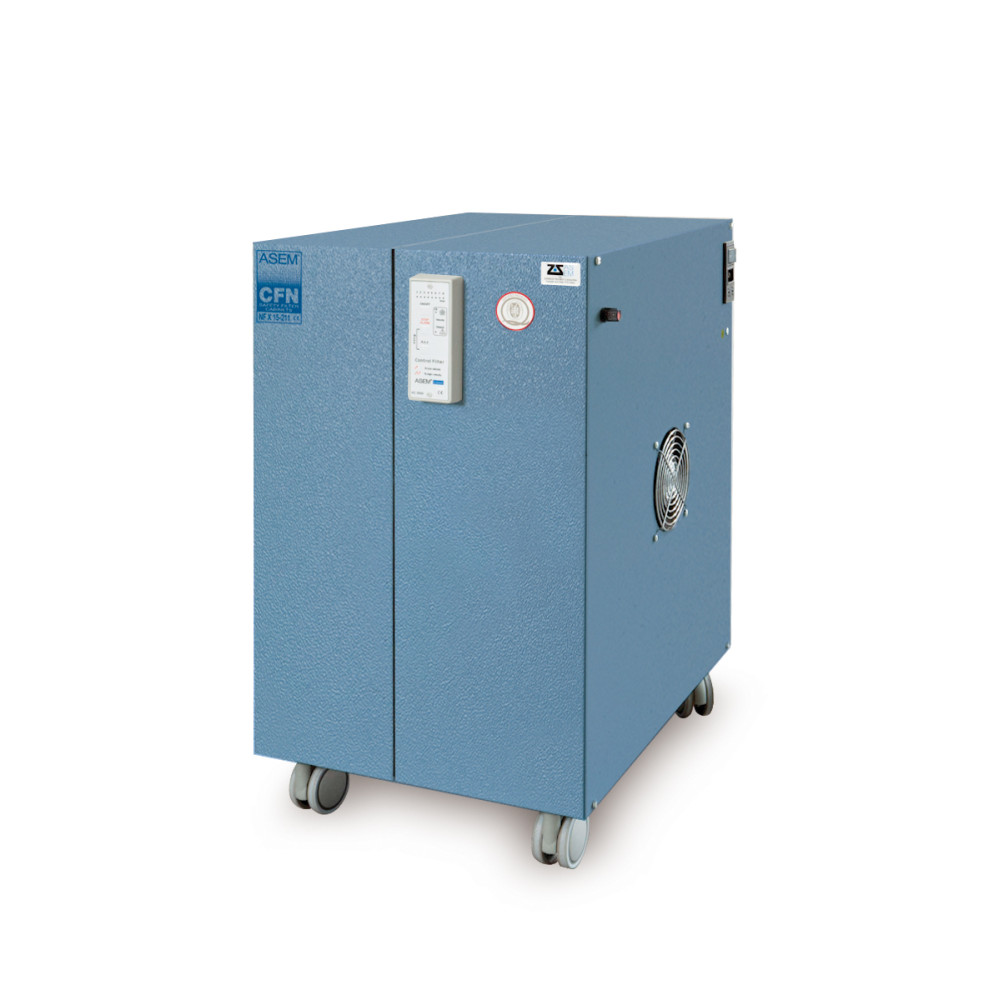

MOLECOLAR FILTRATION / ASPIRATION SYSTEM type CFN_UB

For SAFETY CABINETS Series UB and UNDER HOOD CABINETS (without expulsion) - WITH RECIRCULATION VENTILATION SYSTEM (Molecular Filtration) with ACTIVATED CARBON FILTER and PRE-FILTER, equipped with wheels, 2 ventilation outlets, and visual and acoustic alarm. Certified according to NFX15-211 standard

All toxic vapors released by the storage of chemicals are removed, ensuring clean air inside the laboratory. Simpler and more cost-effective to implement, this system allows for ventilation of the cabinets without the need for external connections and without issues related to air compensation in the room. Therefore, this electro-aspirator can be installed anywhere in the laboratory, close to the work area.



TECHNICAL FEATURES

- Electrogalvanized steel structure 10/10 mm, coated with blue epoxy paint, dimensions: 410x570x650 mm (LxWxH)

- Axial fan / Flow rate: 100 m³/h

- Voltage/frequency: 220 volts/50Hz, IP44 protection

- Noise level: 45dB

- Complies with ISO 3744 standard

- CCl4 retention capacity on filter 7000 g (in accordance with the efficiency level defined by AFNOR NFX 15-211) or maximum rejection of 50% of the product’s average exposure value

- Weight: approx. 15 kg

- Equipped with 4 wheels



Electronic suction control (CE1250) with TOUCH system and display for:

- Turning the electro-aspirator on and off

- Display of speed and flow rate

- Low flow alarm

- 50-50 timing: 50 Suction, 50 Off

- Filter replacement timer

- Time 60 hours NFX15211 (deactivatable)



(It is recommended to replace the filter 1–2 times a year)
