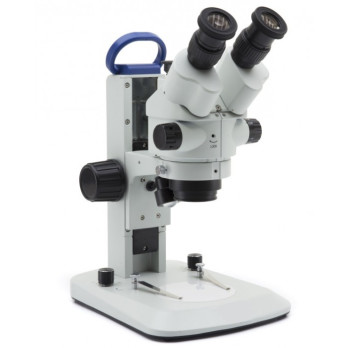

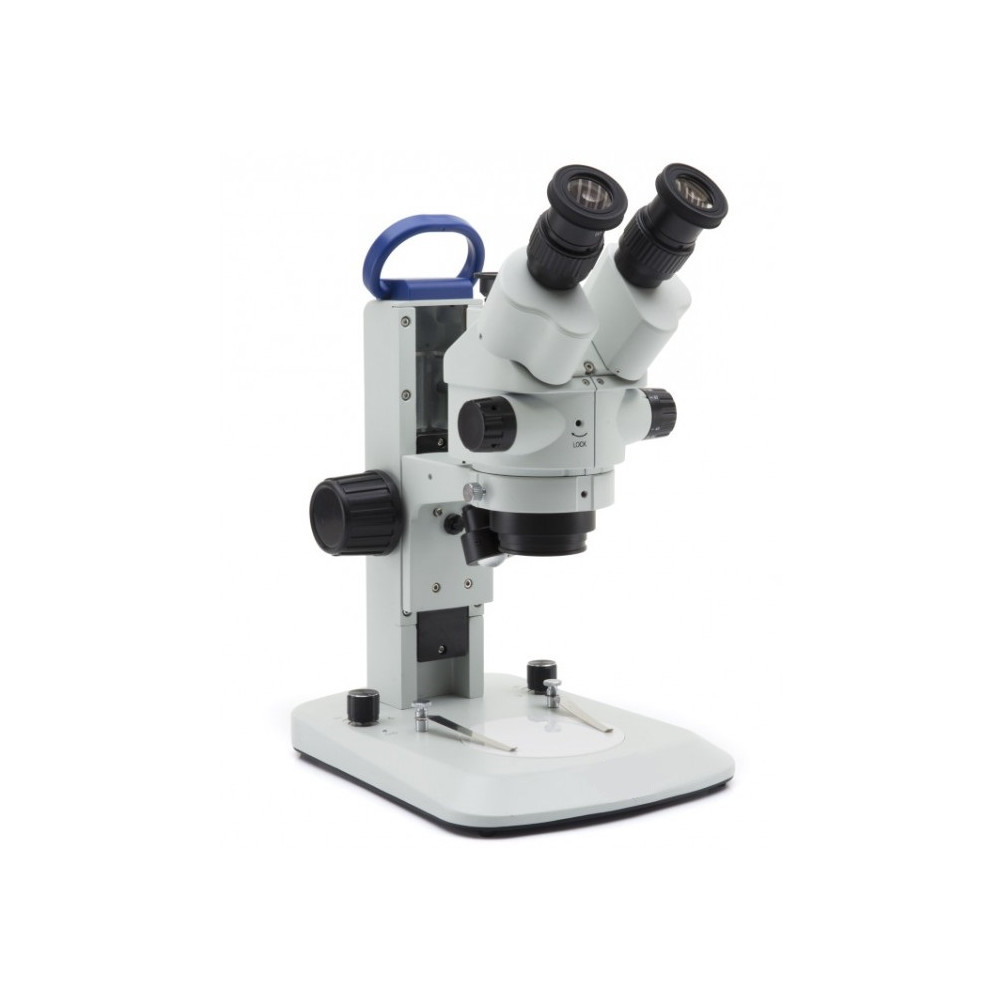

STEREOSCOPIC MICROSCOPE MOD. SZM-1 Trinocular

The SZM-1 microscope can be considered an entry-level model among professional stereomicroscopes, equipped with a table stand, EcoLED™ illumination, and batteries for operation.Trinocular model with eyepieces suitable for eyeglass wearers, zoom ratio 6.43:1 (0.7x…4.5x), capable of working with additional lenses and prepared for connection to an external camera.



The SZM-1 microscope consists of:

- SLX-3 trinocular optical head, inclined at 45° and rotatable 360°, with zoom objective from 0.7x to 4.5x; working distance 100 mm; interpupillary adjustment 51–75 mm; diopter adjustment +/– 5 diopters; third eyepiece tube allowing connection to cameras (via specific accessories) or video cameras;

- focusing device;

- standard tabletop stand, with illumination control knobs and specimen holder plate with spring clips. Base 270x210 mm – vertical rod ø 32 mm x h. 280 mm;

- pair of 10x eyepieces with eyecups, field number 21 mm, field of view 32.84–4.89 mm;

- EcoLED™ illumination system, for both incident and transmitted light; color temperature 6,300°K, complete with power supply;

- dust cover;

- 3 x AA batteries (INCLUDED);

- weight approx. 3.6 kg.
