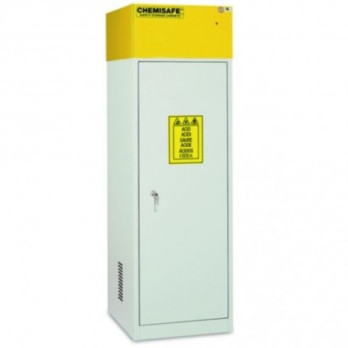

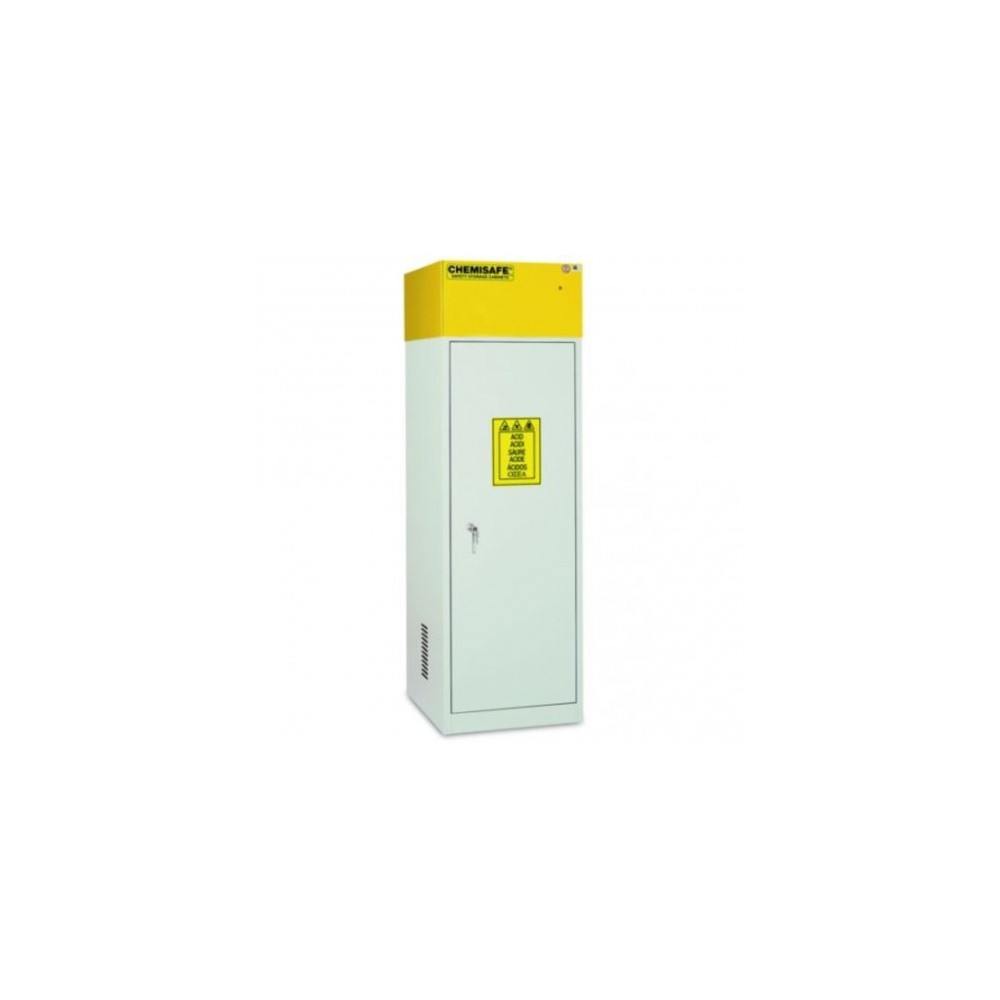

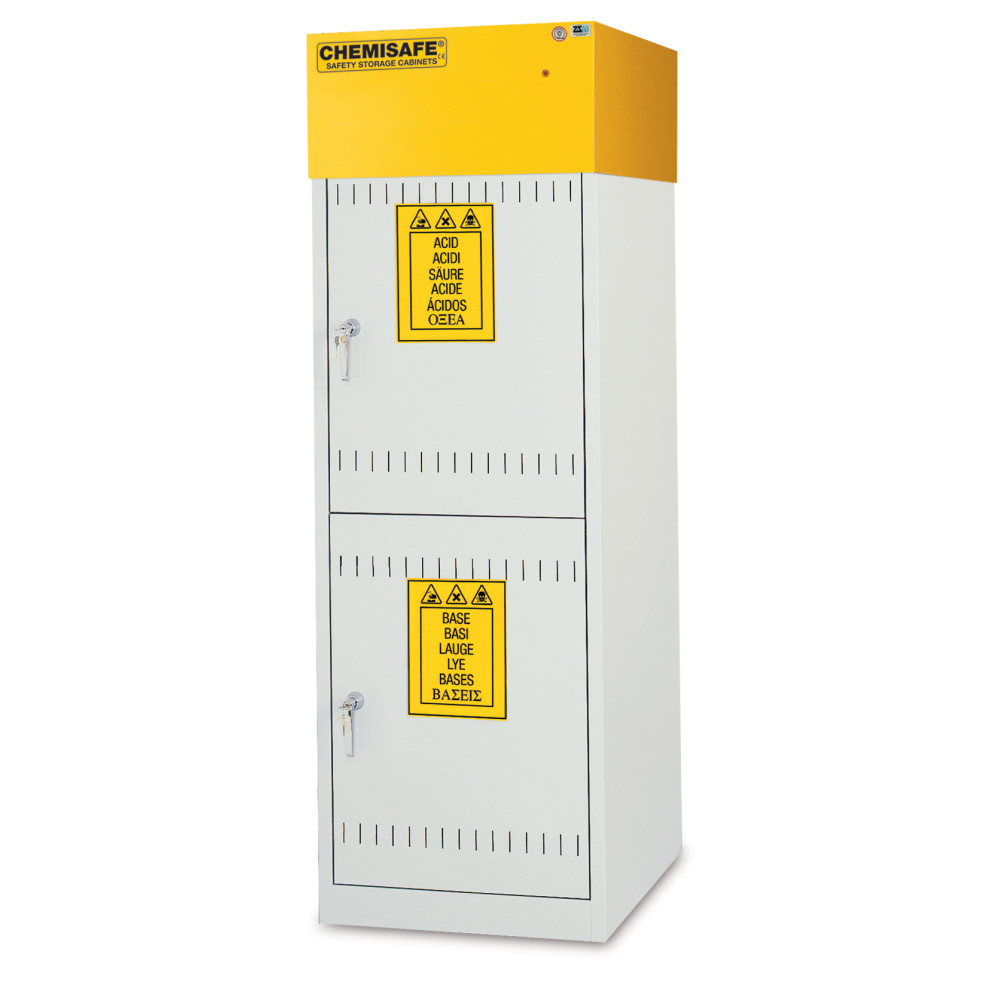

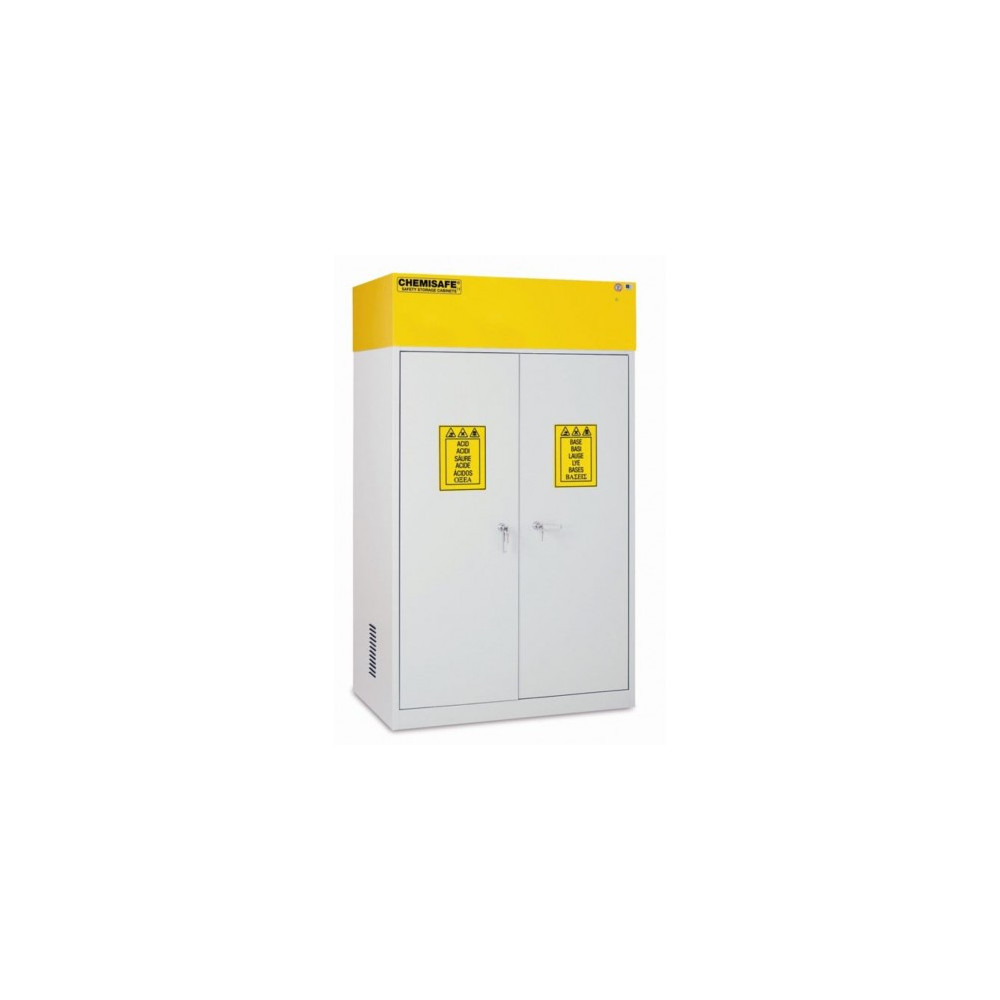

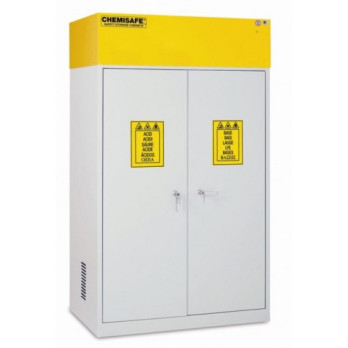

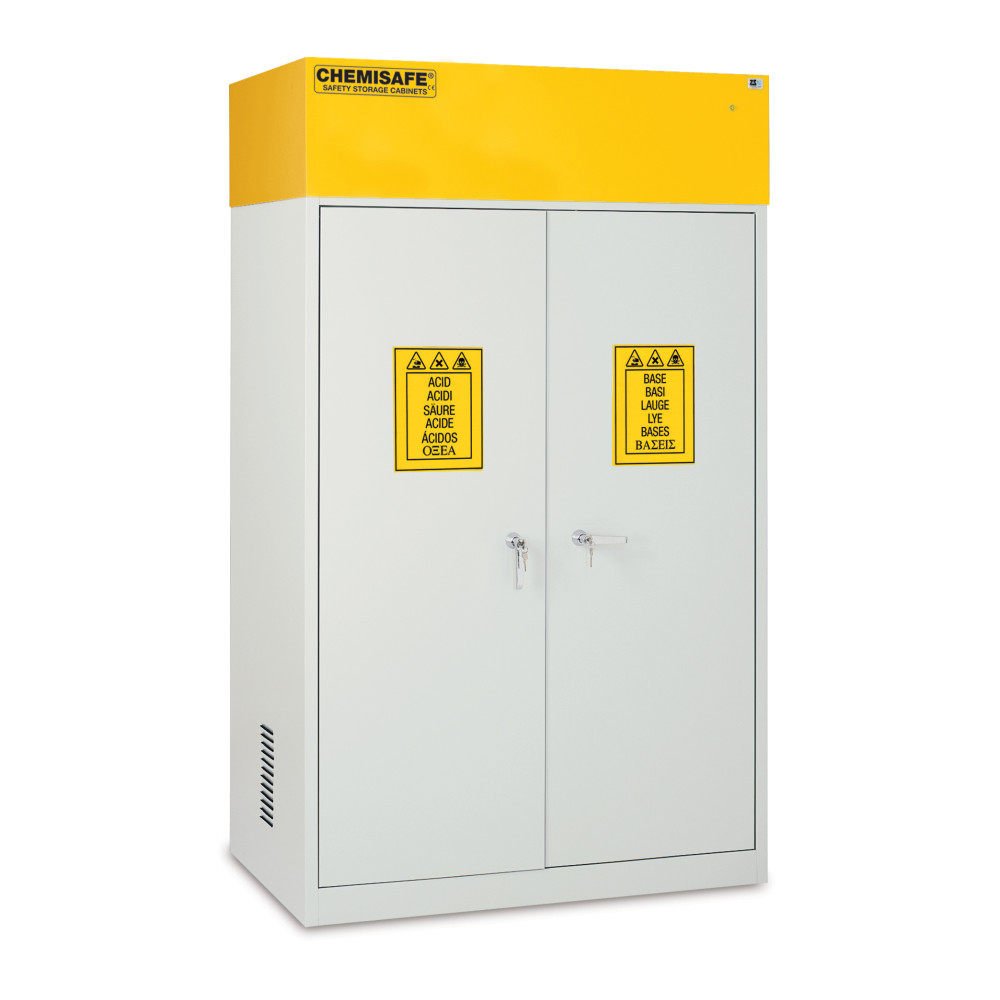

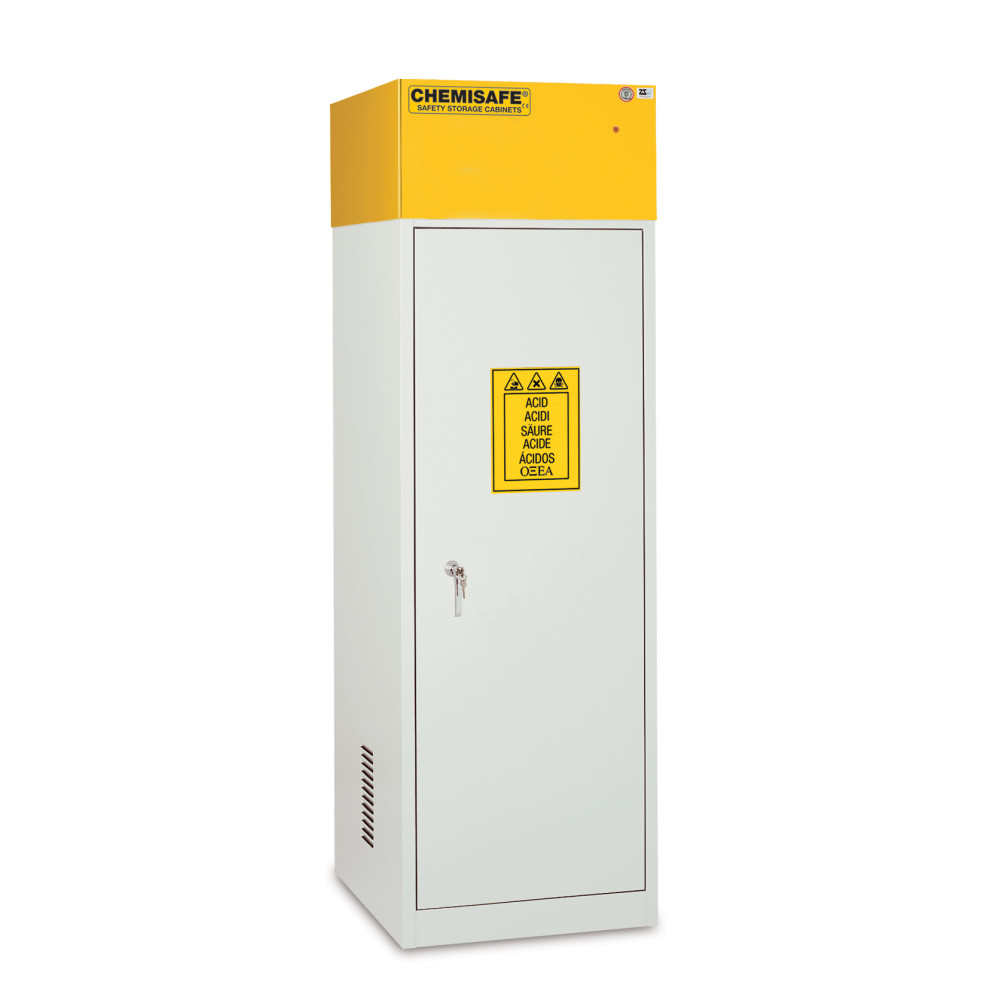

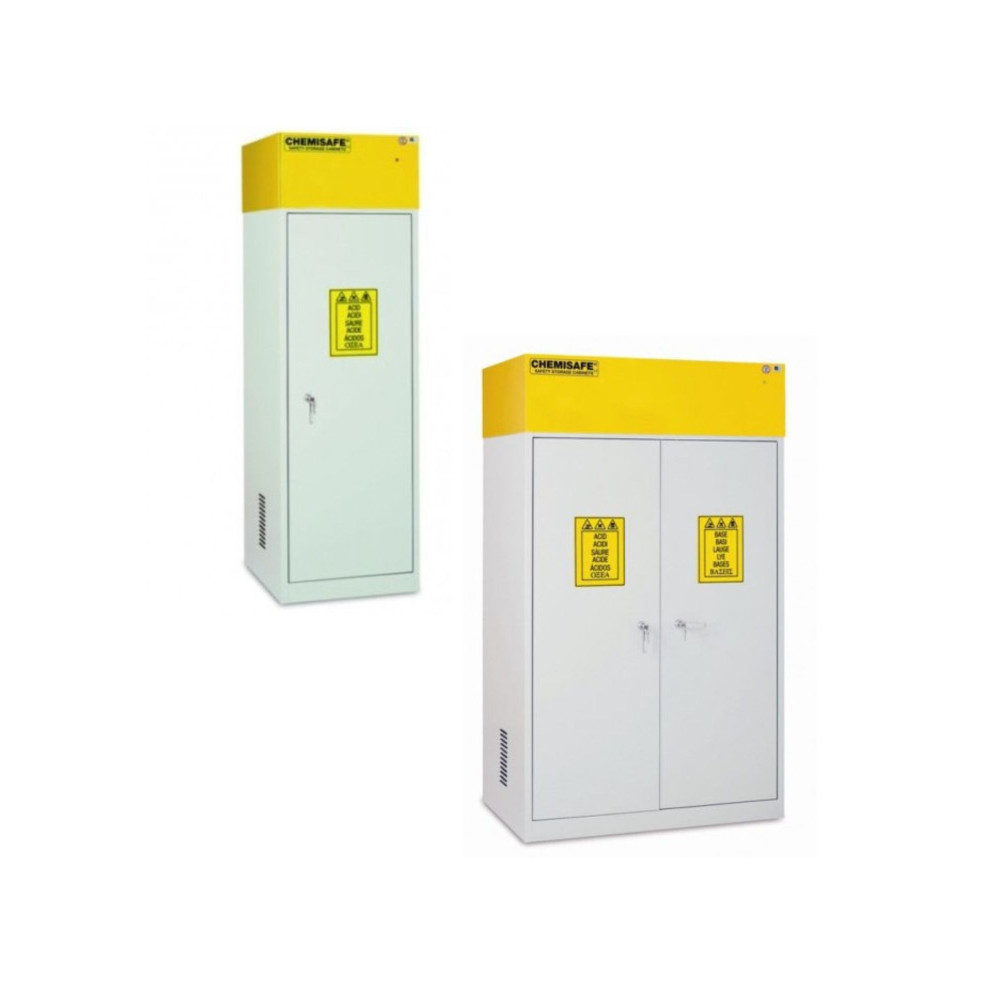

"CHEMISAFE CHEMICALS" SAFETY CABINETS FOR ACIDS AND BASES

Certified according to EN61010-1, EN16121, and CEI 66-5



TECHNICAL FEATURES

• Fully constructed from electro-galvanized steel sheet (Skin passat) FE P01 with a thickness of 10/10 mm, cold pressed and painted, after degreasing treatment, with an initial epoxy primer application and two successive thermosetting powder applications, followed by a pass through the thermal chamber at 200°C.

• Monolithic construction with feet at the base for leveling the cabinets.

• Blind doors and reversible doors built with the same materials, complete with handles, security locks, and locks.

• Electro-aspirator with self-extinguishing technopolymer housing, anti-static and resistant to corrosive agents.

• Protection fuses: 5x20 mm, fast flow 1A.

• Aspirator capacity: max 325 m³/h.

• Power supply: 220/230 V-50 Hz single-phase.

• Absorption: 74 W.

• Activated carbon filter mounted on top, suitable for acid substances, with pre-filter. Easy filter replacement behind a panel with a key lock.

• Handles with lock and key.

• Steel trays with a thickness of 10/10 mm for holding liquids in case of breakage or spills from containers. Adjustable in height.

• 110° opening, which allows the shelves to be removed without having to tilt them.

• Multilingual safety signals indicating the presence of hazardous and toxic products to highlight contents and storage limits.

• Standardized pictograms according to ISO 3864.

• Locking with safety lock and key.

• Complies with EN61010-1, EN16121, and CEI 66-5 standards.



SEE ALSO "FILTER-ASPIRATOR SYSTEMS"
