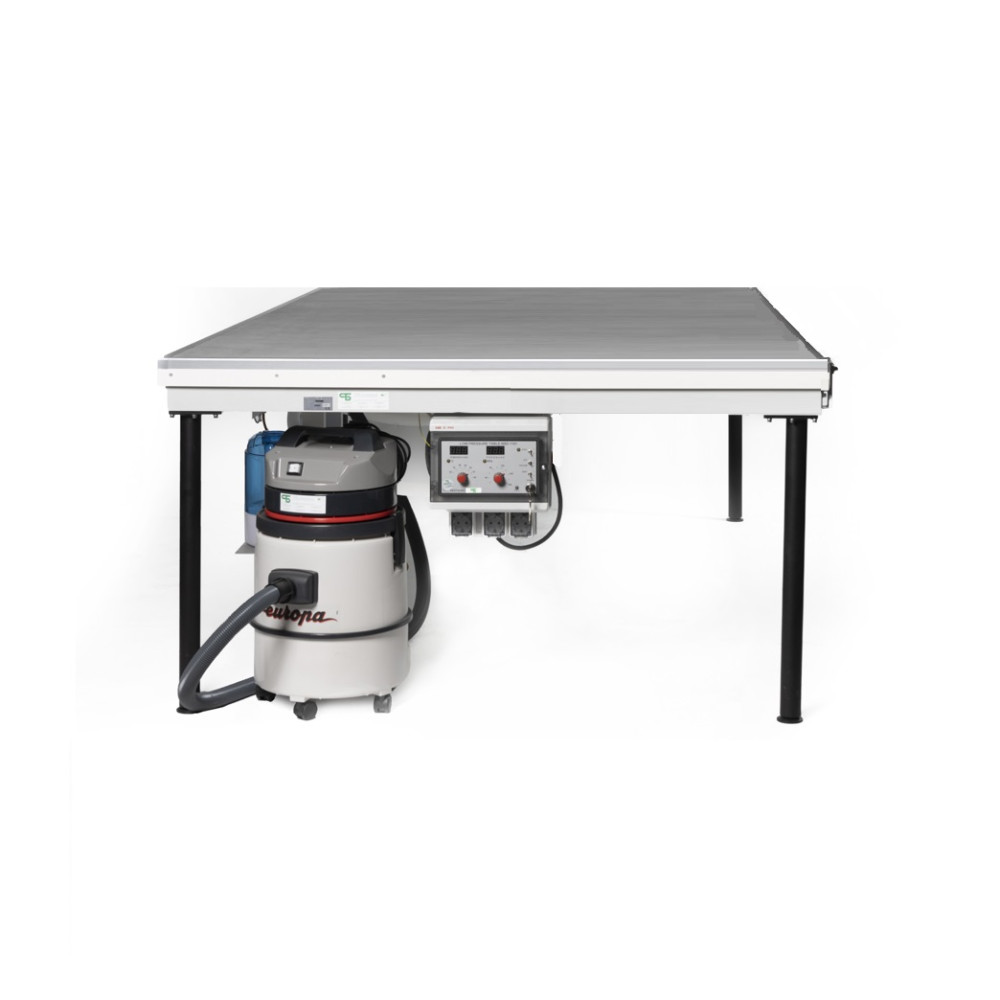

MESA BAJA PRESION NSD 1100 C

NSD 1100 C is a modern device which can help conservators in the various stages of paper and painting restoration. NSD 1100 C is the basic version of the low pressure tables and is equipped with a low pressure system which provides uniform suction over the entire working surface.



NSD 1100 C consists of:



- detachable supporting legs to make movings easier;

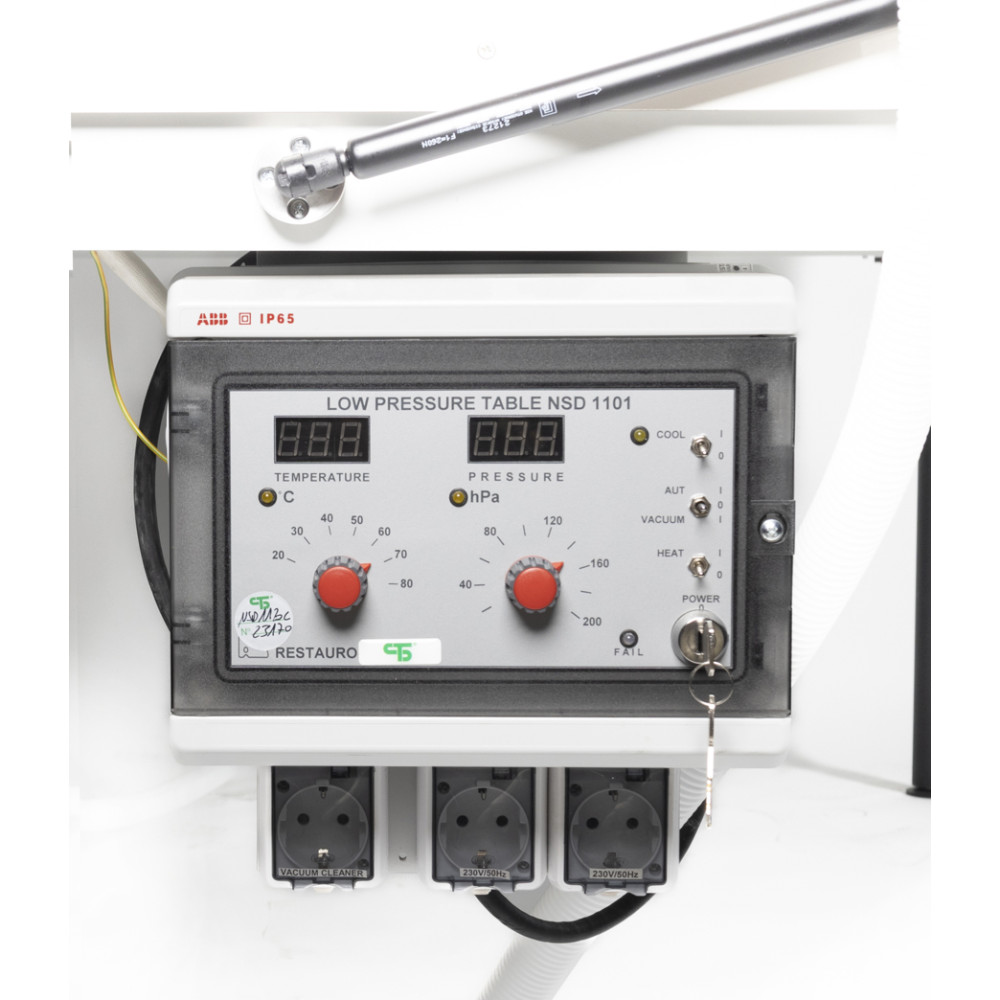

- detachable control unit with on/off key switch, low pressure system switch with warning light, pressure dial controller with display, automatic pressure control switch and connection hose to the suction system;



- an aluminium working surface with built-in heating elements and suction hoses, with two perforated platens of different thickness: the upper is 1 mm thick with holes ø 1.5 mm, the lower is 2 mm thick with holes ø 3.5 mm. Both platens are fixed to the table with a thermoresistant tape for an easy disassembly; the holes cover the 25% of the platen surface;



- a noiseless electric vacuum cleaner mod. Europa 303E, 1200W - 220V single-phase.









TECHNICAL SPECIFICATIONS







- Power supply: 220V single-phase



- Safety class: I



- Vacuum cleaner air flow: 210 m³/h



- Vacuum cleaner pressure: max. 2500 mmH2O



- Total weight: approx. 140 kg
