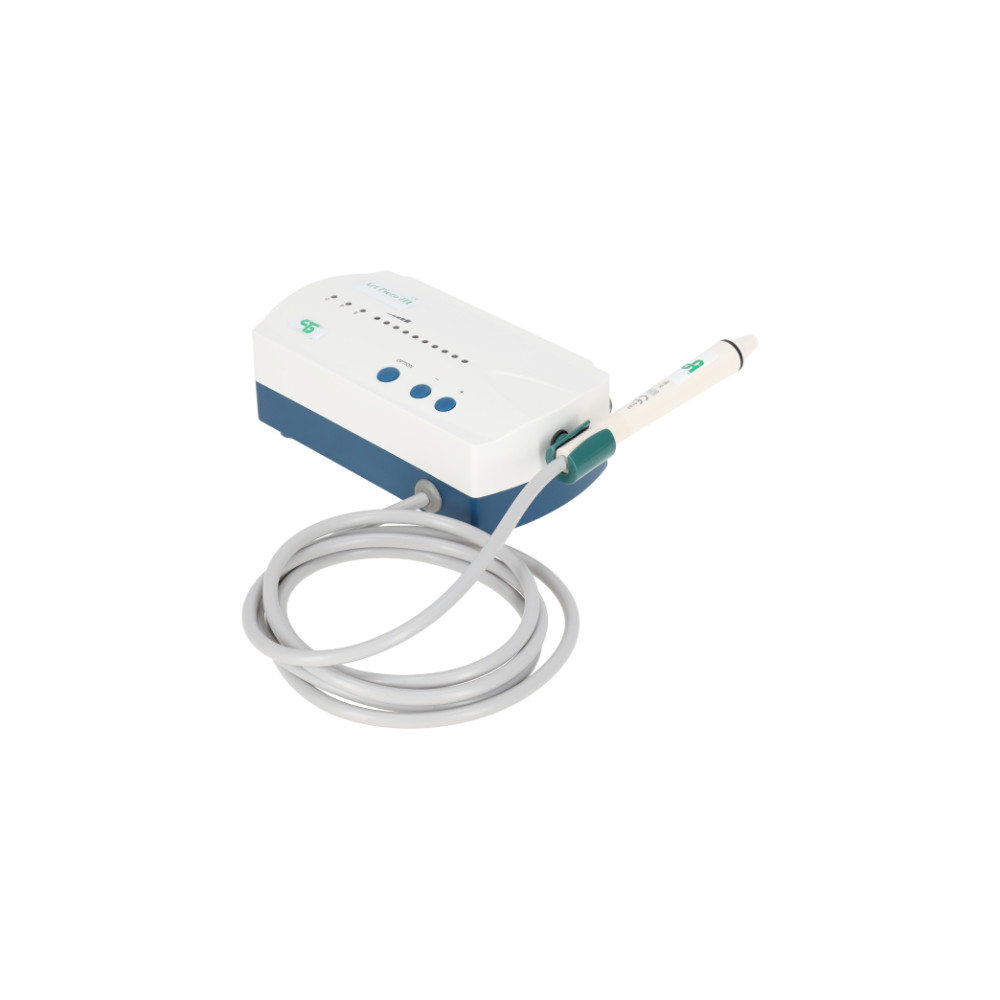

ULTRASONIC DEVICE CTS ART PIEZO III

PRODUCT DESCRIPTION

A necessary device for studio and site use which removes crusts from archaeological finds, frescoes or stone artifacts, without damaging the underlying surface.
ART PIEZO is an ultrasonic piezoelectric device which can be cooled both by water and air, according to the restorer’s needs.

CTS ART PIEZO is composed of:
- an electronic control unit with ultrasonic power regulator and capacity regulator of the cooling circuit, ON/OFF switches and activation switch of the automatic system of water supply, vibration mode selector depending on the tip series and power connections;
- a handpiece holder fitted on the control unit;
- an ultrasonic handpiece that can be divided, with 190 cm cable;

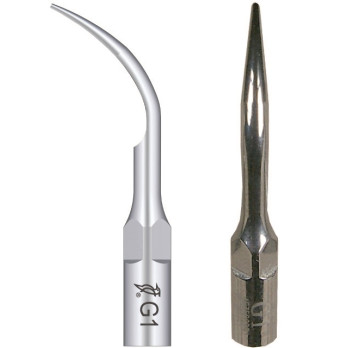

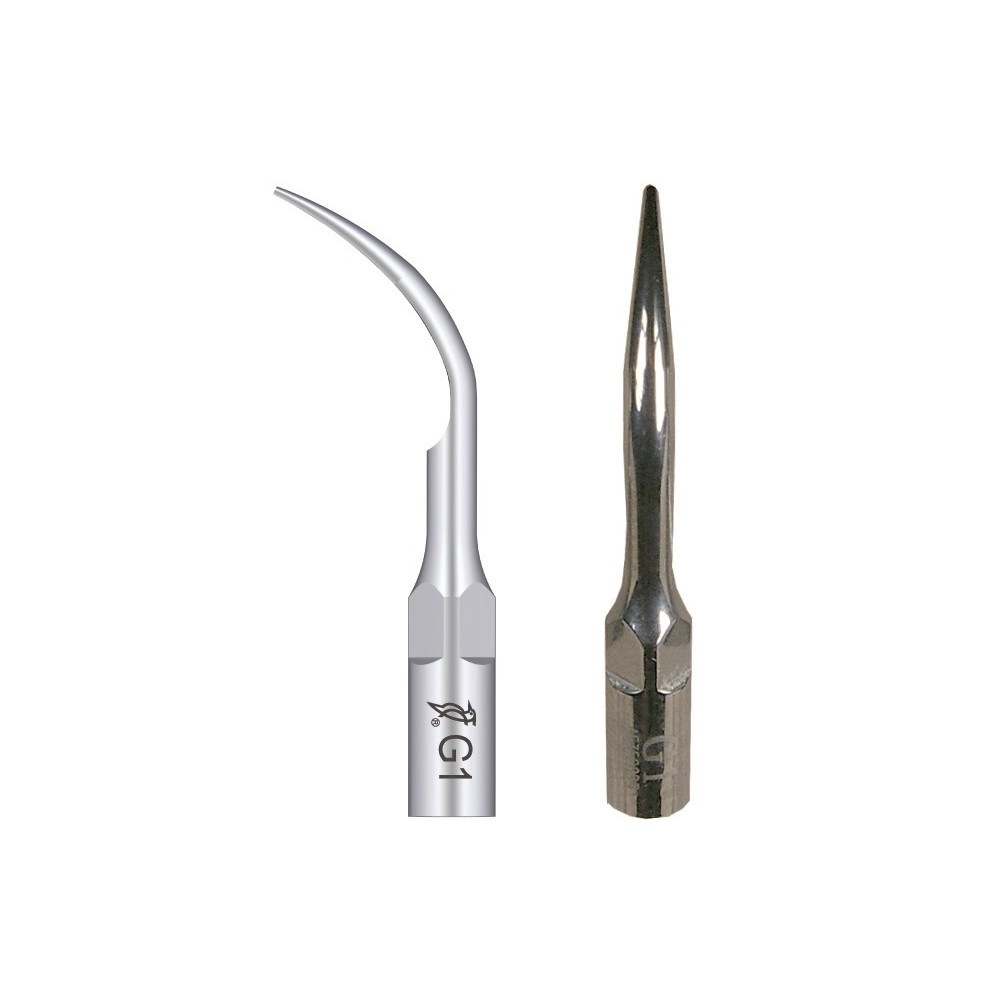

- a set of 6 tips in various forms, complete with a dynamometric key: no. 02 Fig. G1, no. 02 Fig. G2, no. 01 Fig. G4, no. 01 Fig. P1;
- a transparent tank for water, capacity 800 ml.;
- a pedal control;
- a transformer with supply cable;



TECHNICAL SPECIFICATIONS:

- Output power: 3W – 20W
- Vibration frequency: 28 ± 3 kHz
- Air/water input: 5 bar max.
- Power supply: 220-240V - 50/60Hz single-phase 150 mA
24V 50/60Hz 1.3A
- Dimensions of the control unit: 185x100x60 mm
