ULTRASCHALLGERÄT CTS ART PIEZO III mit Wasserversorgungssystem und 6 Spitzen

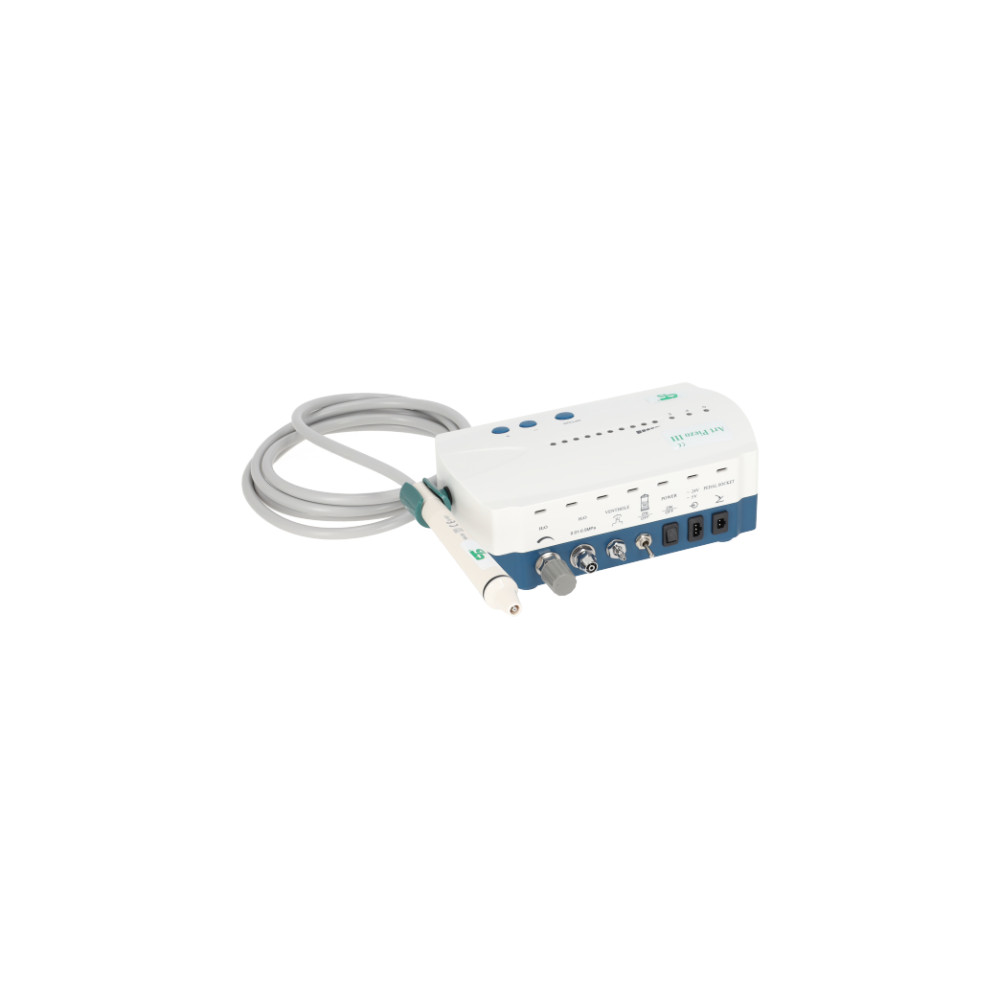

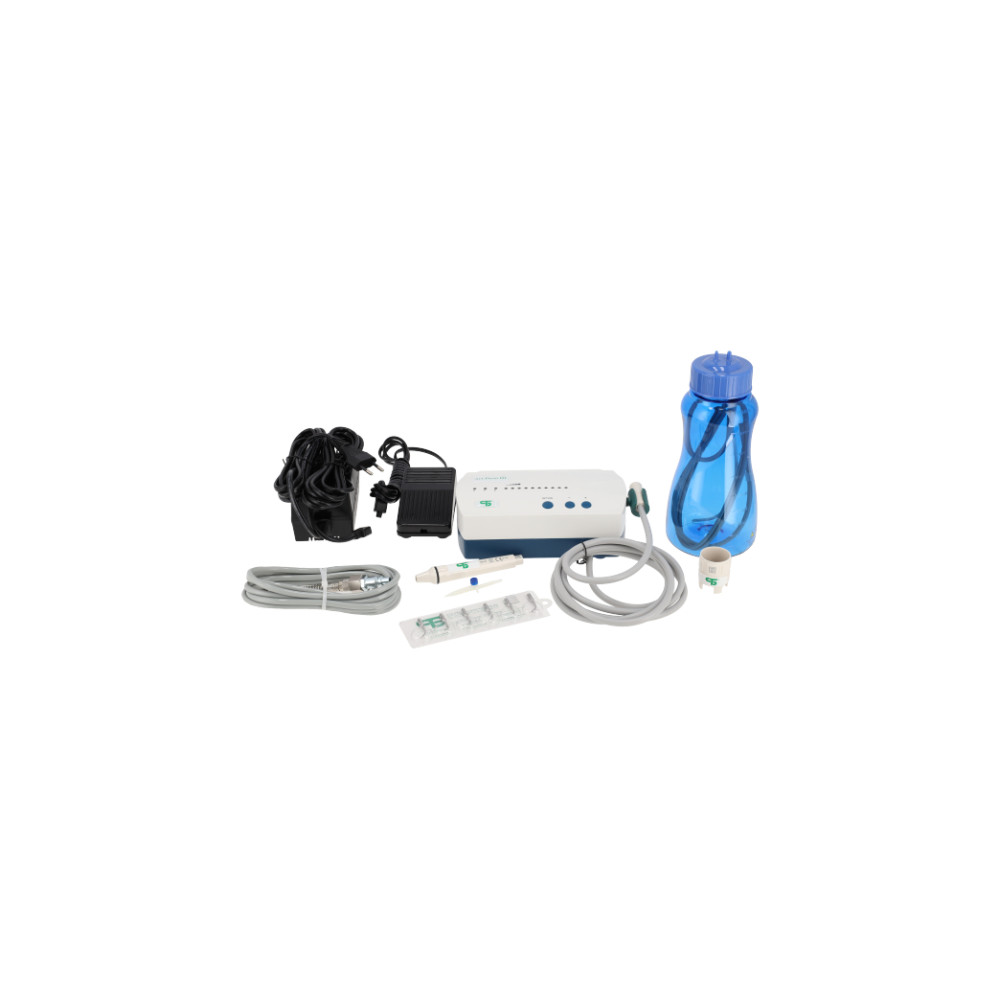

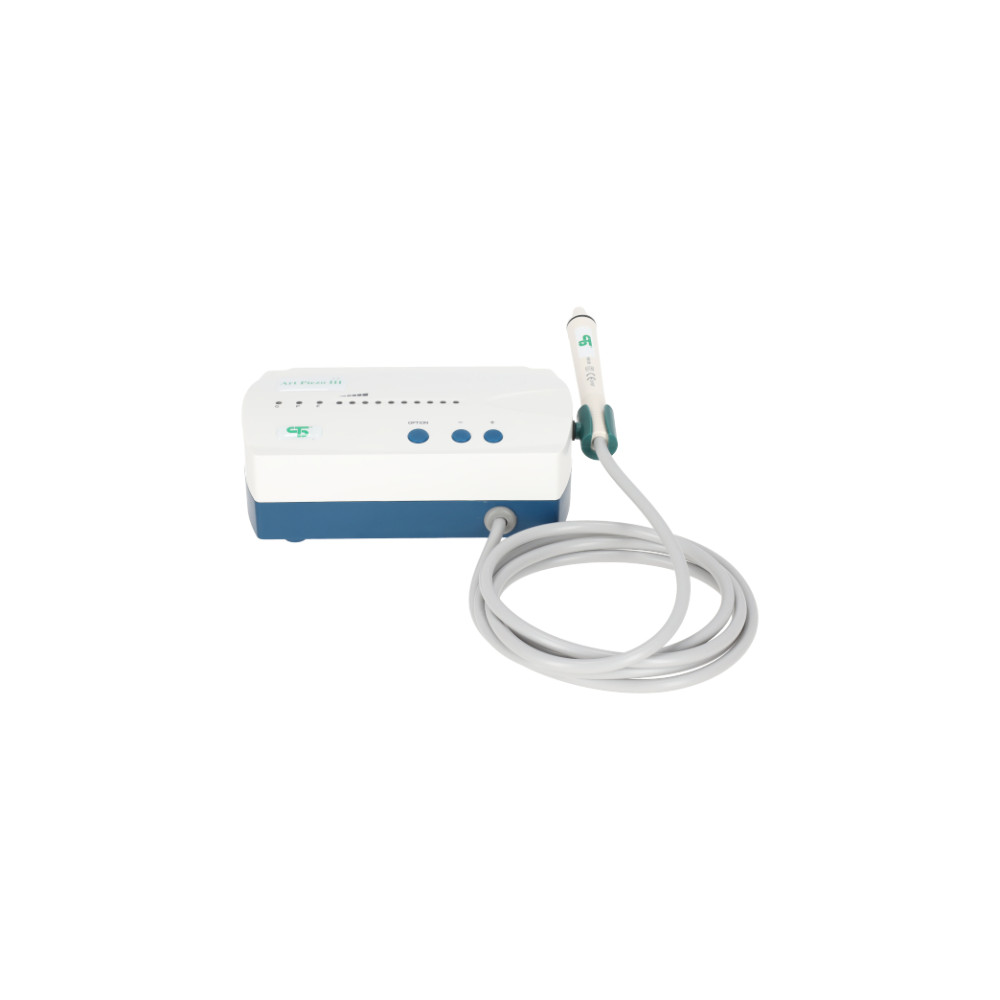

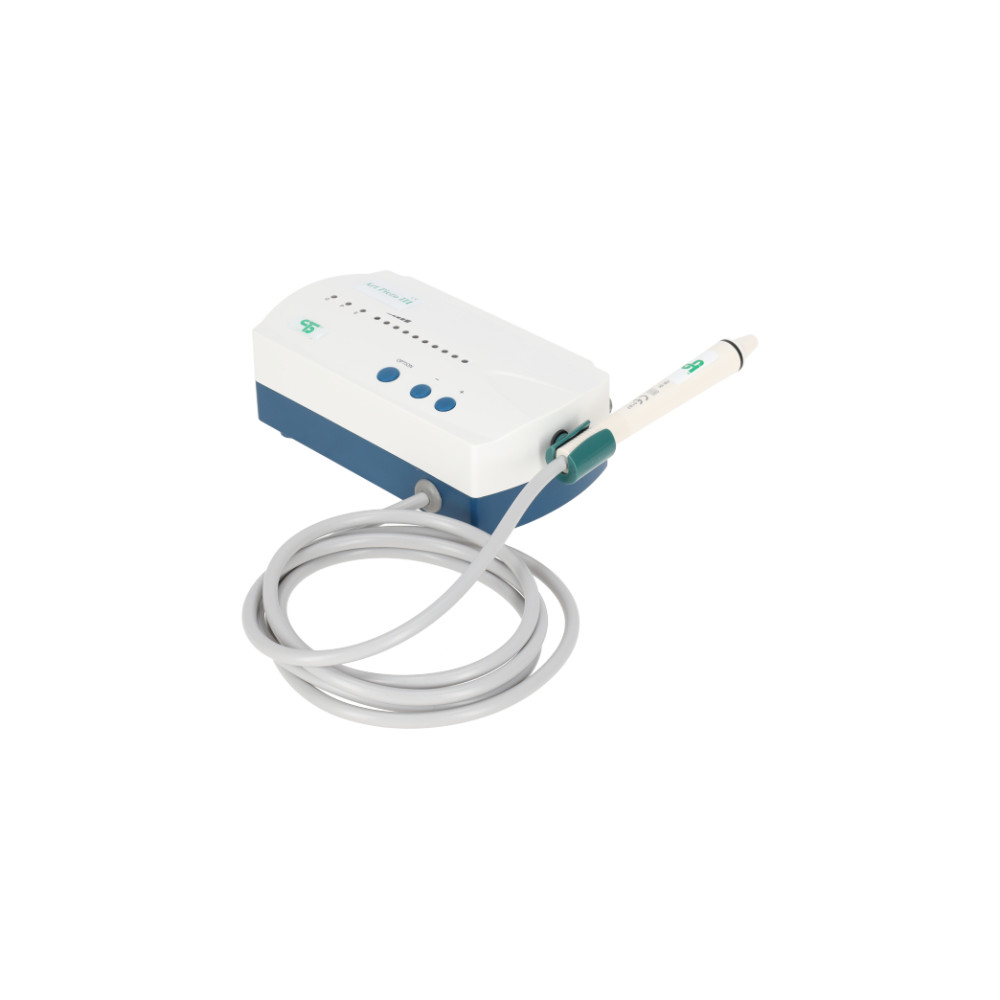

An ultrasonic piezoelectric device which can be cooled both by water and compressed air, according to the restorer’s needs. It is composed of:

- an electronic control unit with ultrasonic power regulator and capacity regulator of the cooling circuit, ON/OFF switches and activation switch of the automatic system of water supply, vibration mode selector depending on the tip series and power connections;

- a handpiece holder fitted on the control unit;

- an ultrasonic handpiece that can be divided, with 190 cm cable;

- a set of 6 tips in various forms, complete with a dynamometric key: no. 02 Fig. G1, no. 02 Fig. G2, no. 01 Fig. G4, no. 01 Fig. P1;

- a transparent tank for water, capacity 800 ml.;

- a pedal control;

- a transformer with supply cable;

- a small rigid case dimensions 447x412x107 mm



TECHNICAL SPECIFICATIONS



- Output power: 3W – 20W

- Vibration frequency: 28 ± 3 kHz

- Air/water input: 5 bar max.

- Power supply: 220-240V - 50/60Hz single-phase 150 mA

24V 50/60Hz 1.3A

- Dimensions of the control unit: 185x100x60 mm

- Total weight of case and accessories: 3.3 kg
