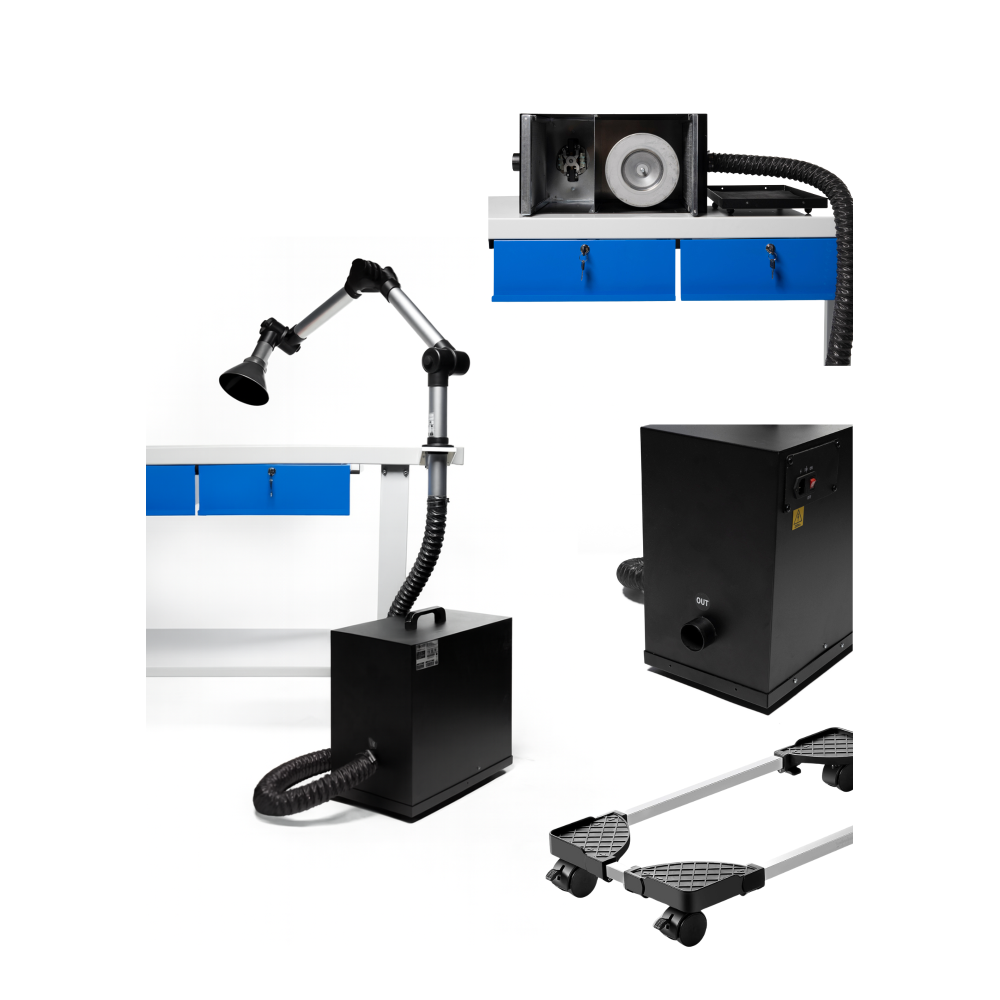

PORTABLE FILTERING-EXTRACTOR CTS 201

for localised extraction of fumes, solvent vapours and dust, generated by non-heavy processes with medium to low pollutant concentrations, with reintegration into the environment.

The unit consists of:

- black painted steel box, dim. 250x420x470 mm - weight 17 kg;

- self-supporting articulated arm in light aluminium alloy, diam. 50 mm - length 1000 mm, complete with conical nozzle in painted aluminium alloy, diam. 160 mm;

- painted steel bracket for flat fixing of the arm;

- 12 mm thick metal pre-filter - 25% efficiency (G2)

- cartridge filter diam. 125 mm - length 285 mm - efficiency 99.95% (H13)

- activated charcoal filter 30 mm thick - filtering efficiency 99.95% (H13)

- suction tube mod. T15 - diameter 50 mm - length 2000 mm

- expulsion terminal positioned on the back of the box (on request it is possible to supply ducting for external expulsion)

- motor power 1.1 kw - 230 V - 50 Hz

- suction capacity 250 mc/h

- suction capacity 110 mc/h

- noise level 72 dB (A)

- total weight approx. 25 kg
