LEUCHTE CTS ART LUX 50LW a 56 LED 5000°K e 6 LED U.V.

for studio and work site use, with LED (Light Emitting Diode) technology and High CRI (Colour Rendering Index) daylight and U.V. light, composed of:

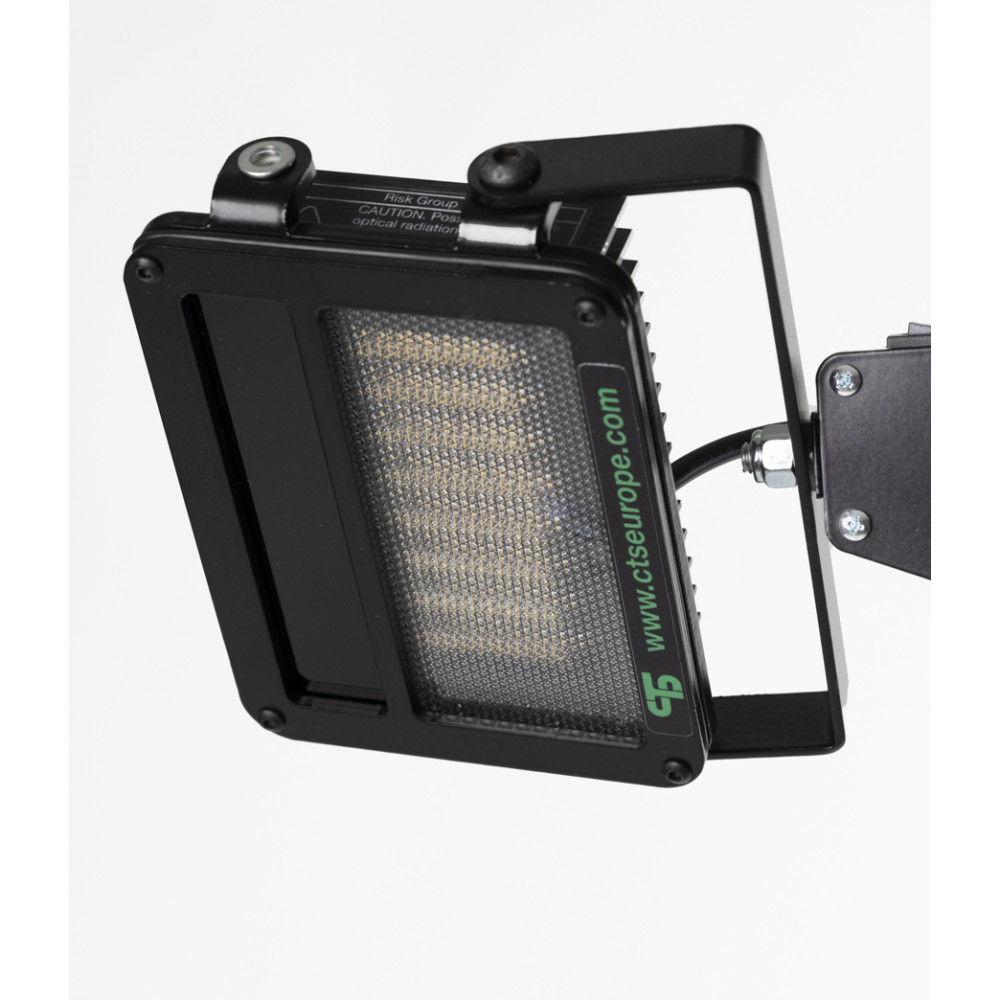

- an adjustable projector made of aluminium/steel with microprismatic and polymethyl methacrylate (PMMA) screen, size 120x90x35 mm;

- n. 56 LED with natural light 5000°K with semi-transparent polymethylmethacrylate (PMMA) microprismatic screen, dim. 120x90x35mm;

- n. 6 U.V LEDs with black screen, which completely cuts the emission of visible light above 400 nm; allows you to observe the works without residual light (violet) emitted by the UV LEDs. (studies on this special screen were conducted by CNR-IFAC of Florence).

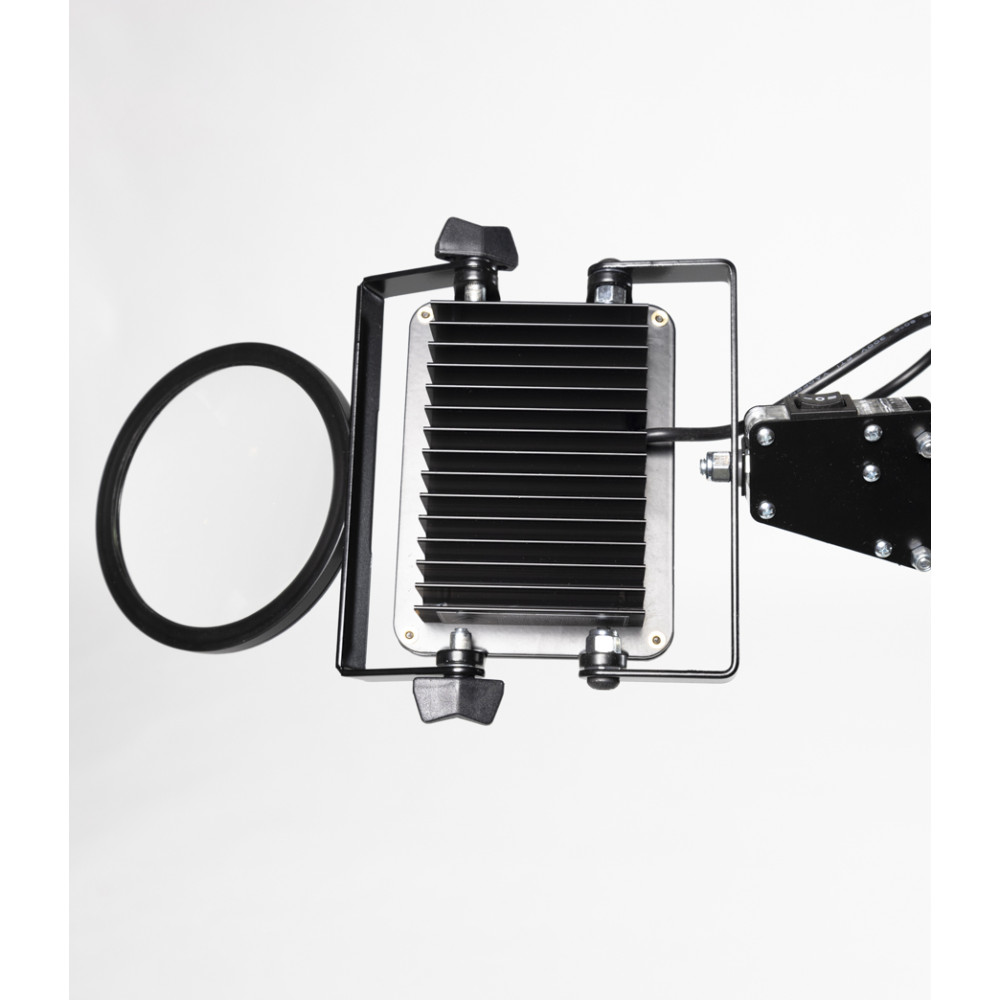

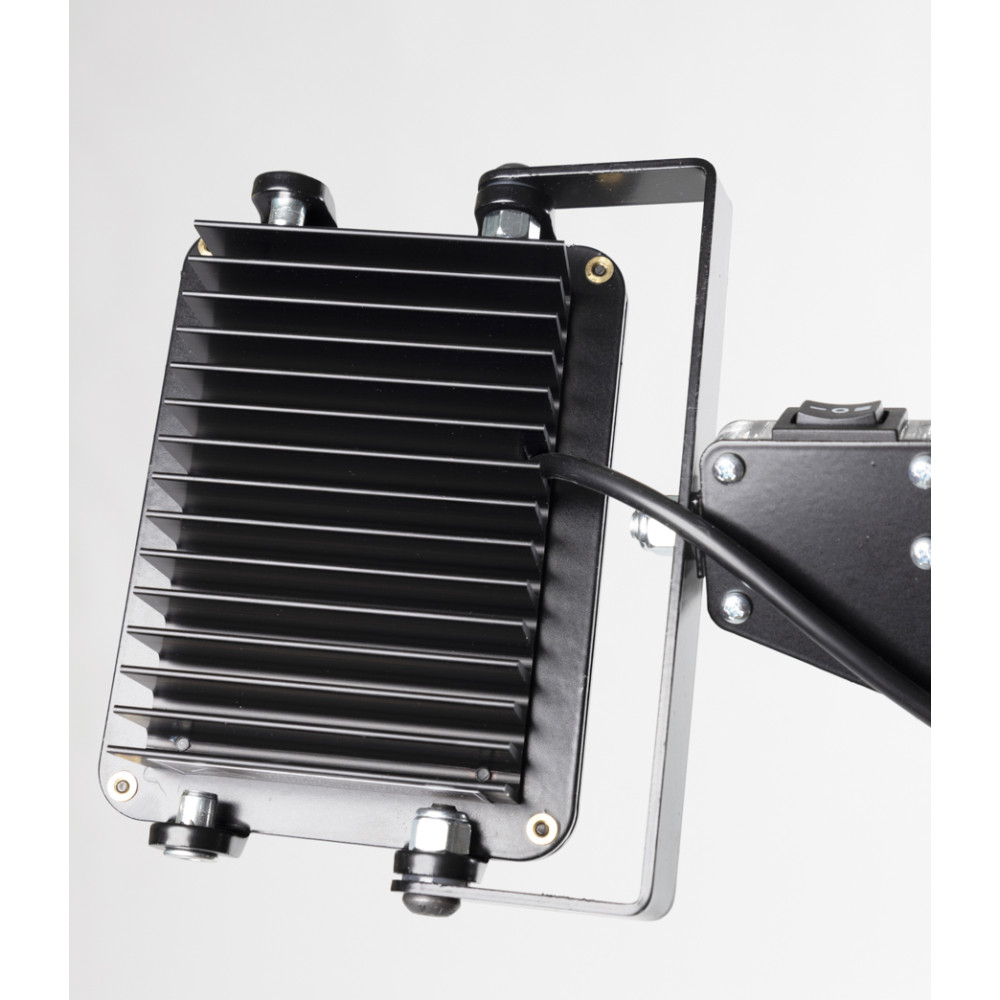

- a bracket for adjusting the inclination;

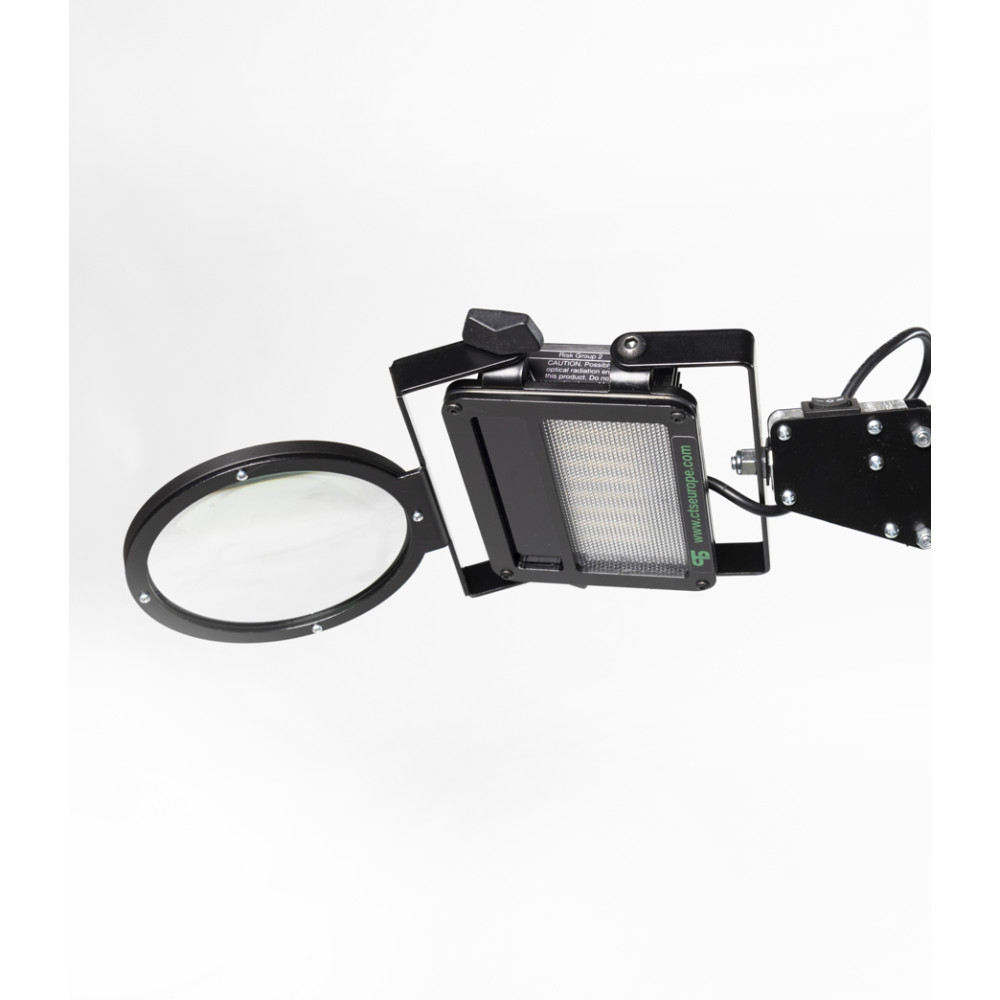

- ready for mounting the LENS CTS ART LUX L (optional);

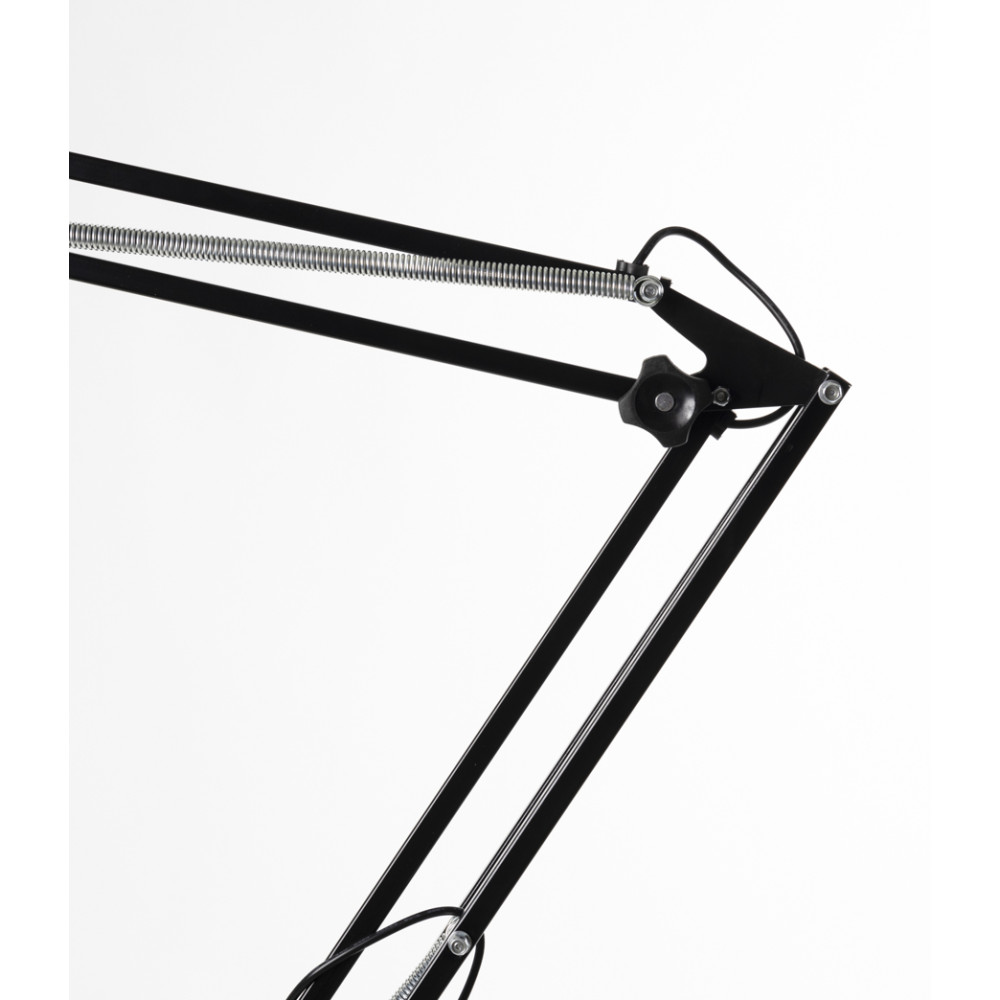

- flexible pantograph arm, 110 cm. totally length, with ON/OFF button with 2 positions (daylight and U.V. light)

- a power supply unit 240V – 50-60Hz with low voltage output 18-24 V and 1.5 m cable;

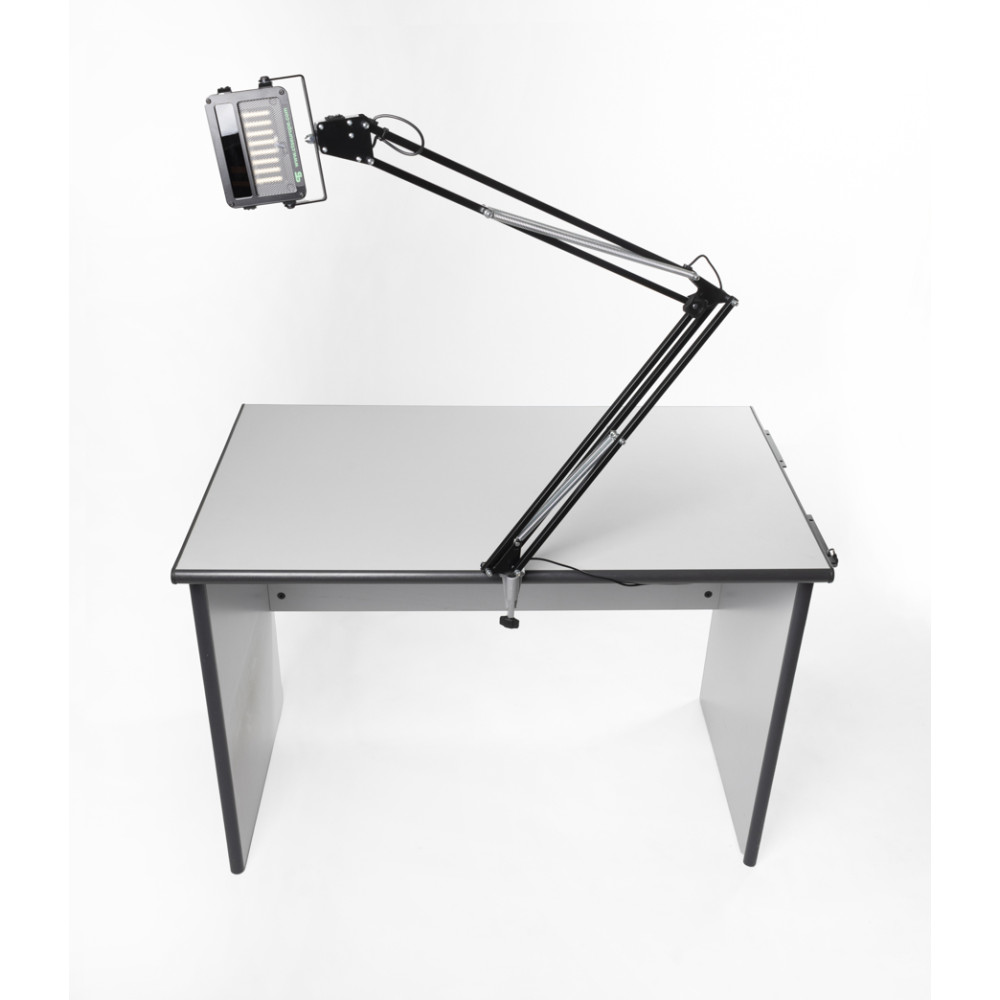

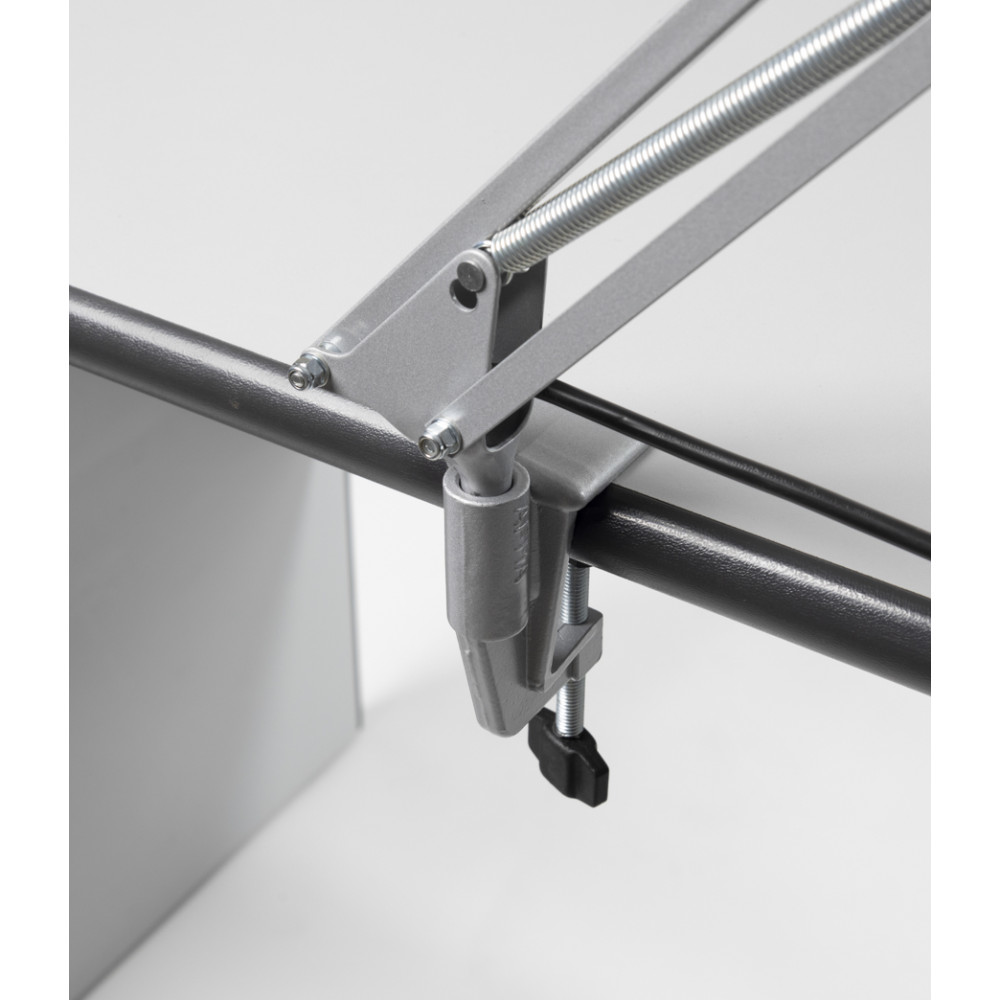

- clamp joint for bench fixing.

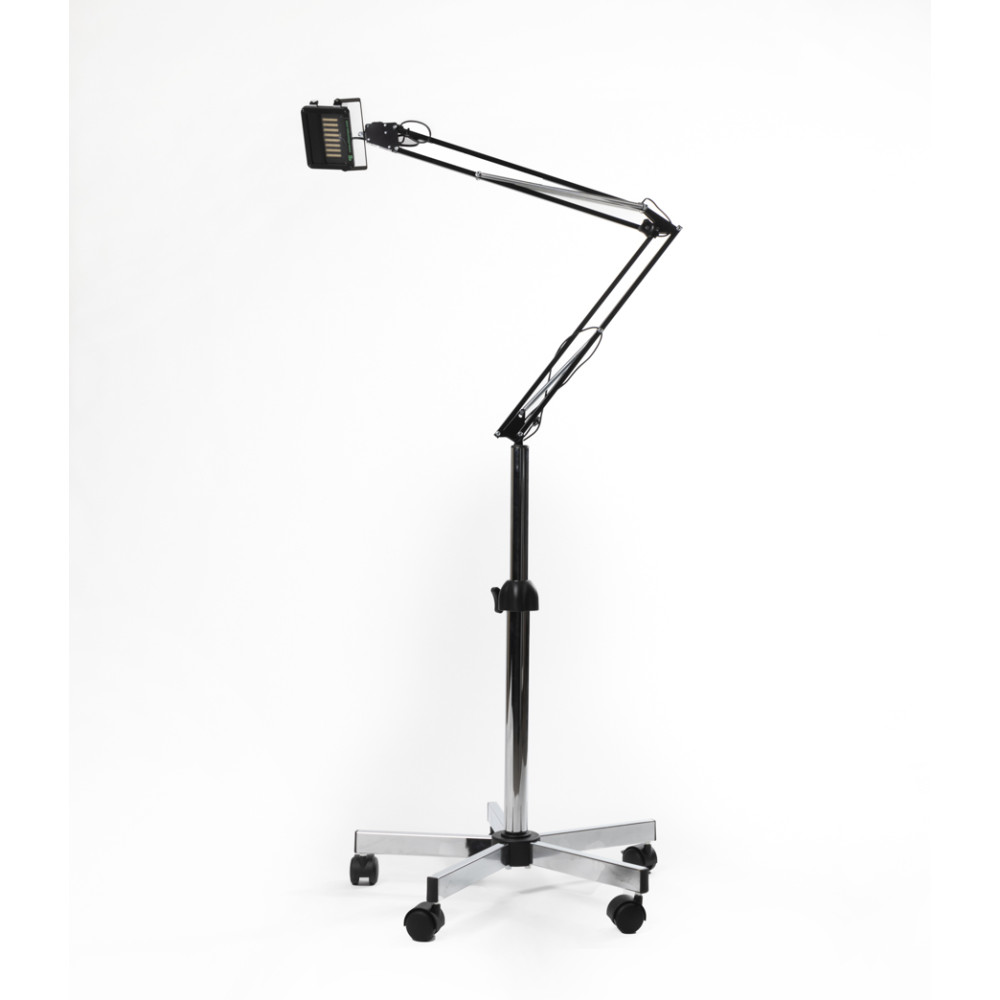

The luminaire CTS ART LUX 50LW can be fixed on the TROLLEY CTS Y



PROPERTIES



- Absence of UV radiations (only for daylight)

- Absence of IR radiations (only for daylight)

- Very long life (ca. 100.000 hours)

- Low energy consumption



TECHNICAL SPECIFICATIONS



- Power: 12+12W

- Colour temperature: 5000°K (daylight LED)

- Colour Rendering Index (CRI): >97% (on 15 colour levels)

- Wavelenght: 365 nm (U.V. LED)

- Luminous flux: 1800 Lumen (daylight LED)

4200 mW (U.V. light LED)

- Flux output cone: 60°

- Weight: 2 kg
