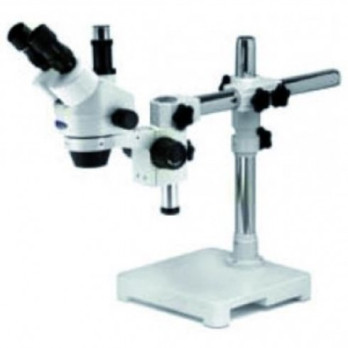

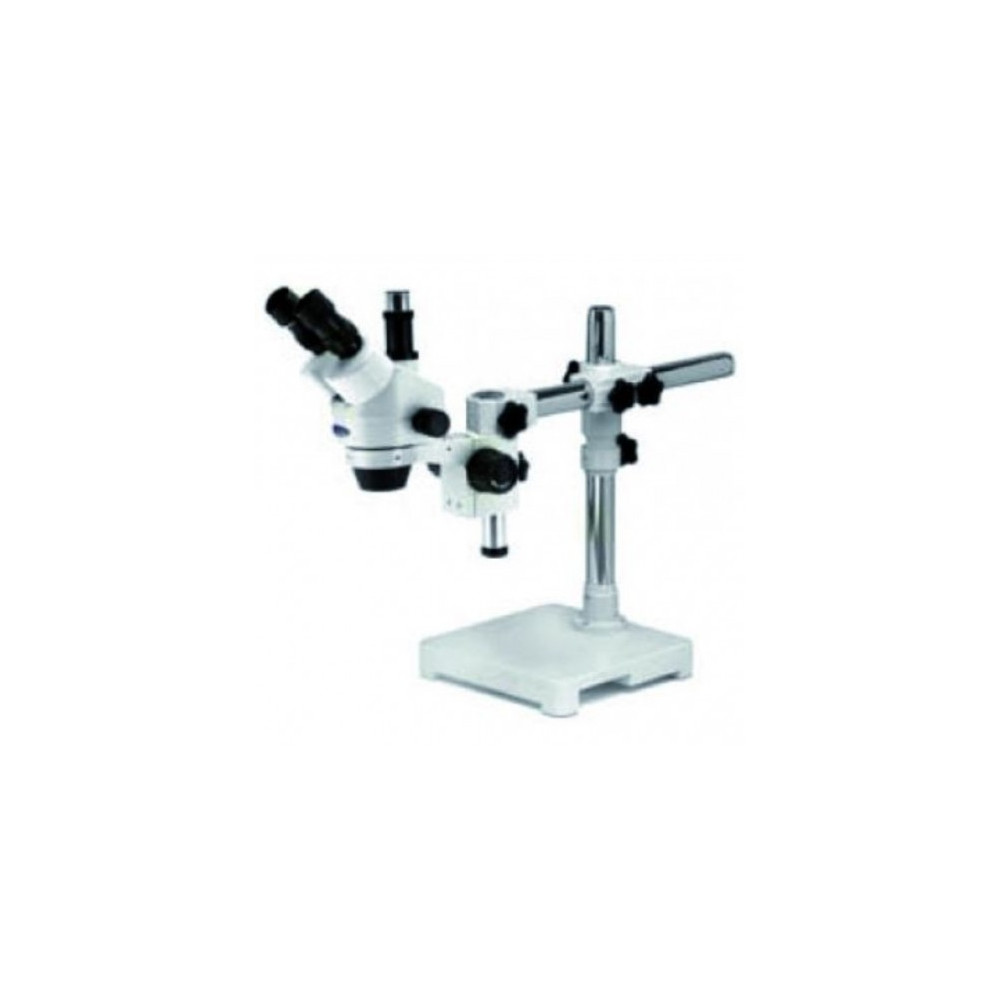

STEREOSKOPISCHES MIKROSKOP MOD. SZM-4 Triokular

it consists of:

- "SZX-T" triocular optical head, inclined at 45° and rotatable 360°, with zoom lens from 0.67x to 4.5x; working distance 100 mm; interpupillary adjustment 51-75 mm; dioptric adjustment +/- 5 diopters; third eyepiece tube allowing connection to cameras (via special accessories) or cameras;

- focusing device;

- table-top cantilever stand, with vertical column ø 32 x h. 435 mm, horizontal arm length 415 mm and base 230x230 mm;

- pair of 10x eyepieces complete with eyecups, field index 21 mm, field of view 32.84 - 4.89 mm;

- dust cover

- approx weight 17.6 kg.
