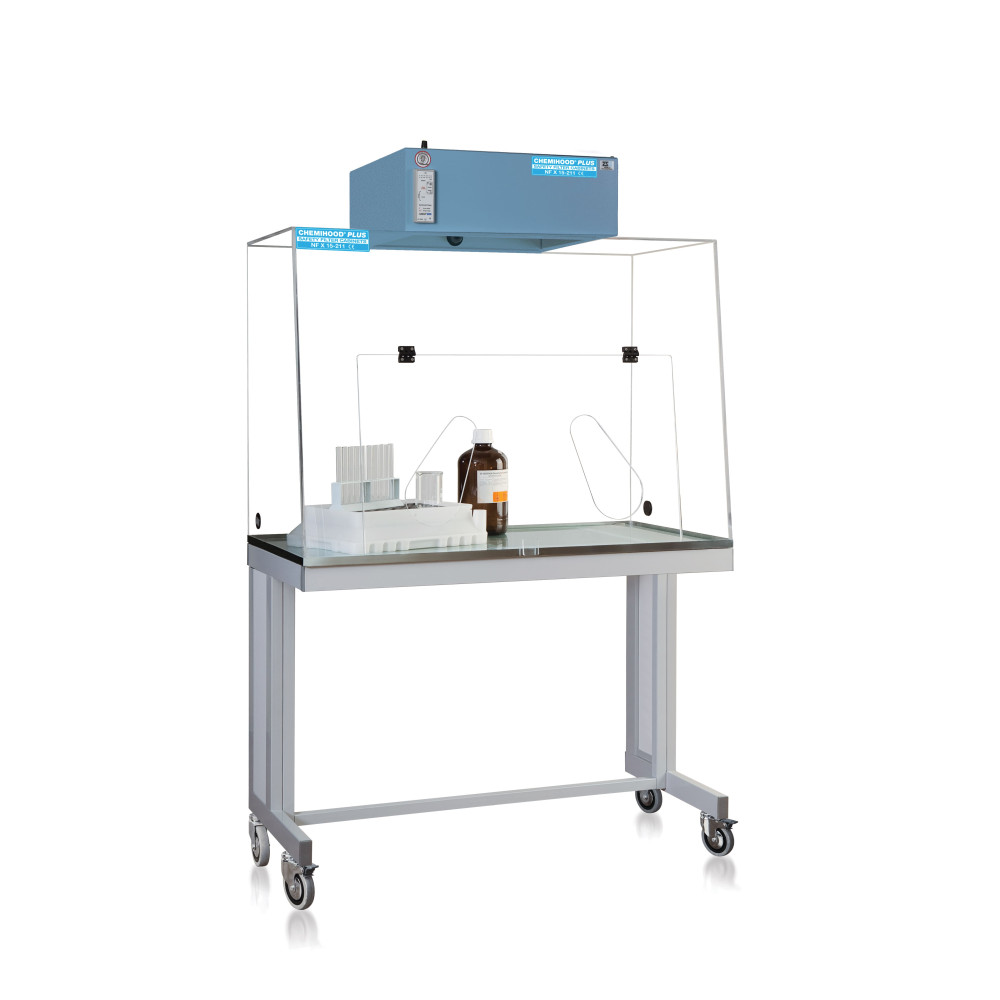

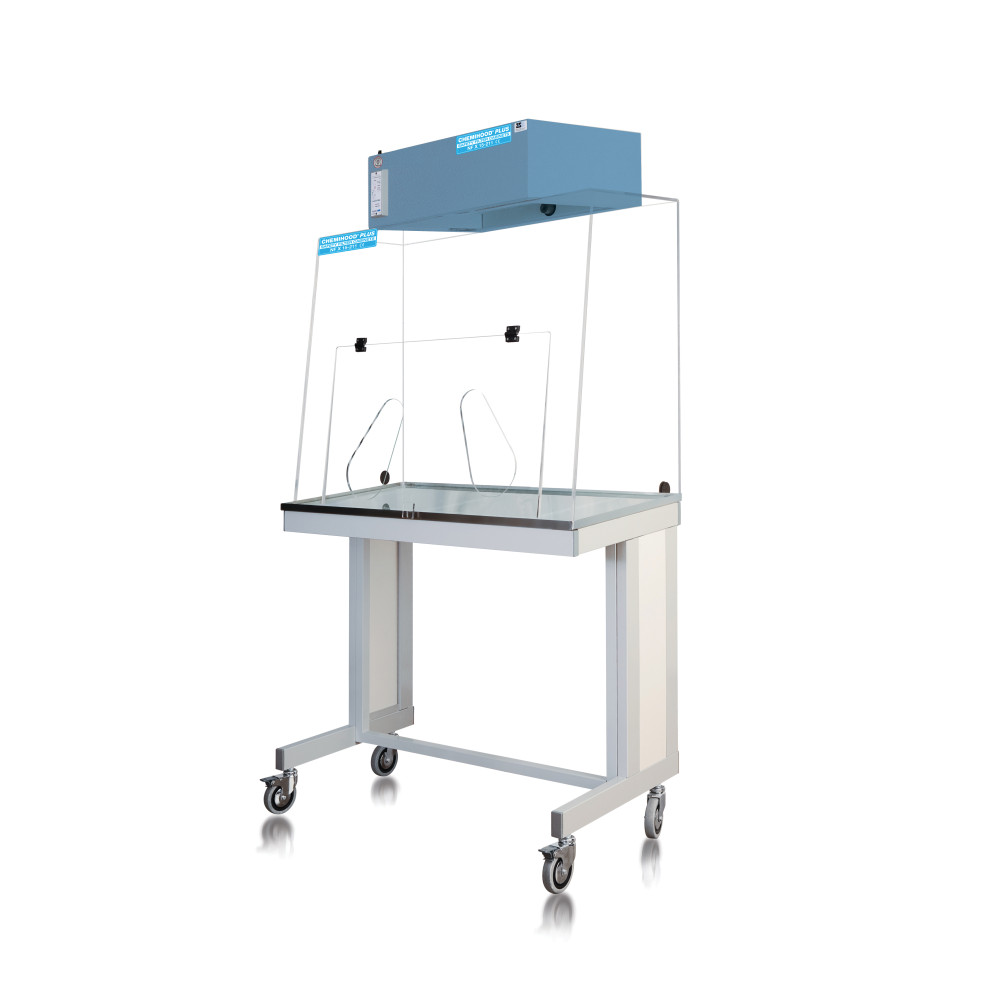

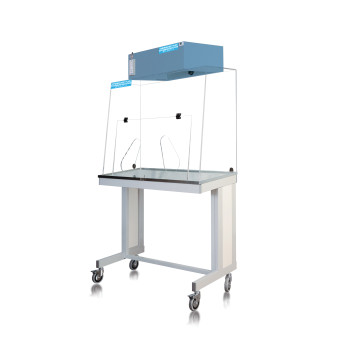

FUME HOOD MOD. CHEMIHOOD 60 PLUS WITH MOLECULAR FILTRATION

The MOLECULAR FILTRATION system allows the extraction of harmful vapours without the need for external connections and without any problems related to air compensation within the room.

Equipped with application-specific filters, they comply with the world's most demanding standards: NORMA AFNOR NFX 15-211.

CHEMIHOOD PLUS hoods, class II enclosure, have been tested according to NFX 15-211 by an independent laboratory and certified according to the AJA Europe supervisory office.

The hood is made of ‘optical’ methacrylate with a thickness of 8 mm which offers an optimal and bright view without distortion.



HOOD FEATURES



- External dimensions: 600x600x1000+900 mm (WxDxH)

- Internal dimensions: 584x584x800 mm (WxDxH)

- Inclined front side (7°)

- ergonomic position at the workplace

- Front panel can be fully lifted and locked for easier access when handling bulky equipment, chemicals or for cleaning operations; opening size 440x480 mm

- Two covers to allow arms to pass through for easy handling ensuring maximum safety

- Electrical cables and fluids can be fed into the enclosure through the cable ducts on the sides

- Stainless steel retention tray for recovery of liquids in case of accidental spillage

- Sliding trolley on wheels, dim. 605x605x865 (WxDxH) mm

- Weight: approx. 60 kg



FEATURES OF THE CFN (Molecular Filtration) RECYCLING VENTILATION SYSTEM



- Electrogalvanised 10/10 mm steel frame, coated in blue epoxy paint dim. 570x500x250 mm (WxDxH)

- Axial fan/flow rate: 100/250 m3/h

- Voltage/frequency: 220 volts/50Hz, IP44 protection

- Acoustic level 45dB

- Acoustic and visual alarm

- Conforms to ISO 3744

- CCl4 retention capacity on filter 7000 g (in accordance with the efficiency level defined by AFNORNFX 15-211) or maximum rejection of 50% of the average exposure value of the product

- ON/OFF switch with indicator lights for correct operation

- filter saturation indicator with visual and acoustic LED indicator, measurement of air velocity passing through the activated charcoal filter

- Weight: approx. 10 kg



(Replacement of the filter 1/2 times a year is recommended)
