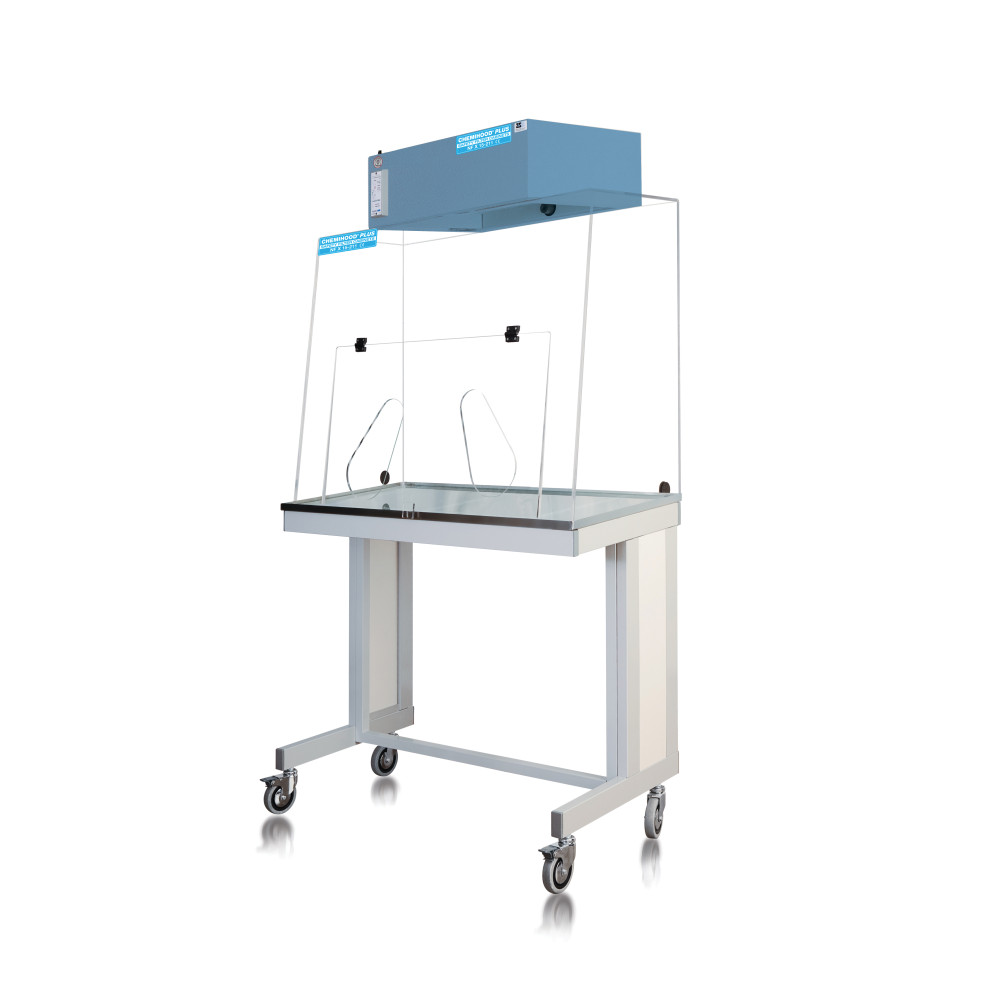

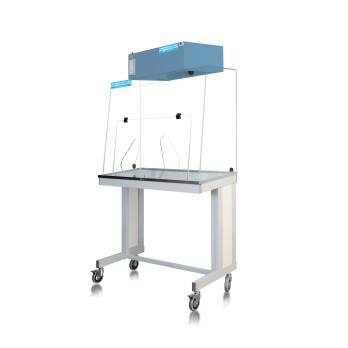

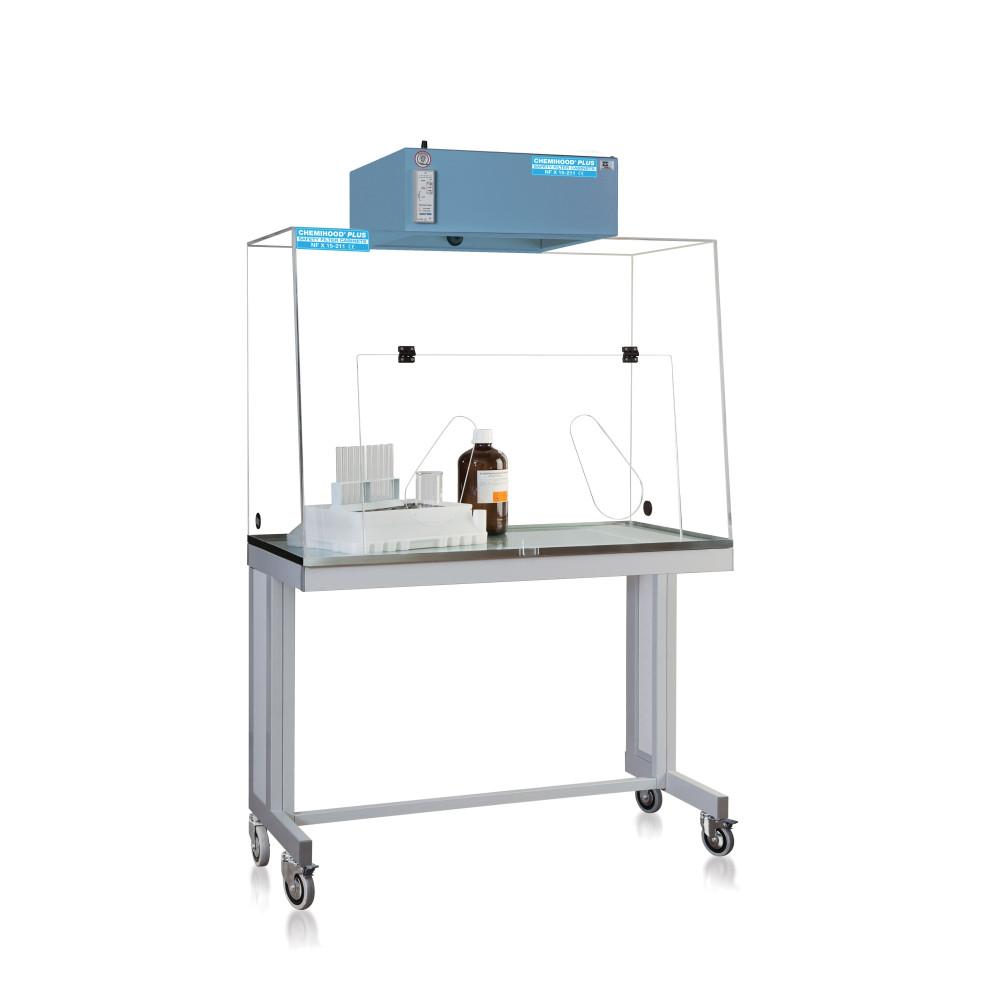

FUME HOOD MOD. CHEMIHOOD 120 PLUS WITH MOLECULAR FILTRATION

The MOLECULAR FILTRATION system enables the extraction of harmful vapors without the need for external connections and without any problems related to air compensation inside the room.

Equipped with dedicated filters for specific applications, they comply with the world's most demanding standards: NORM AFNOR NFX 15-211.

CHEMIHOOD PLUS hoods, class II enclosure, have been tested according to NFX 15-211 standard by an independent laboratory and certified according to AJA Europe supervisory office.

Cooker hood made of “optical” methacrylate with a thickness of 8 mm that provides an optimal and bright view without distortion.



HOOD FEATURES



- External dimensions: 1135x600x1000+900 mm (WxDxH)

- Internal dimensions: 1119x584x800 mm (WxDxH)

- Front side inclined (7°)

- Ergonomic position at the workplace

- Front panel can be fully raised and locked, so that access is easier in case of bulky equipment, chemicals or for cleaning operations; opening dim. 800x480 mm

- Two covers to allow arms to pass through for easy handling ensuring maximum safety

- Ability to insert electrical cables and fluids inside the enclosure through cable ducts on the sides

- Stainless steel retention tray for fluid recovery in case of accidental spillage

- Sliding cart on wheels, dim. 1140x605x865 (WxDxH) mm

- Weight: approx. 80 kg



FEATURES OF CFN (Molecular Filtration) RECYCLING VENTILATION SYSTEM.



- Electrogalvanized 10/10 mm steel frame, blue epoxy coating dim. 570x500x250 mm (WxDxH)

- Axial fan/flow rate: 100/250 m3/h

- Voltage/frequency: 220 volts/50Hz, protection IP44

- Sound level 45dB

- Acoustic and visual alarm

- Conforms to ISO 3744 standard

- CCl4 retention capacity on filter 7000 g (in accordance with the efficiency level defined by AFNORNFX standard 15-211) or the maximum rejection of 50% of the average exposure value of the product.

- ON/OFF switch with indicator lights for proper operation

- Filter saturation indicator with LED visual and audible indicator, measurement of air velocity passing through activated carbon filter

- Weight: approx. 10 kg



(Replacement of the filter 1/2 times a year is recommended)
