"EASY MAINTENANCE" INSTALLATION KIT FOR CEILING-MOUNTED INSECTRON® TRAPS

The EASY MAINTENANCE KIT’s shuttle-lifting system is an innovative solution that simplifies the installation and management of Insectron® insect traps. Thanks to the manual winch, the trap—secured to a steel cable—can be raised to the desired height for operation or maintenance. This system allows a single operator to perform all necessary tasks without additional equipment such as lifts, ladders, or safety harnesses. The EASY MAINTENANCE KIT helps optimize resources, reduce intervention time, and improve workplace safety, while minimizing the risk of damage to the insect traps.



Important note:

The EASY MAINTENANCE KIT is compatible with all Insectron® insect traps designed for ceiling installation (models Insectron® 200 M, 300 M, 400 M).

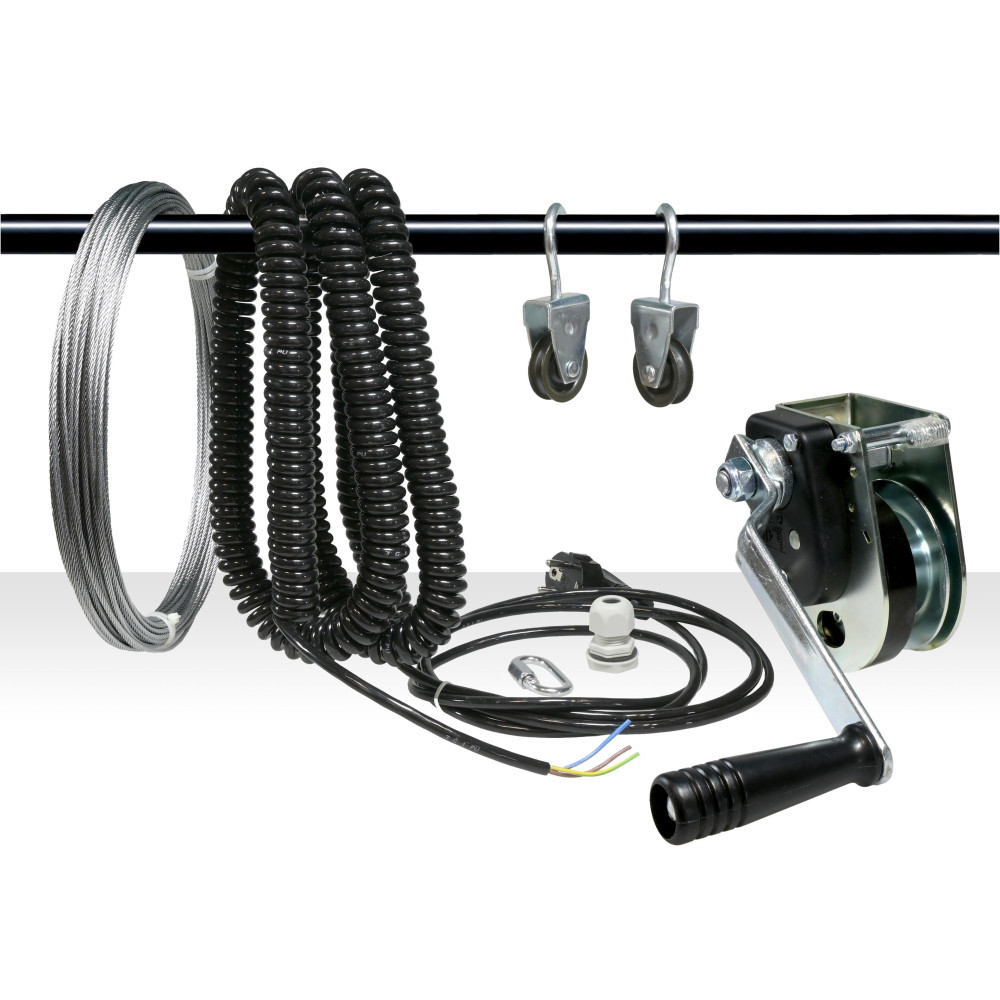

Kit contents:

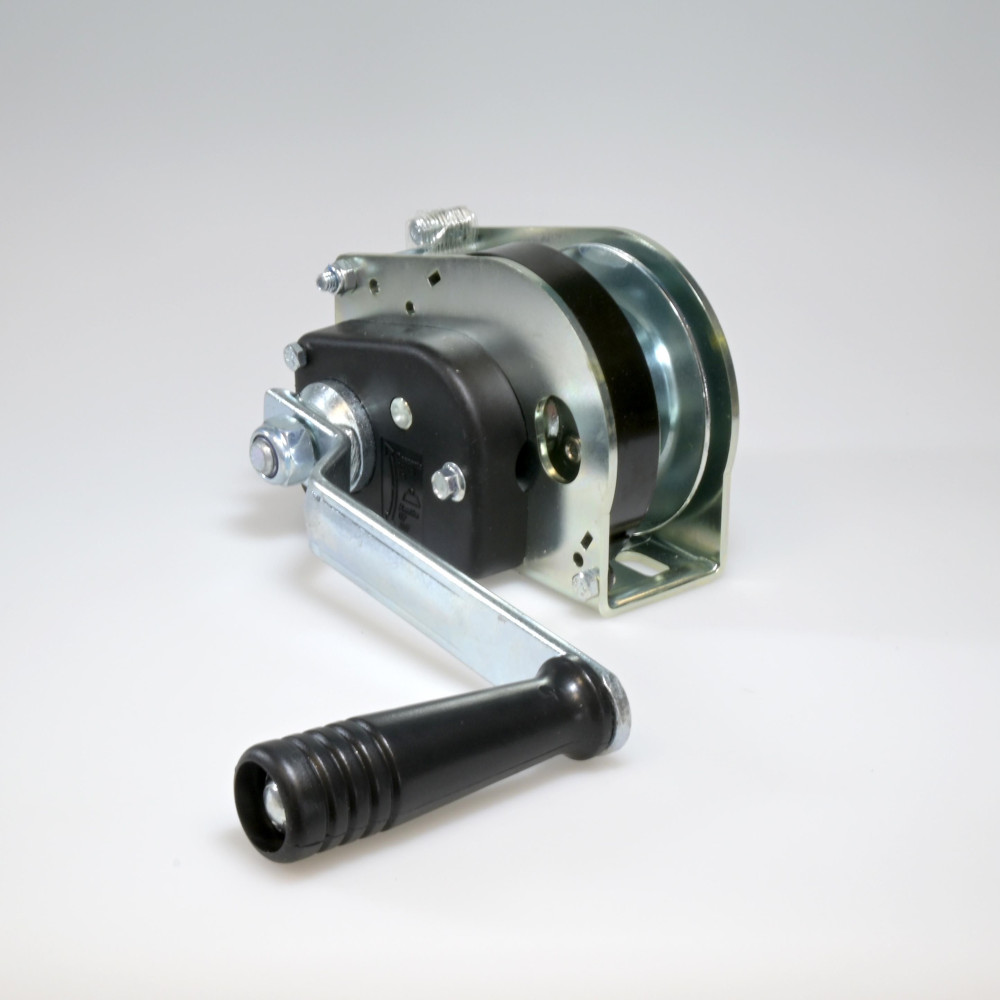

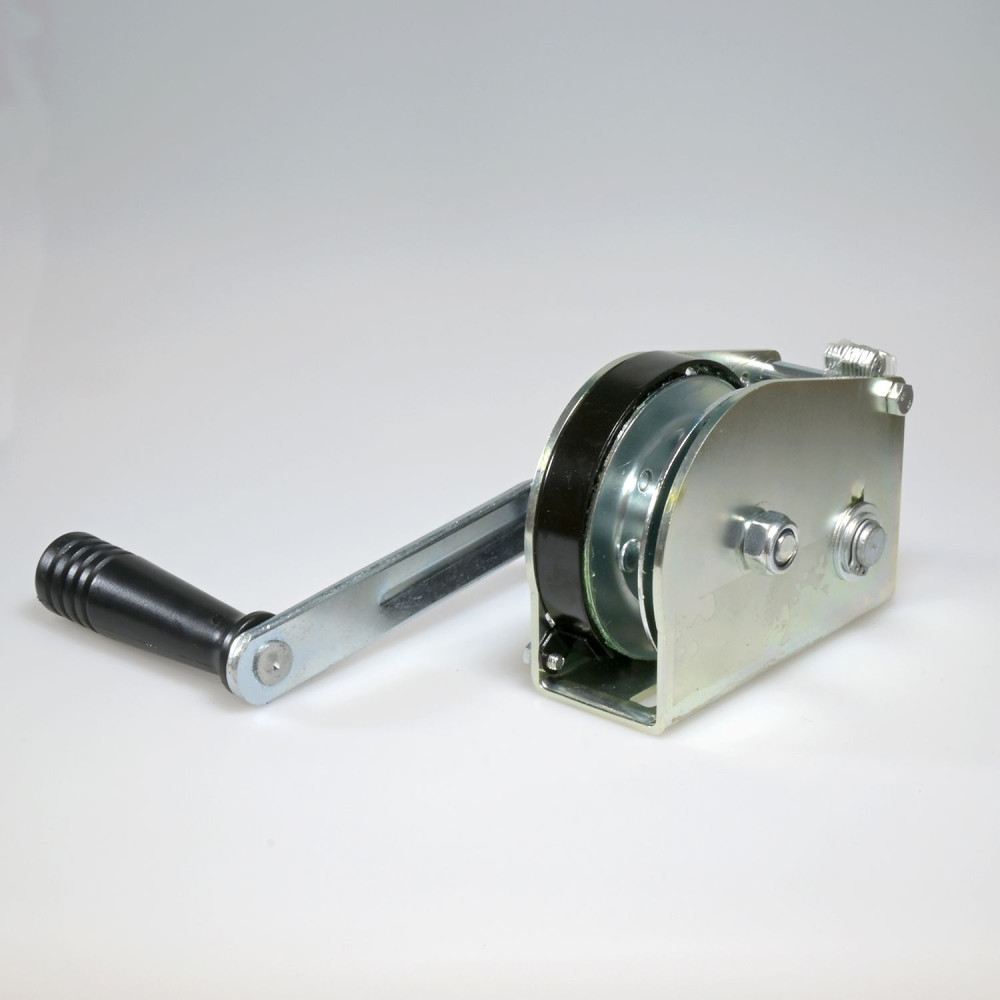

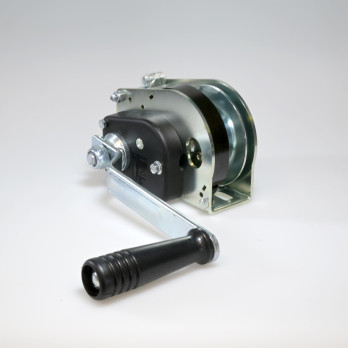

- 1 x manual winch with automatic brake

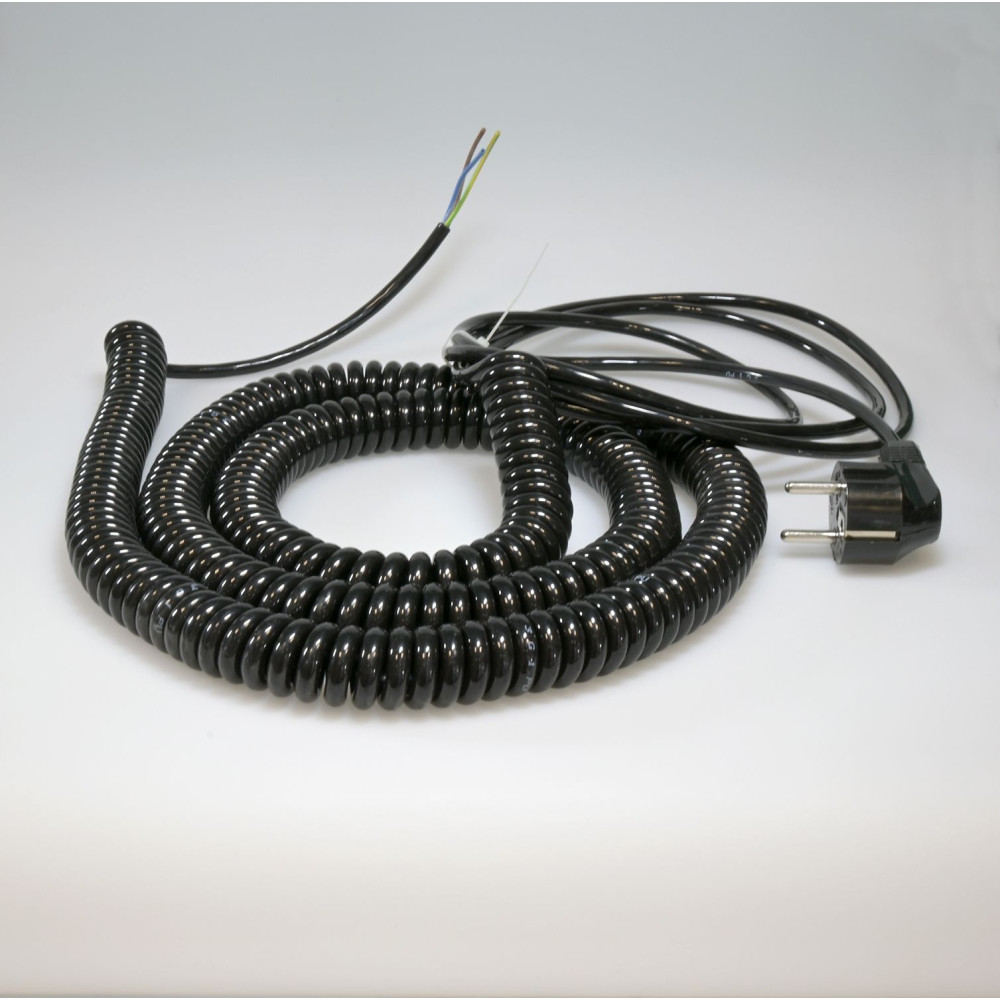

- 1 x retractable power cable (length: 2 m, extended: 10 m)

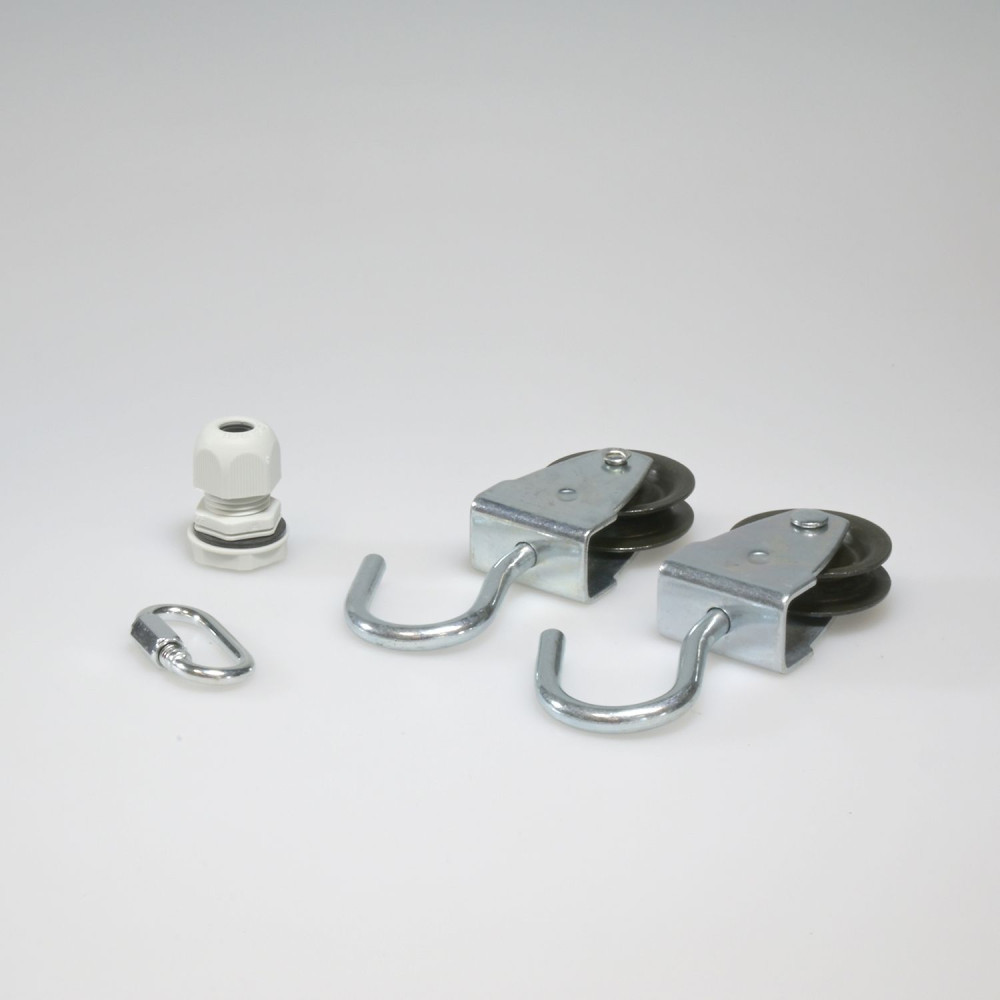

- 2 x pulleys

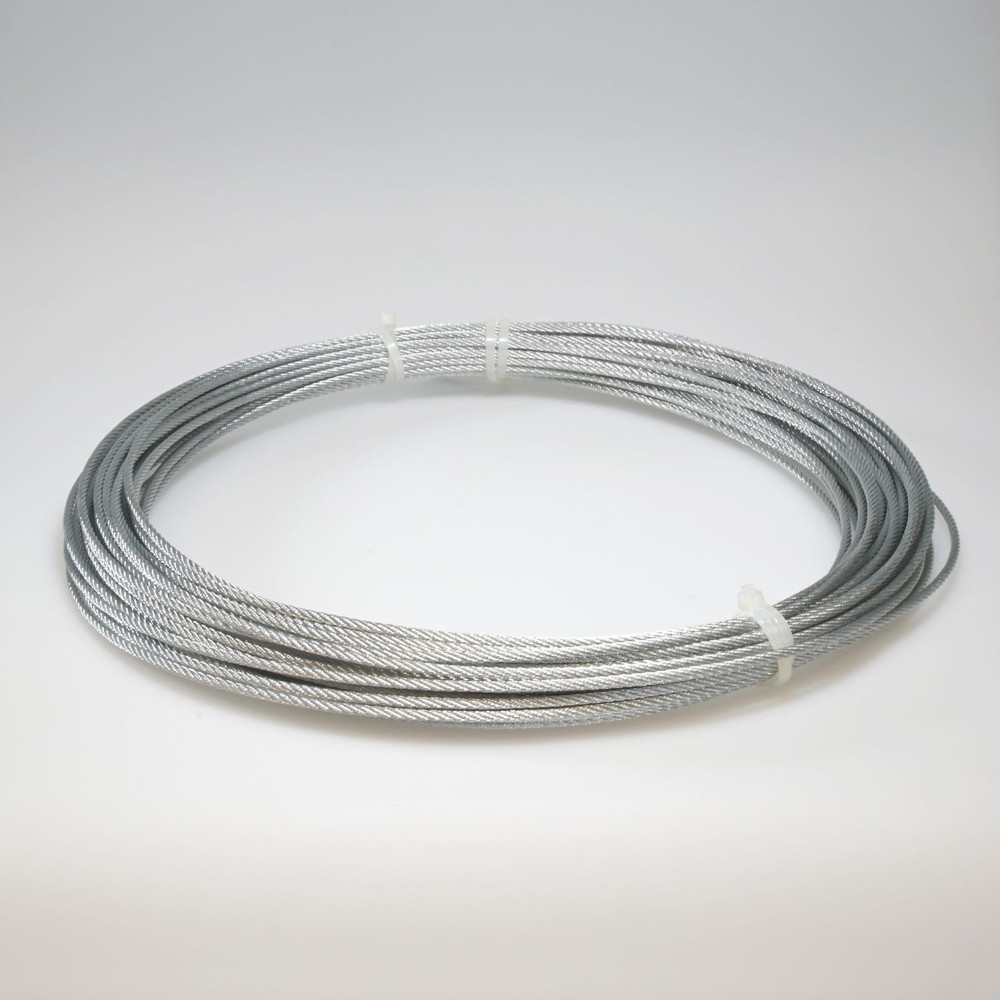

- 1 x 30 m steel cable

- 1 x carabiner

- 1 x cable clamp



Specifications:

- Maximum weight: 30 kg

- Minimum weight: 10 kg*

- Maximum height: 8 m

- Warranty: 1 year



*Note: If the insect trap weighs less than 10 kg, a counterweight must be used.
