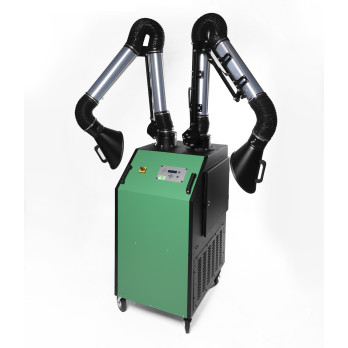

MOBILE FILTERING EXTRACTOR CTS 2B PLUS with two extractor arms

for dusts, vapours of solvents, acids, bases, etc. with output through flexible hose to the exterior environment. It is composed of:

- an electric fan with reverse blade (bent forward) centrifugal wheel, power 1.5 Hp - 1.1 kW - 2800 rpm - 230V, 50Hz single-phase, protection degree IP 55, statically balanced. Potential extraction rate 1100 m³/h;

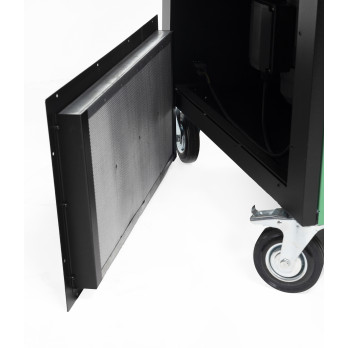

- sliding soundproof box on wheels, two swivel with brakes, with moving handles, interior compartments for housing the powder filtering section and the gas filtering section, with expulsion connection; structure in epoxy-coated steel sheet, colour grey RAL 7032 and green RAL 6024 (front panel). Dim. 600x800xh1190 mm. Overall dim. 660x800xh1190 mm. Weight approx. 95 kg. Noise level 60 dB(A);

- main switch;

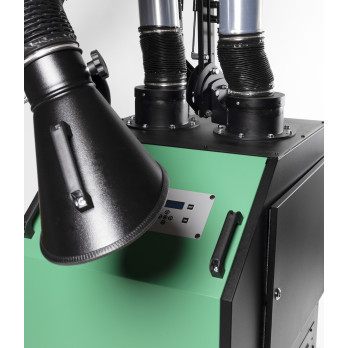

- electronic panel with ON / OFF buttons, hour counter and filter maintenance / replacement signal

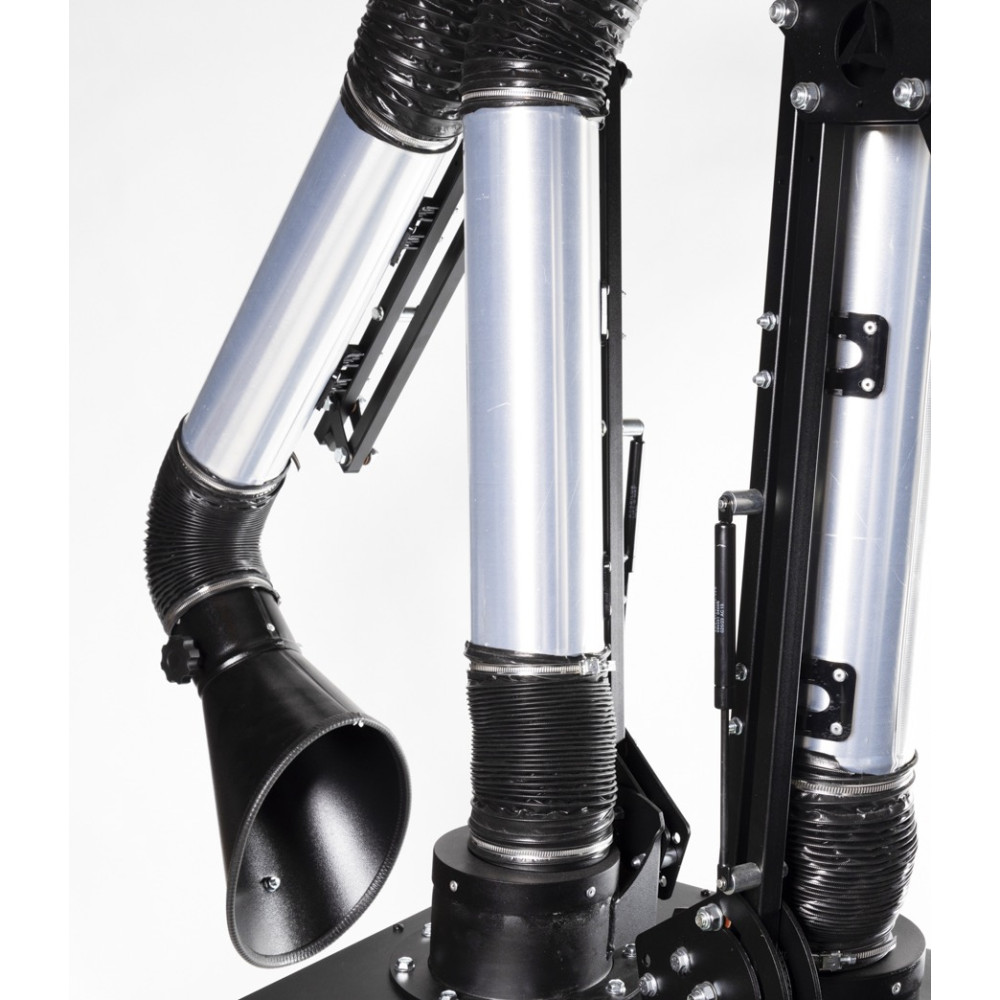

- n. 02 self-supporting extractor arms mod. ARMOTECH, ø 125 mm - 2 m long; external pantograph structure, with pistons, in anodized steel-aluminum, rigid pre-coated aluminum tube, couplings in flexible hose and a small painted plate hood with handle, adjustment shutter and inner protective net;

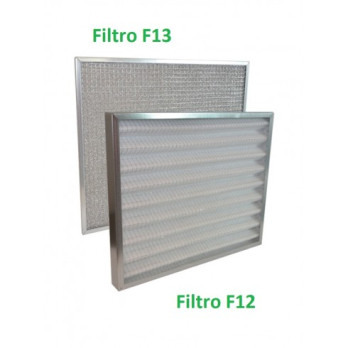

- n. 01 metallic prefilter series F13, dim. 490x592x9 mm, in aluminium fibre, G2 class, filtration efficiency 25% (CE EN 779);

- n. 01 filter series F12 for first stage dusts, dim. 490x592x98 mm, in corrugated polyester fibre, G4 class, filtration efficiency 70% (CE EN 779);

- n. 01 absolute filter series F18 for second stage dusts, dim. 490x592x292 mm, with 4 rigid pockets in fibreglass, H12 class, filtration efficiency 99.5% (CE EN 1822);

- n. 01 activated charcoal filter series FCA, dim. 295x650x80 mm, composed of a support frame in galvanized plate with a protective net, containing 10 kg of activated charcoal in small cylinders, with the following specifications:

> size of the small cylinders ø 3.5-4 mm, 5-10 mm long;

> density 490-520 kg/m³;

> inner active surface 1000±50 m²/g;

> pore total volume: 0.9 cm³/g;

- 10 m flexible duct ø 150 mm with output port-hole with anti-bird protective net;

- total weight: 125 kg approx.
