MOBILER FILTERABZUG CTS 2B PLUS mit zwei Abzugsarmen

for dusts, vapours of solvents, acids, bases, etc. with output through flexible hose to the exterior environment. It is composed of:

- an electric fan with reverse blade (bent forward) centrifugal wheel, power 1.5 Hp - 1.1 kW - 2800 rpm - 230V, 50Hz single-phase, protection degree IP 55, statically balanced. Potential extraction rate 1100 m³/h;

- sliding soundproof box on wheels, two swivel with brakes, with moving handles, interior compartments for housing the powder filtering section and the gas filtering section, with expulsion connection; structure in epoxy-coated steel sheet, colour grey RAL 7032 and green RAL 6024 (front panel). Dim. 600x800xh1190 mm. Overall dim. 660x800xh1190 mm. Weight approx. 95 kg. Noise level 60 dB(A);

- main switch;

- electronic panel with ON / OFF buttons, hour counter and filter maintenance / replacement signal

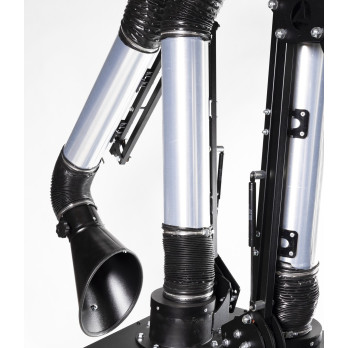

- n. 02 self-supporting extractor arms mod. ARMOTECH, ø 125 mm - 2 m long; external pantograph structure, with pistons, in anodized steel-aluminum, rigid pre-coated aluminum tube, couplings in flexible hose and a small painted plate hood with handle, adjustment shutter and inner protective net;

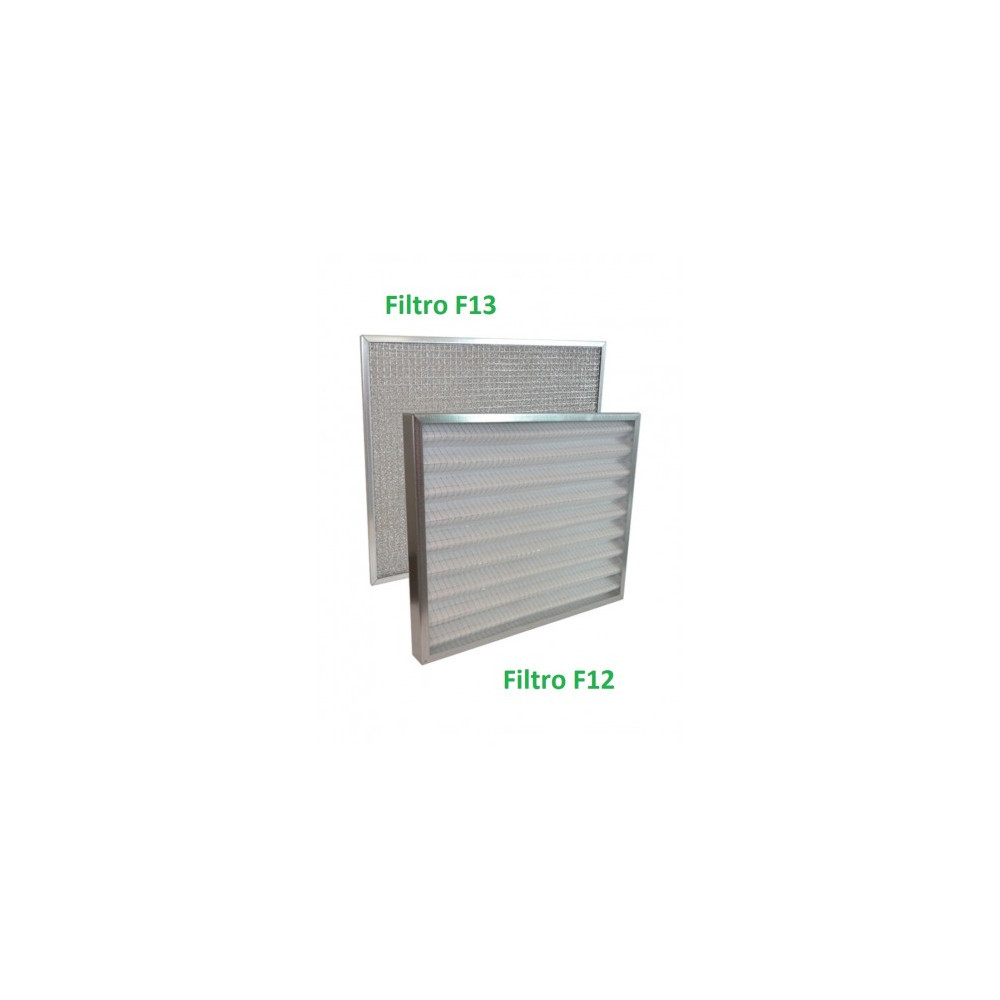

- n. 01 metallic prefilter series F13, dim. 490x592x9 mm, in aluminium fibre, G2 class, filtration efficiency 25% (CE EN 779);

- n. 01 filter series F12 for first stage dusts, dim. 490x592x98 mm, in corrugated polyester fibre, G4 class, filtration efficiency 70% (CE EN 779);

- n. 01 absolute filter series F18 for second stage dusts, dim. 490x592x292 mm, with 4 rigid pockets in fibreglass, H12 class, filtration efficiency 99.5% (CE EN 1822);

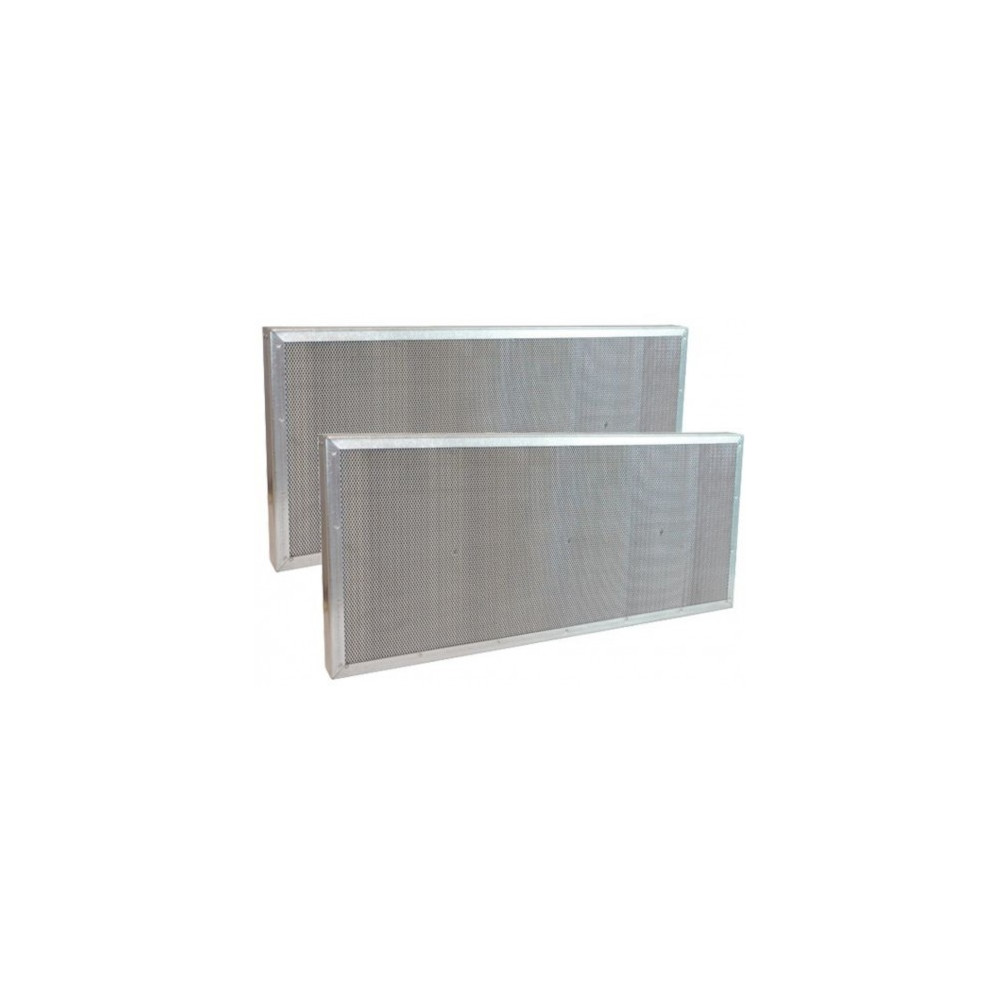

- n. 01 activated charcoal filter series FCA, dim. 295x650x80 mm, composed of a support frame in galvanized plate with a protective net, containing 10 kg of activated charcoal in small cylinders, with the following specifications:

> size of the small cylinders ø 3.5-4 mm, 5-10 mm long;

> density 490-520 kg/m³;

> inner active surface 1000±50 m²/g;

> pore total volume: 0.9 cm³/g;

- 10 m flexible duct ø 150 mm with output port-hole with anti-bird protective net;

- total weight: 125 kg approx.
