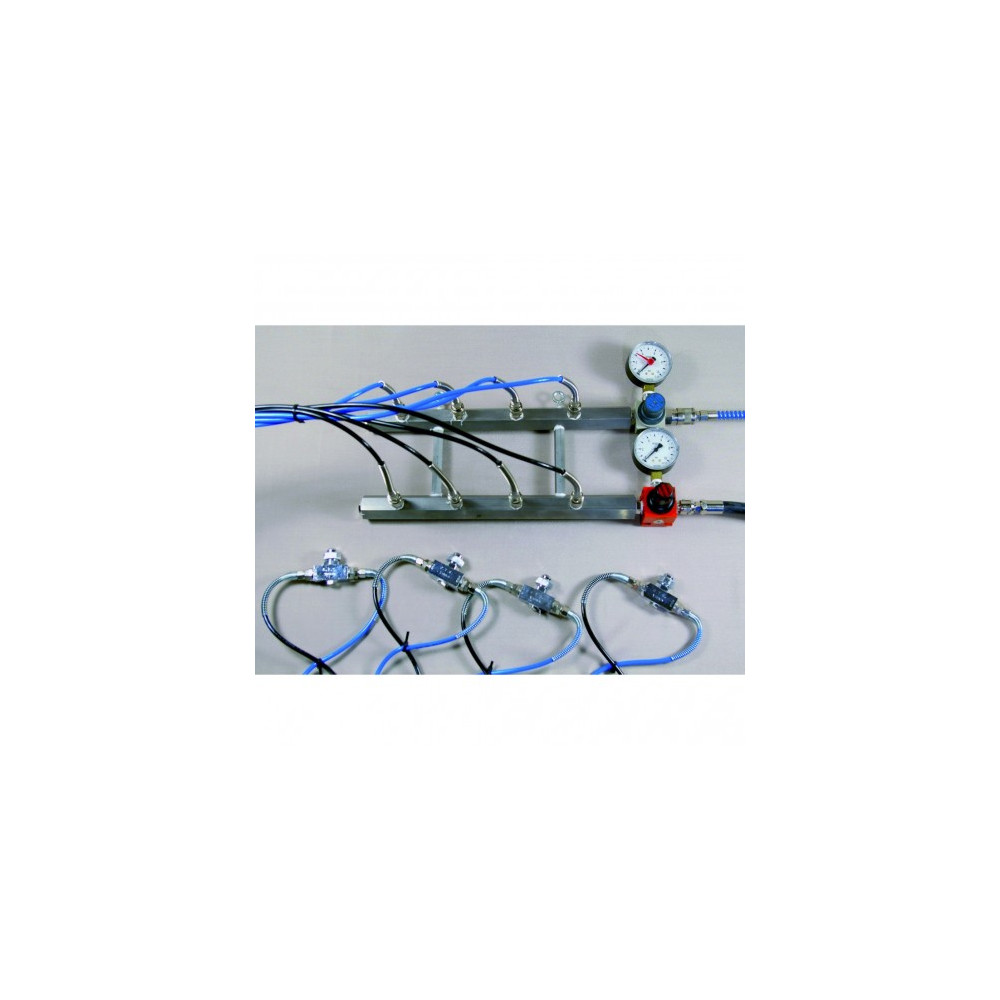

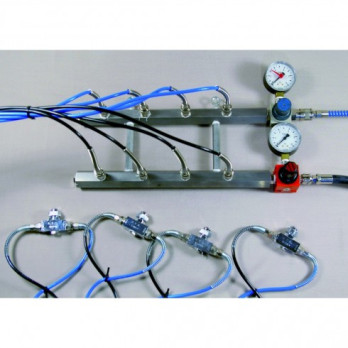

INSTALACION DE ATOMIZACION CTS

"It is composed of:

- 1 atomizing group with air and water inlet, for four nozzles

- 4 nozzle casings, in chromium-plated brass with double thickness

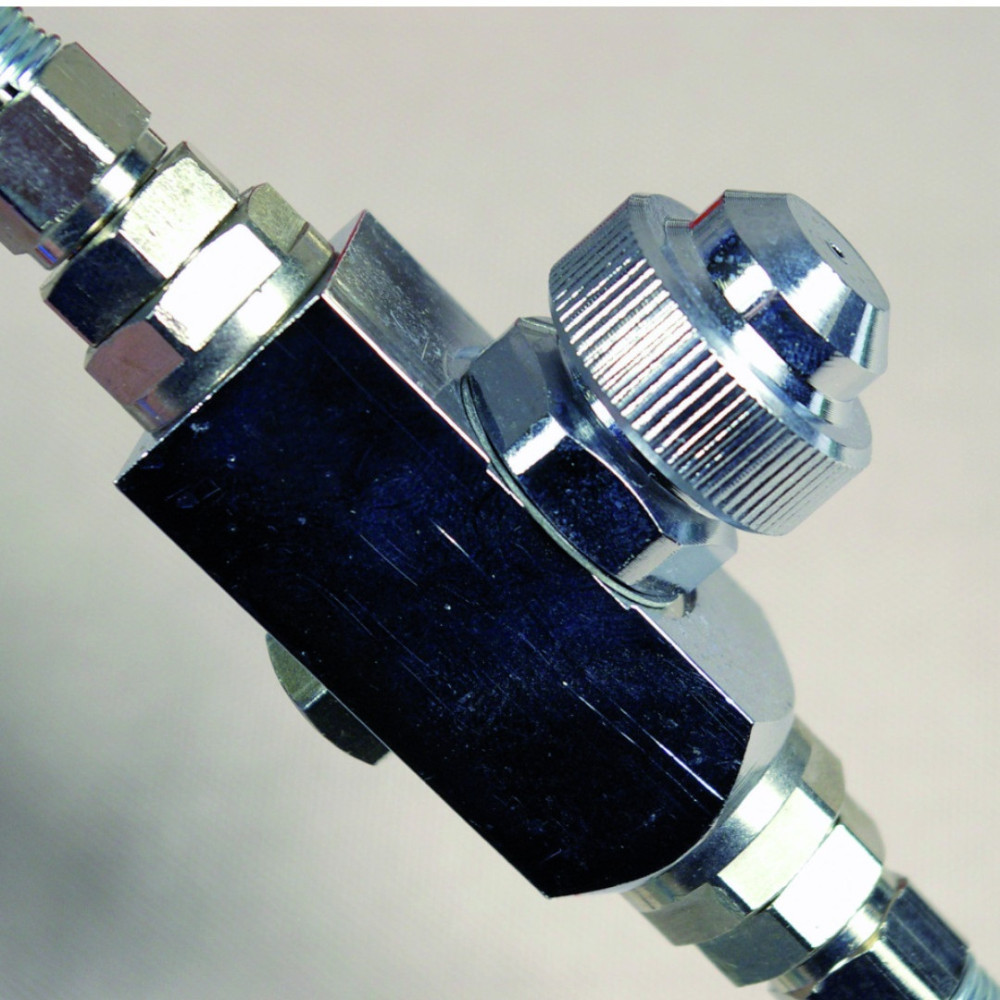

- 4 medium nozzles with caps, in chromium-plated brass with double thickness

- 1 water pressure regulator with manometer

- 1 air pressure regulator with manometer

- 1 silicone aerosol spray to protect metallic parts

- various connection hose fittings





TECHNICAL SPECIFICATIONS:

Air supply pressure: from 2.5 to 3.5 bar

Feedwater pressure: from 1 to 2 bar

Pressure regulation: manual

Water consumption: 40 - 45 l/hour

Air consumption: 250 - 300 l/min.

Weight: 7 kg"
