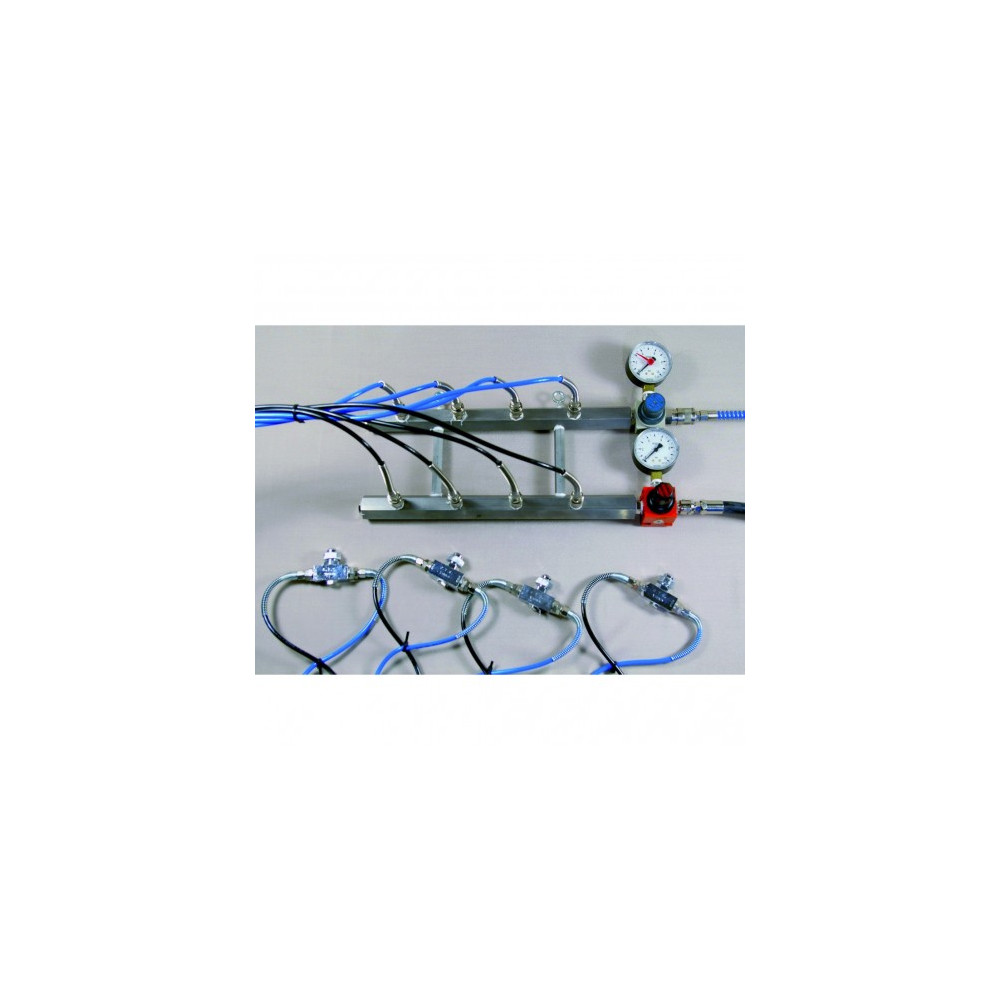

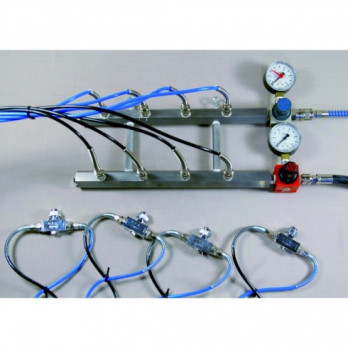

ZERSTÄUBUNGSANLAGE CTS

"It is composed of:
- 1 atomizing group with air and water inlet, for four nozzles

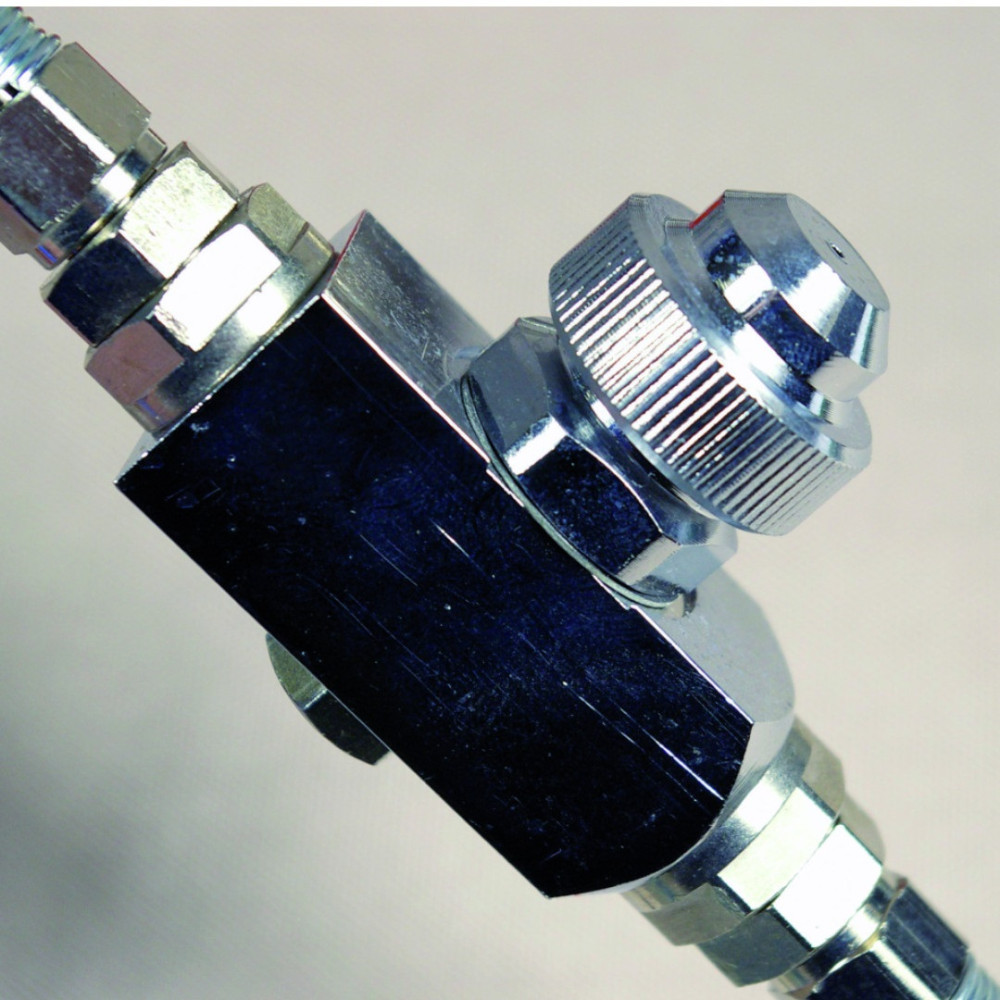

- 4 nozzle casings, in chromium-plated brass with double thickness
- 4 medium nozzles with caps, in chromium-plated brass with double thickness
- 1 water pressure regulator with manometer
- 1 air pressure regulator with manometer
- 1 silicone aerosol spray to protect metallic parts
- various connection hose fittings

TECHNICAL SPECIFICATIONS:
Air supply pressure: from 2.5 to 3.5 bar
Feedwater pressure: from 1 to 2 bar
Pressure regulation: manual
Water consumption: 40 - 45 l/hour
Air consumption: 250 - 300 l/min.
Weight: 7 kg"
