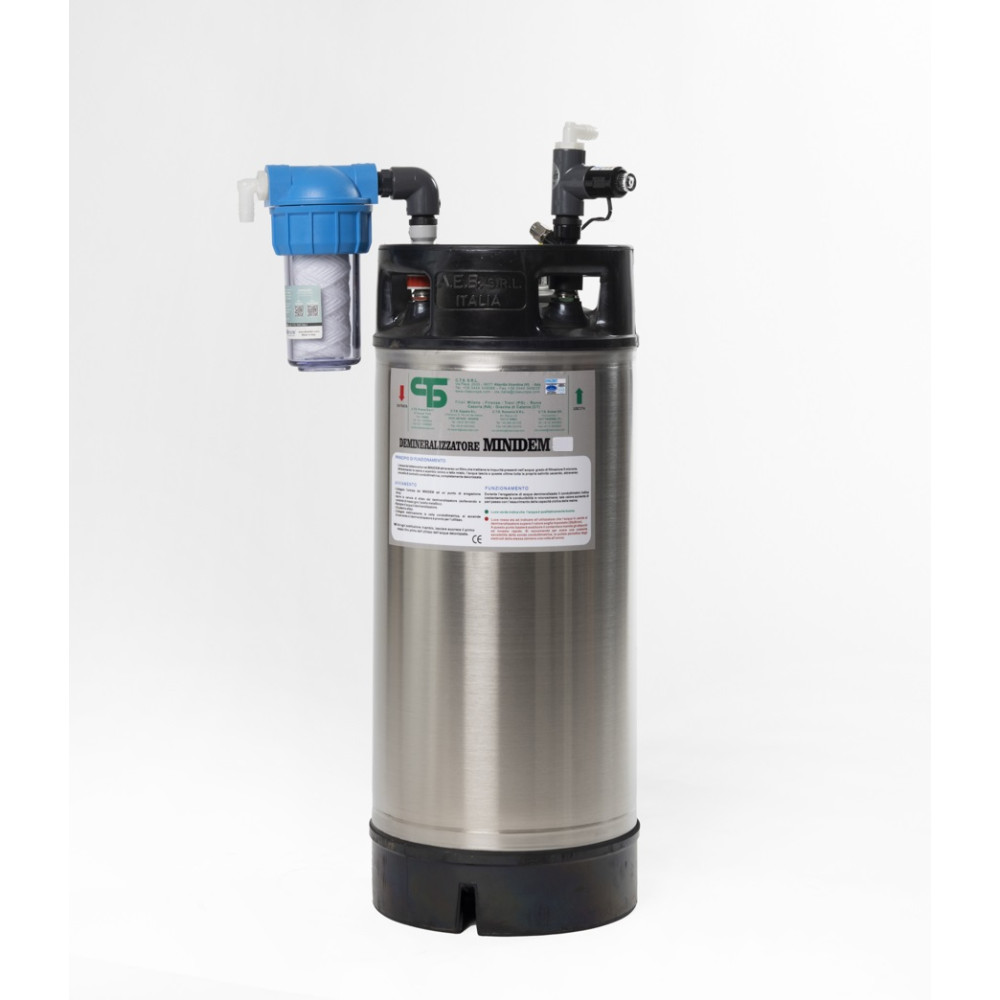

Déminéralisateur MINIDEM 20, 300 lit/h

Demineralizer with mixed-bed ion-exchange resins, realized to provide high purity water with no salts; it is composed of:

- a mechanical micrometric inlet filter mod. FP5 for solids with transparent container and 5” cartridge with 5 µ filtration degree;

- a LED conductivity meter for the continuous measurement of the quality of the produced water: - Green light: from 0 to 20 µS/cm - Red light: over 20 µS/cm

- a stainless steel column with practical handling handles, supplied complete with inlet/outlet quick-release connections, upper lid and drain valve. It is filled with a mixture of demineralizing mixed-bed resins (cationic/anionic) with high exchange power.





TECHNICAL SPECIFICATIONS

- Power supply: 220V – 50Hz single-phase - 12V (conductivity meter)

- Feedwater pressure: 5 bar max.

- Flow rate: 300 l/h. max.

- Ion-exchange resin quantity: 18 l

- Approximate water treatment capacity: - 2400 l at 20°F - 1700 l at 30°F - 1500 l at 34°F

- Water purity: 1 µS/cm

- Column dimensions: ø 23 x h 57 cm

- Overall dimensions: 34x23xh 68 cm

- Weight: approx. 20 kg
