Table basse pression/chauffante mini NSD 110 - 100x66cm

NSD 110 is a modern device which can help conservators in the various stages of paper and painting restoration. NSD 110 is equipped with a heating system and a low pressure system which allow a quick and uniform distribution of heat and suction over the entire working surface.

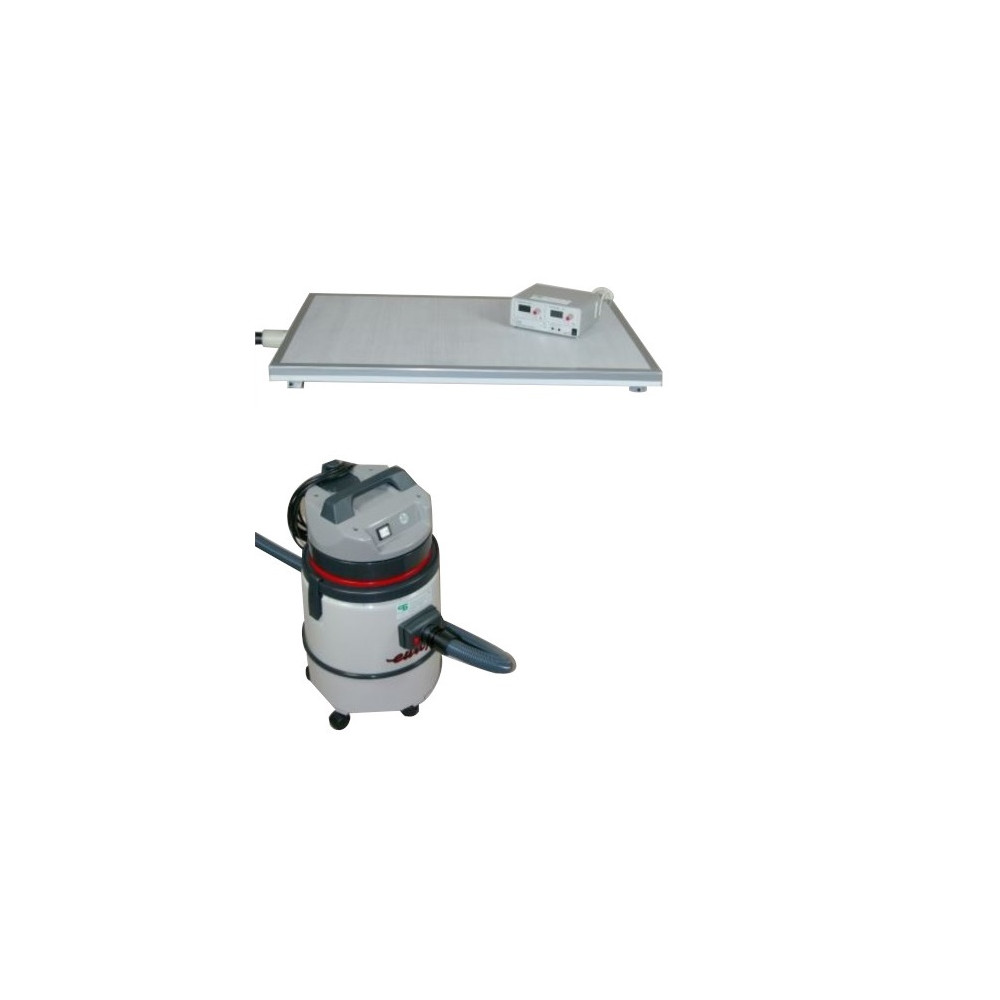

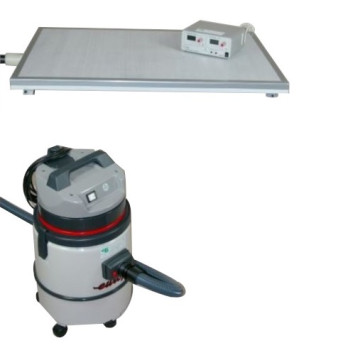

NSD 110 consists of:



- a control unit with on/off switch, heating system switch with warning light, vacuum system and automatic pressure control switch, temperature dial controller with display, pressure dial controller with display, warning light of incidental breakdowns in the heating system and connection hose to the suction system;



- an aluminium working surface with built-in heating elements and suction hoses, with two perforated platens of different thickness: the upper is 1 mm thick with ø 1.5 mm holes, the lower is 2 mm thick with ø 3.5 mm holes. Both platens are fixed to the table with a thermoresistant tape for an easy disassembly; the holes cover the 25% of the platens surface;



- a noiseless electric vacuum cleaner mod. Europa 303E, 1200W - 220V single-phase.









TECHNICAL SPECIFICATIONS







- Power supply: 220V single-phase



- Temperature: max. 90°C



- Safety class: I



- Power consumption: 1 kW



- Vacuum cleaner air flow: 210 m³/h



- Vacuum cleaner pressure: max. 2500 mmH2O



- Control unit dimensions: 215x90x200 mm



- Total weight: approx. 24 kg
