STEREOSKOP MIKROSKOP MOD.508-OPMI ZEISS - triokular

It consists of:

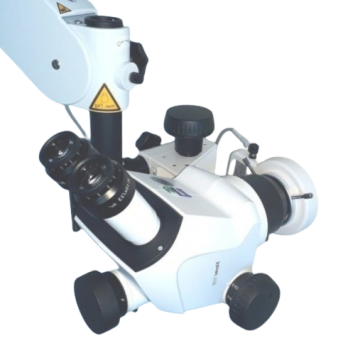

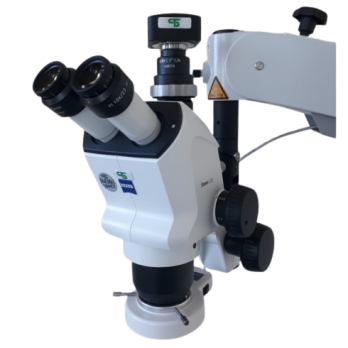

- trinocular optical head STEMI 508, with zooming range from 0.65x to 5x;

- pair 10x eyepieces complete with pair eyeguards, magnification range from 6.3x to 50x, working distance 92 mm, max field of view 36.8 mm;

- optical head-stand connection;

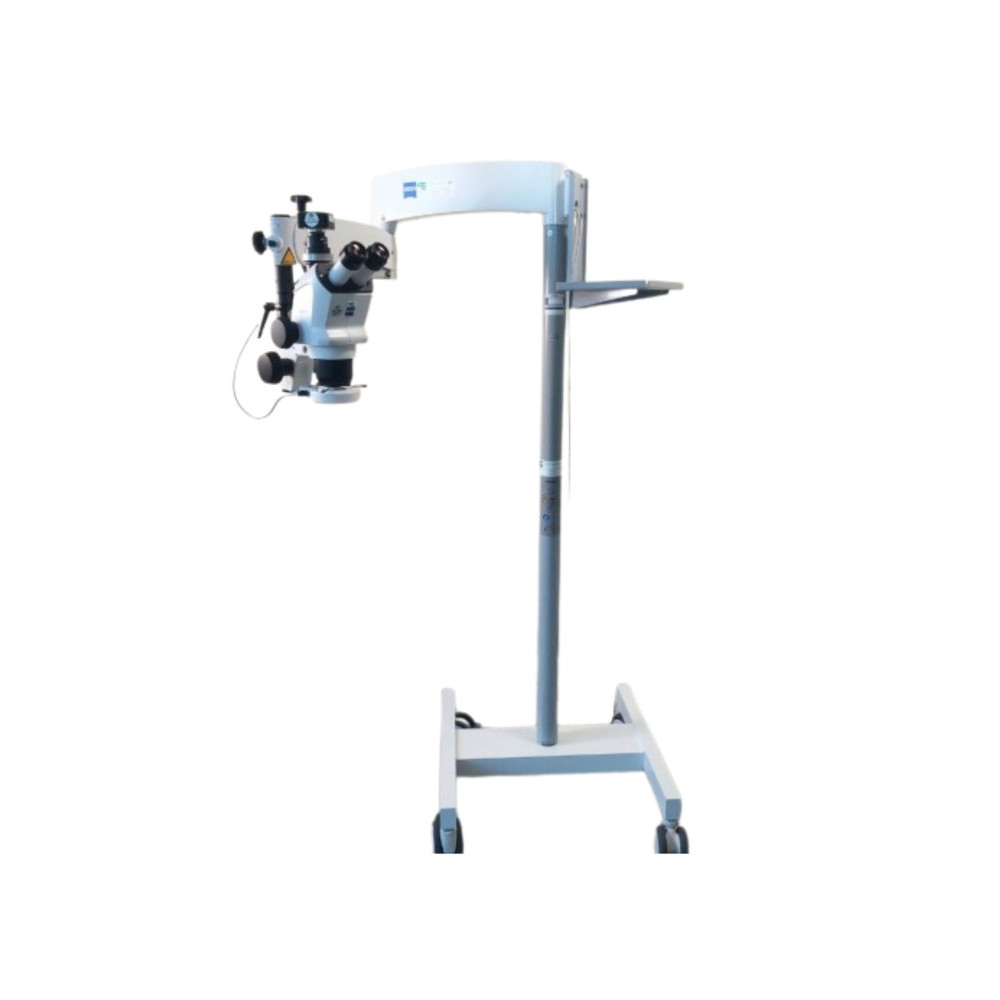

- floor stand mod. OPMI S100 with a four spoke base with casters, a stand column and a double spring-balanced articulated arm for quickly swivel the microscope in and out of the way, provided with a switch for illumination;

- integrated LED illumination system, with power supply;

- max outreach (in axle): 1100 mm;

- max height (from the floor): 1730 mm;

- base dimensions: 650x625 mm;

- swivel angle: 360°;

- weight: 87 kg

(The attachments and adapters for photographic/video camera applications are not included).
