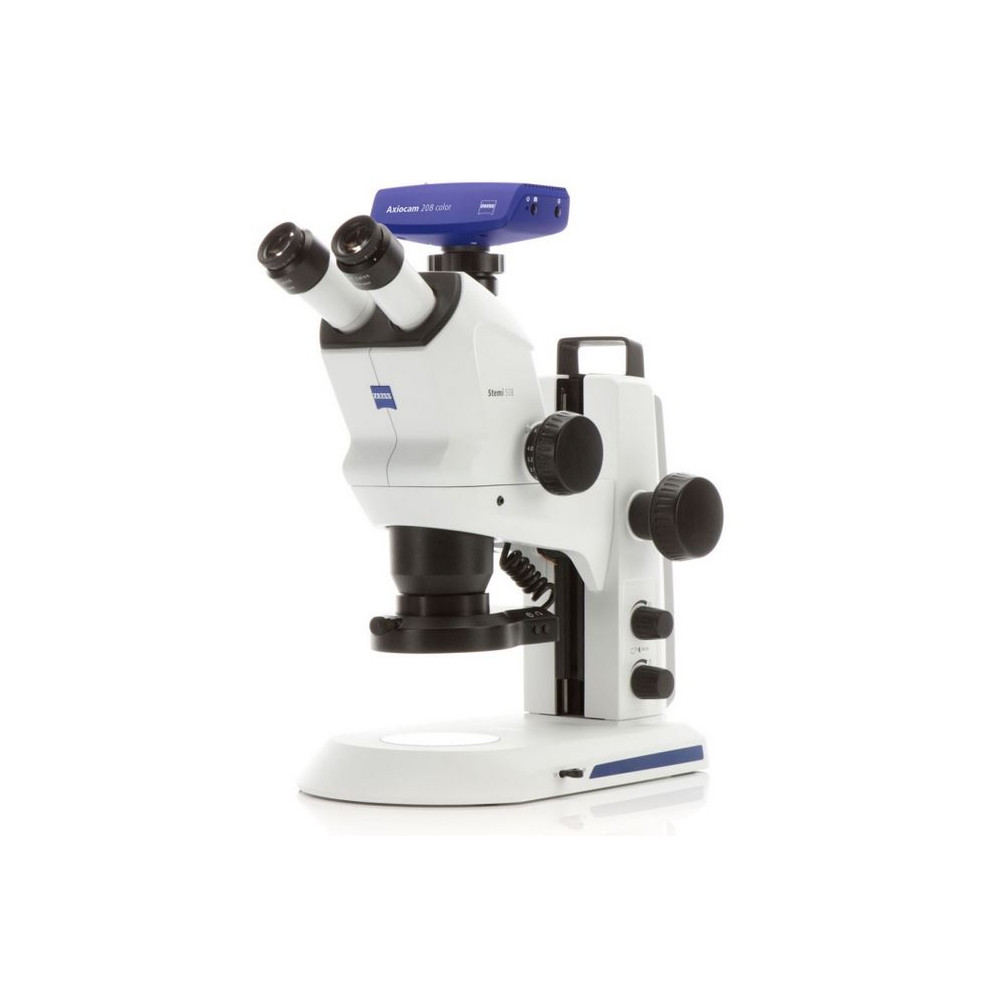

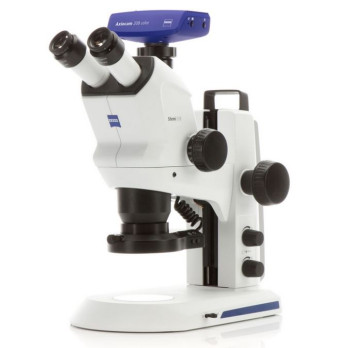

STEREOSKOP MIKROSKOP MOD. 508 SPOT ZEISS - triokular

It consists of:

- trinocular optical head STEMI 508 , with zooming range from 0.65x to 5x;

- pair 10x eyepieces complete with pair eyeguards, magnification range from 6.3x to 50x, working distance 92 mm, max. field of view 36,8 mm;

- optical head-stand connection;

- model U bench-top stand for observing surfaces outside the stand base, with an adjustable articulated arm and a support for the illumination power supply;

- integrated double-spot led illumination system;

- dust cover;

- max outreach (in axle): 1060 mm;

- max height (from the top): 500 mm.

(The attachments and adapters for photographic/video camera applications are not included).
