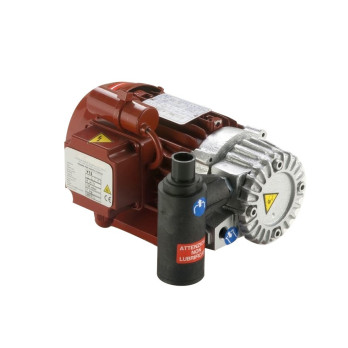

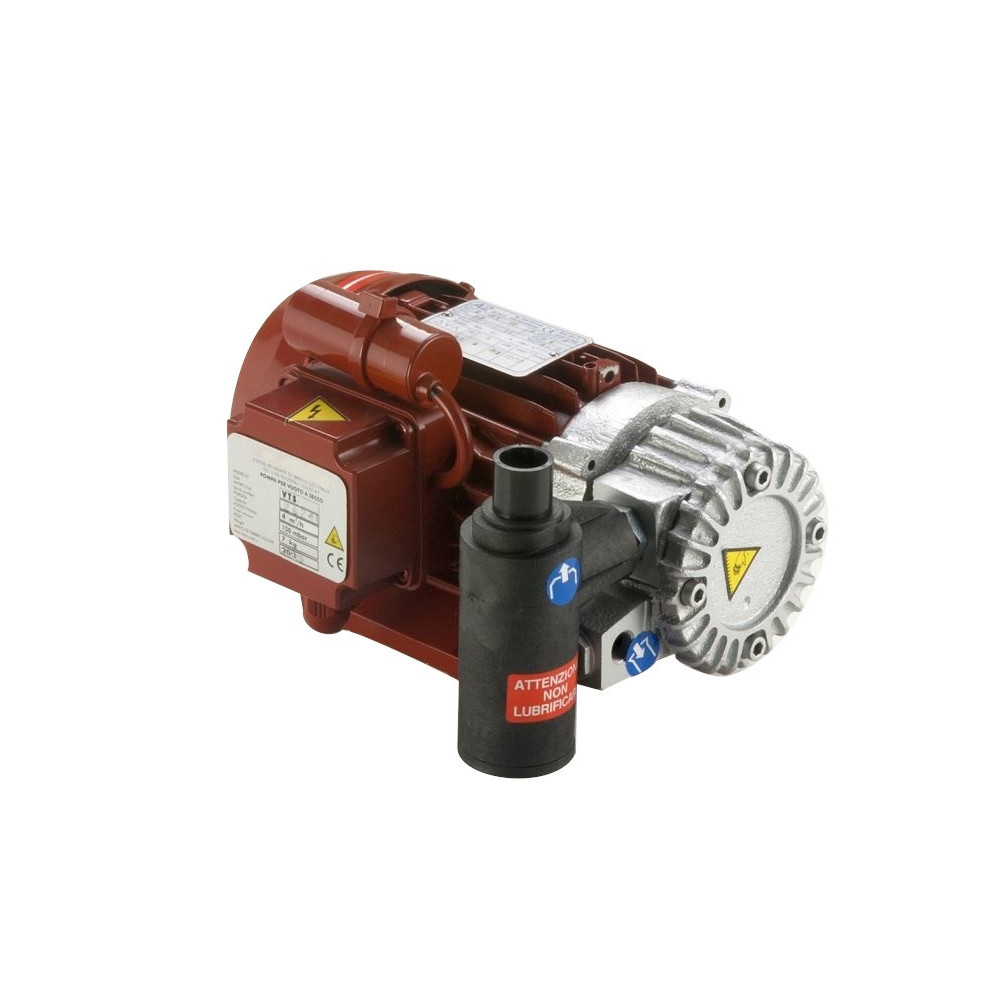

VAKUUMPUMPE VTS 6 - Durchflussmenge 6 m³/Stunde

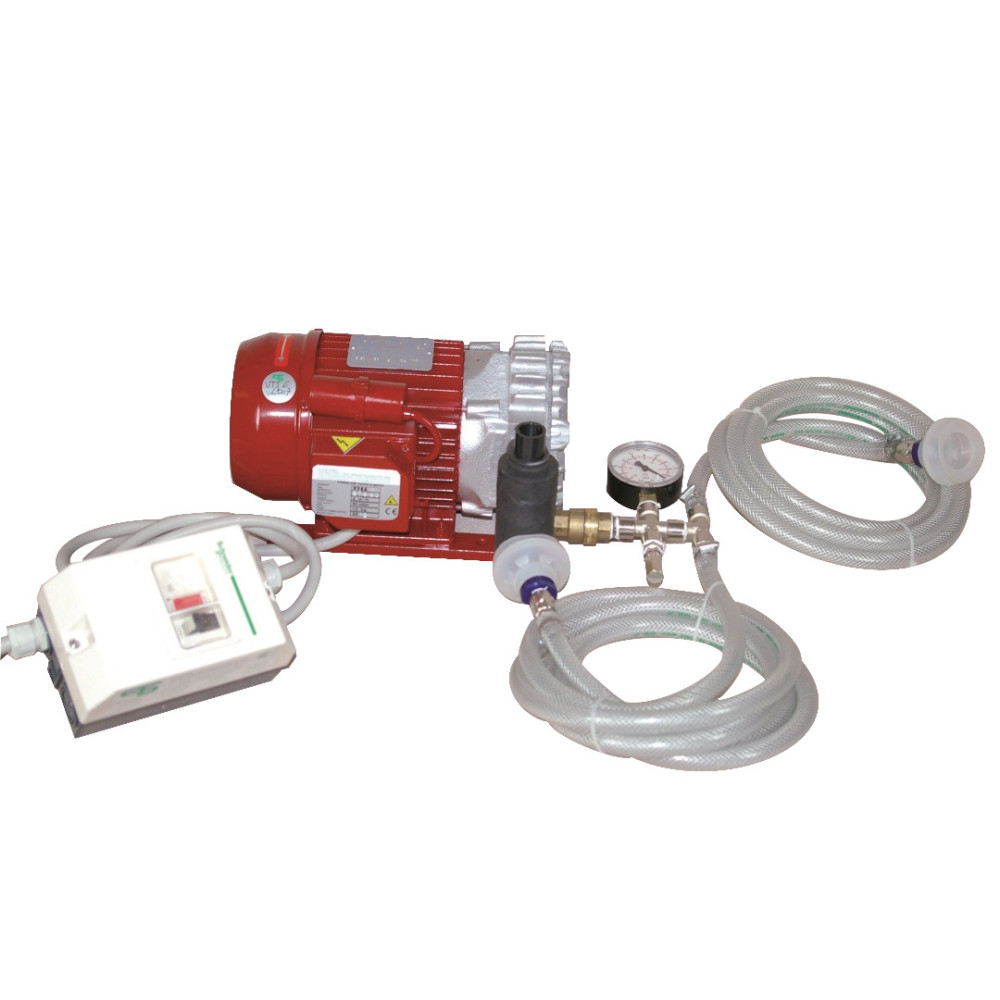

dry, lubrication free, equipped with:
- n. 01 vacuum adjustment valve;
- n. 01 vacuum gauge with double scale (mbar/KPa);
- n. 01 bronze and brass check valve;

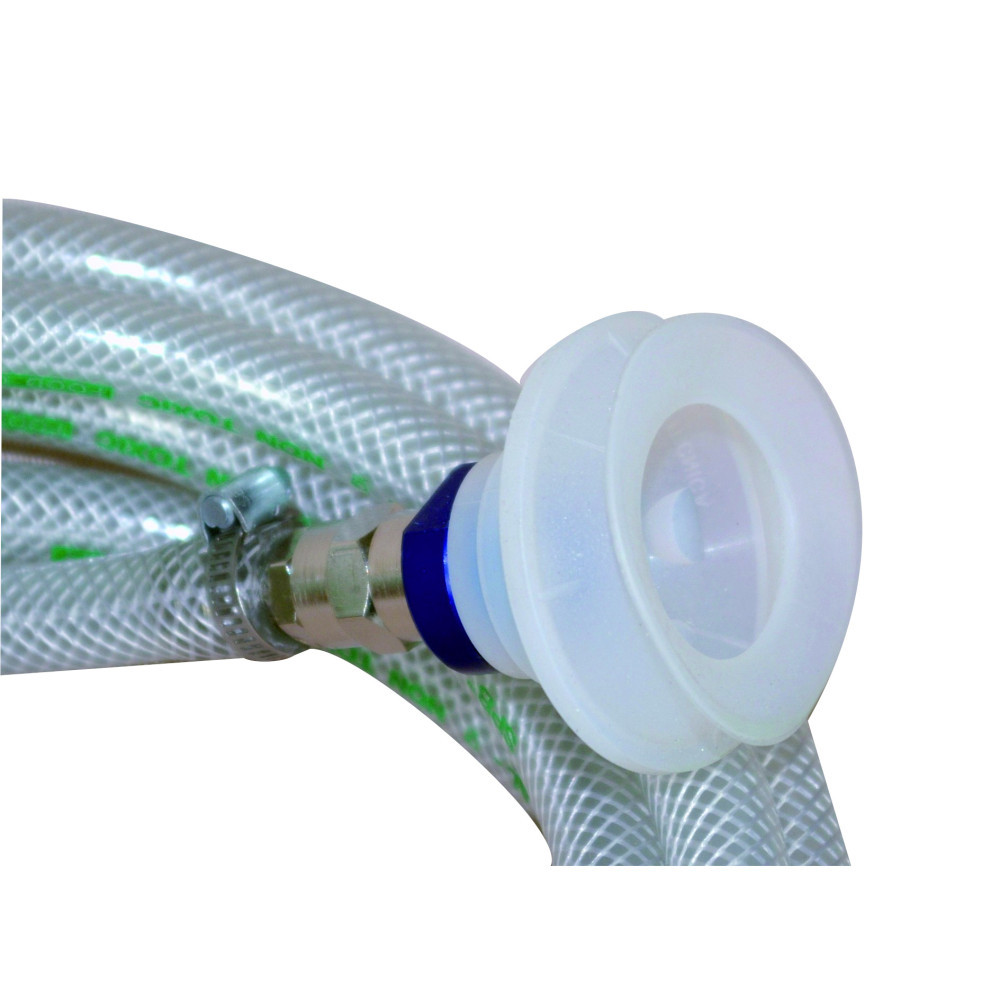

- n. 02 silicone bellows pads ø 53 mm with support and 2.5 m pump connecting tube;
- a control unit with switch.

TECHNICAL SPECIFICATIONS

- Power supply: 220V single-phase – 50Hz
- Air flow: 6 m³/hour
- Final vacuum: 700 mmHg – 80 mbar
- Power 0.25 Hp - 0.18 kW
- Rotation speed: 1450 rpm
- Weight of the pump: 12 kg
