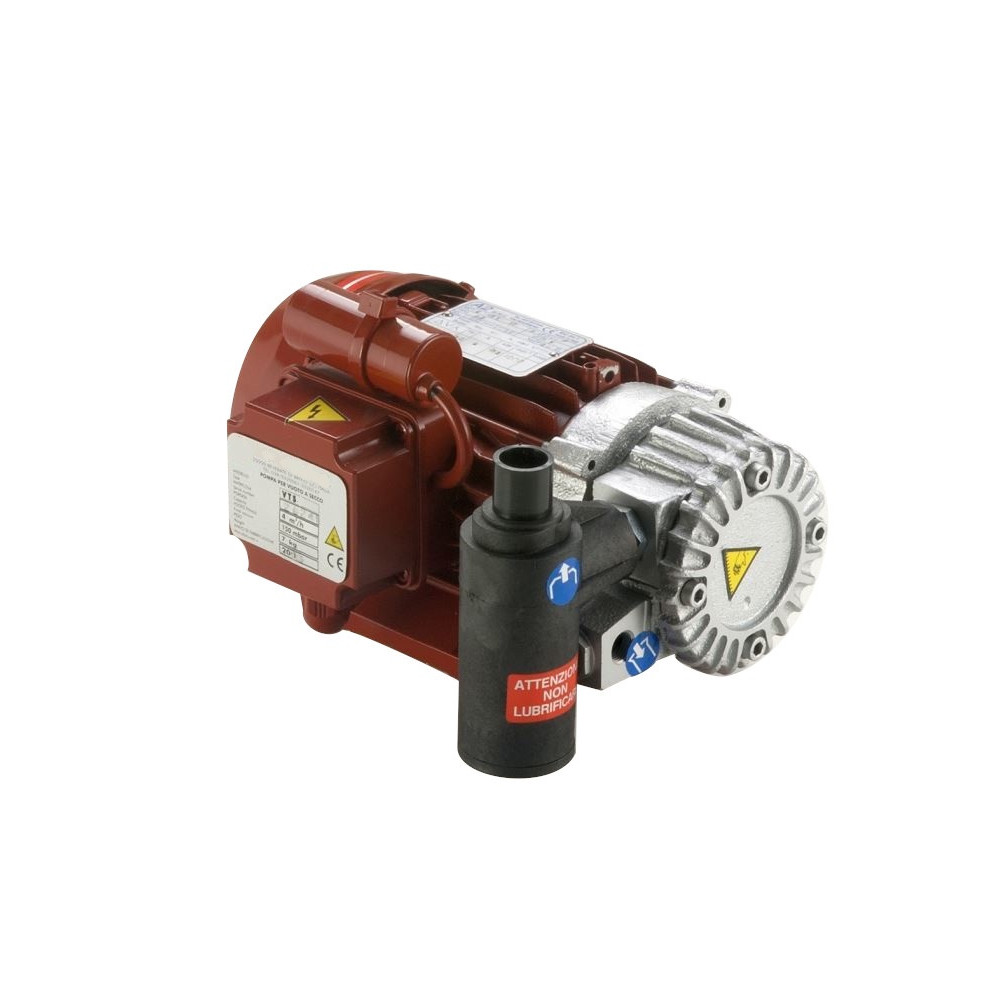

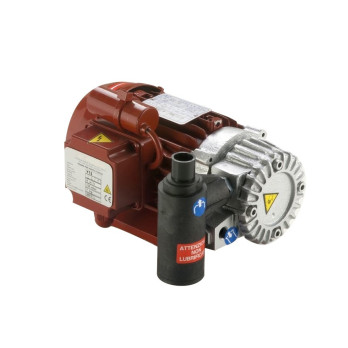

Pompe à vide VTS 6 - 6 m3/heure

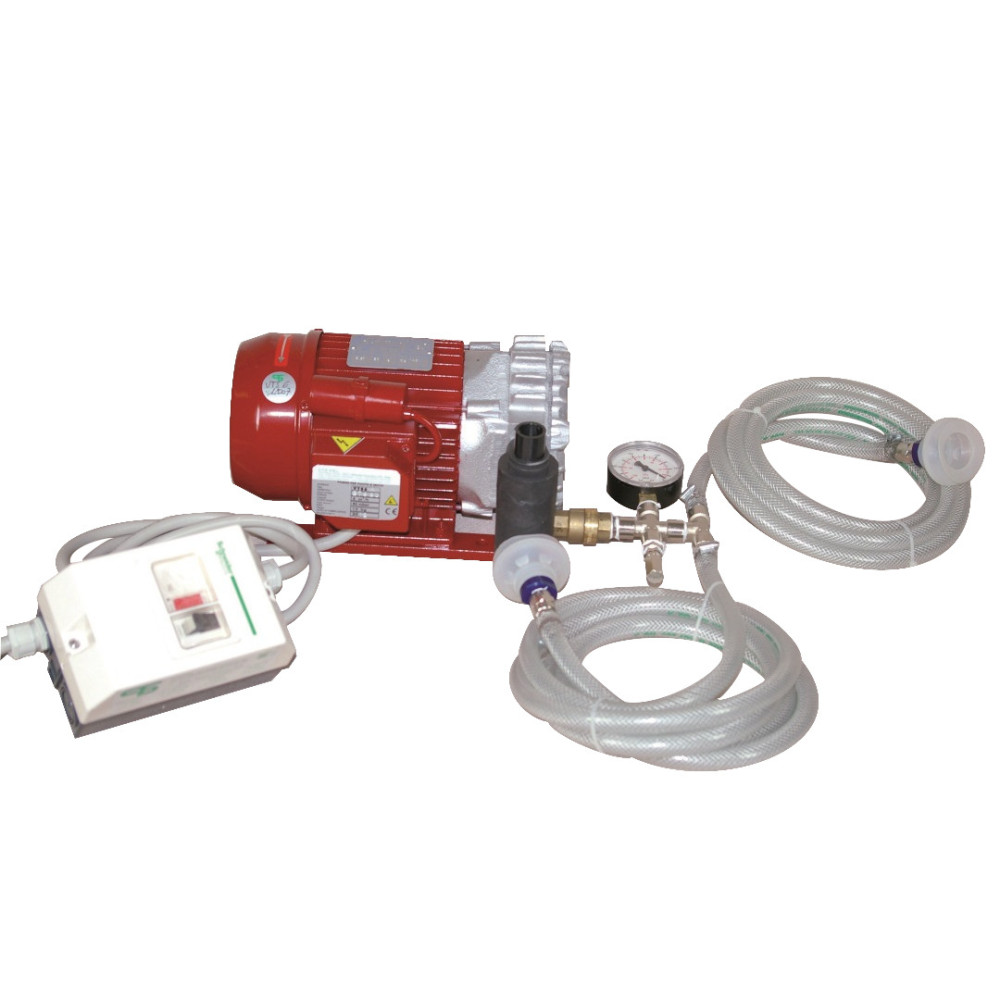

dry, lubrication free, equipped with:

- n. 01 vacuum adjustment valve;

- n. 01 vacuum gauge with double scale (mbar/KPa);

- n. 01 bronze and brass check valve;

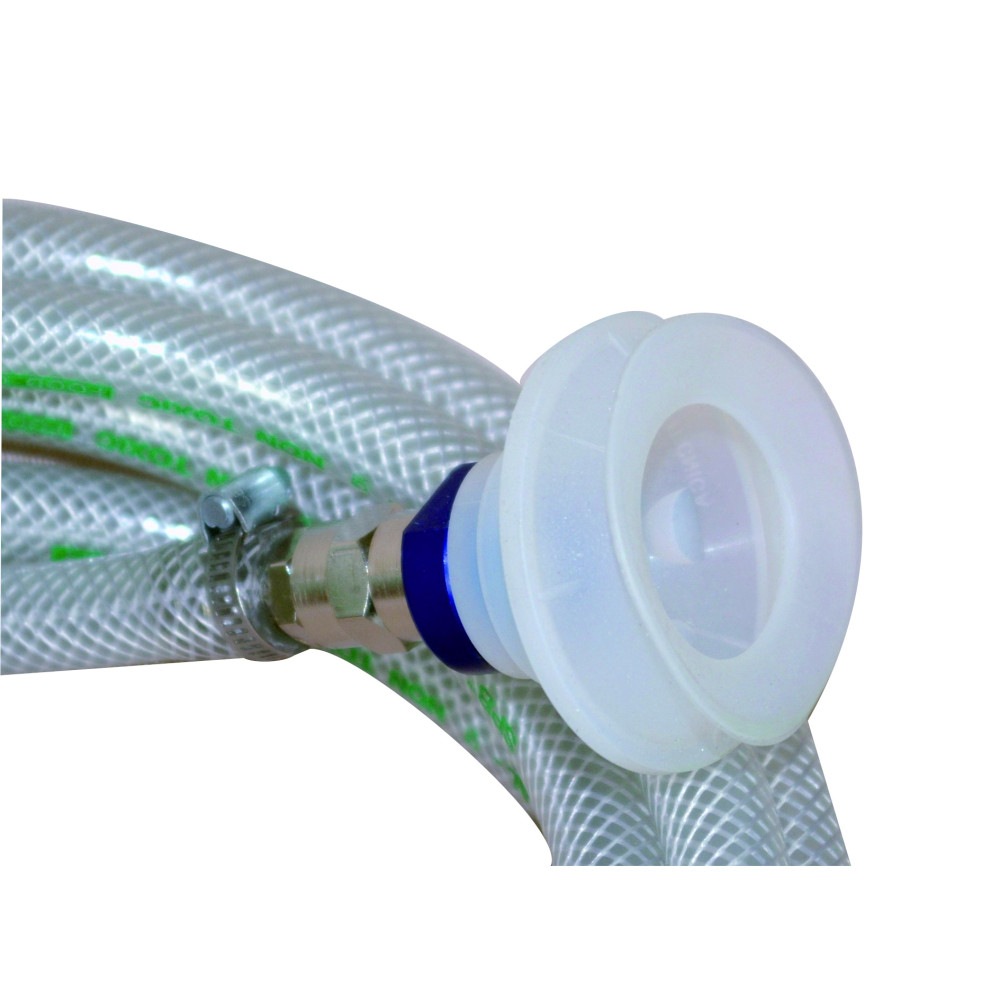

- n. 02 silicone bellows pads ø 53 mm with support and 2.5 m pump connecting tube;

- a control unit with switch.





TECHNICAL SPECIFICATIONS



- Power supply: 220V single-phase – 50Hz

- Air flow: 6 m³/hour

- Final vacuum: 700 mmHg – 80 mbar

- Power 0.25 Hp - 0.18 kW

- Rotation speed: 1450 rpm

- Weight of the pump: 12 kg
