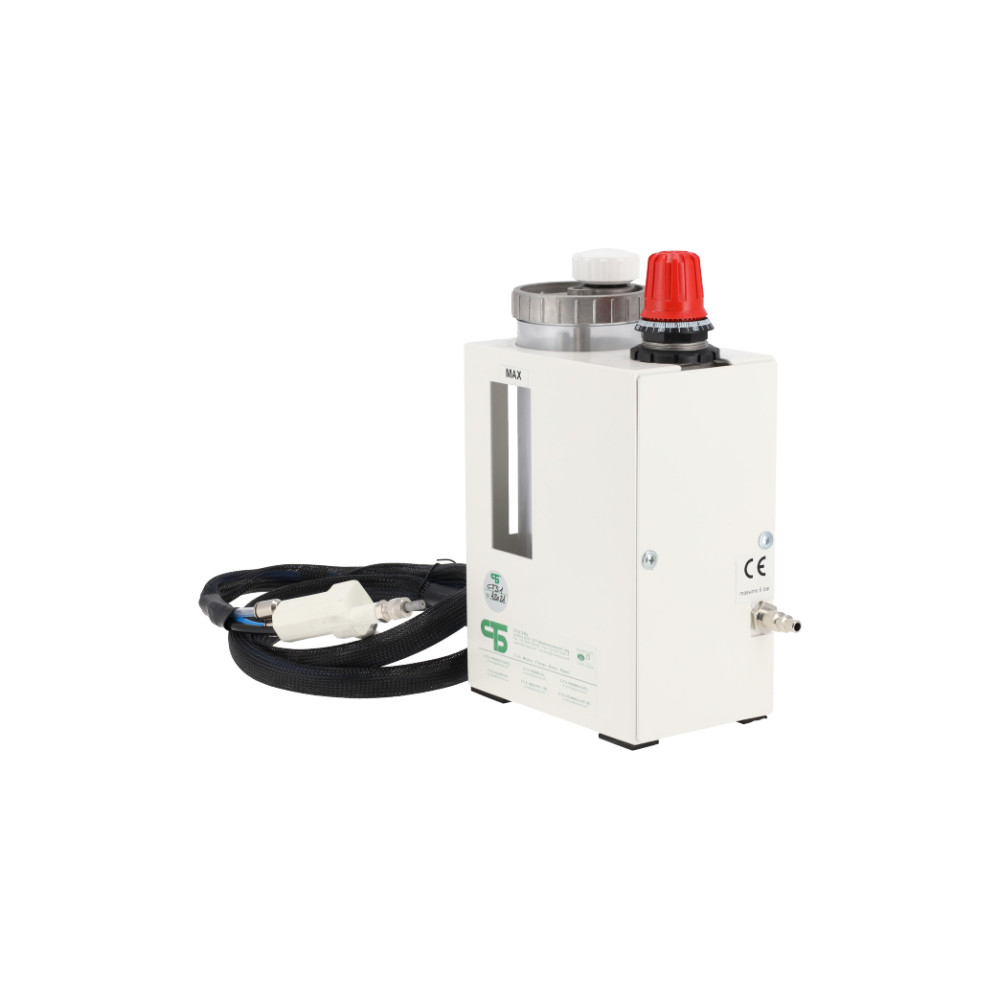

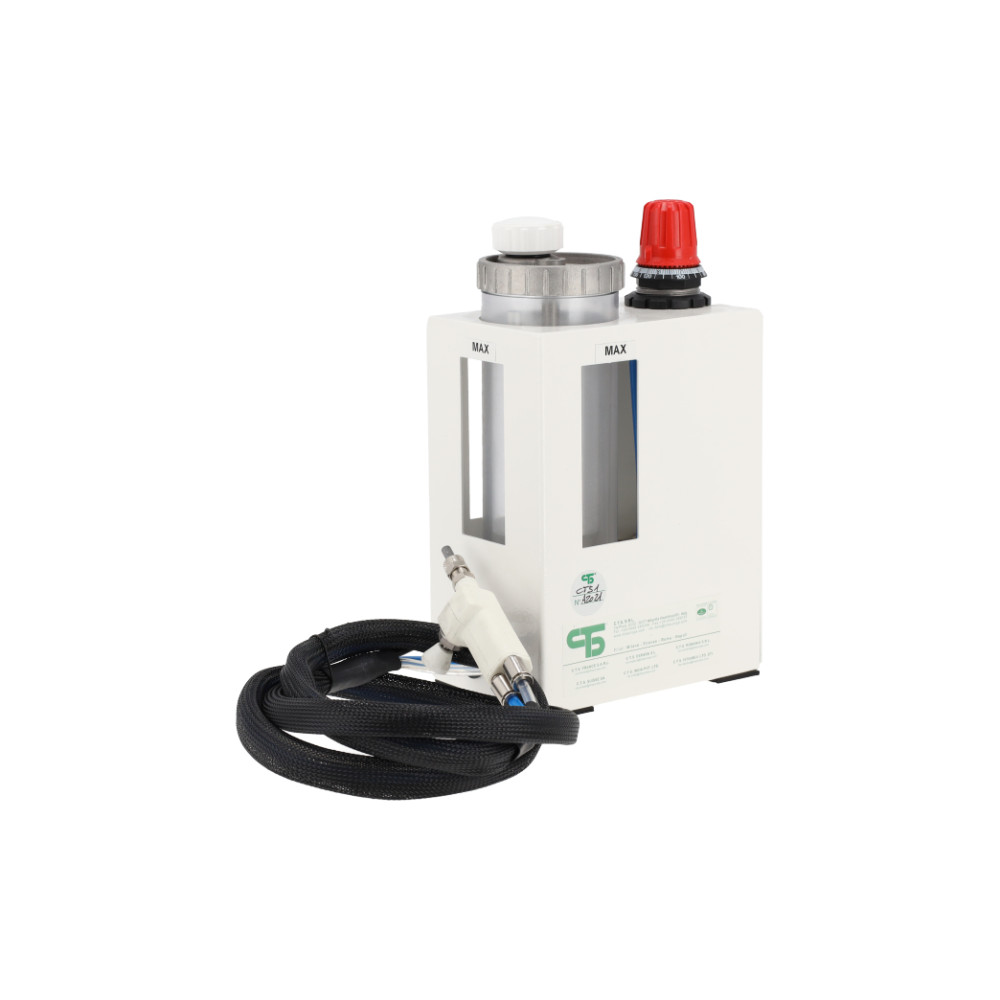

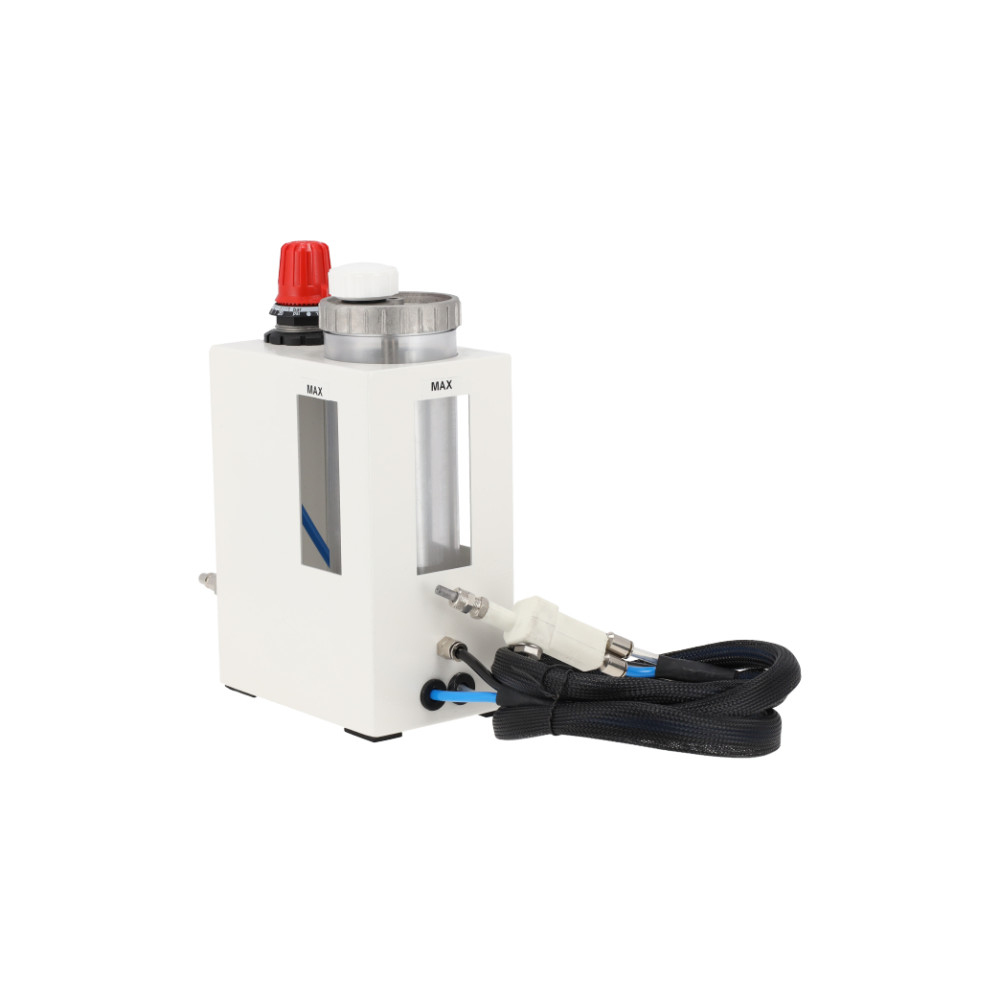

MICROSANDBLASTER CTS 1

A portable precision aeroabrasive instrument for studio and site use

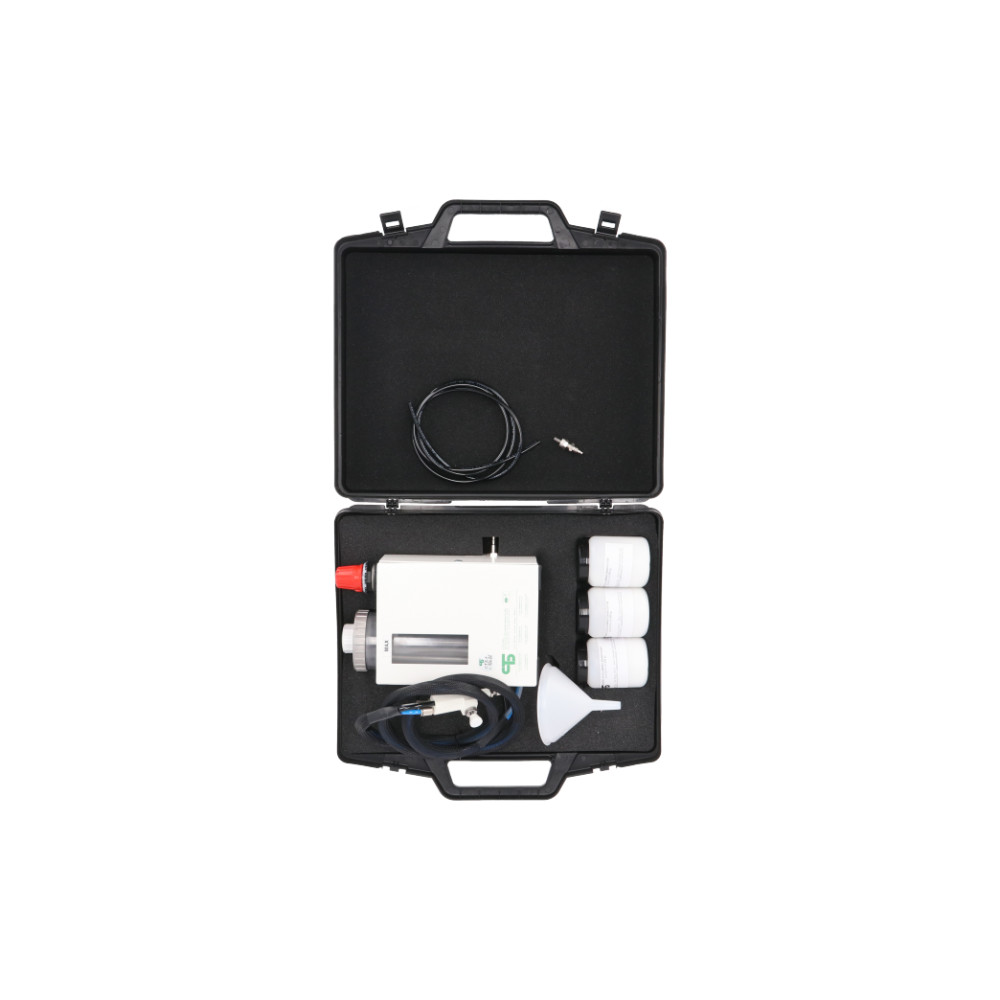

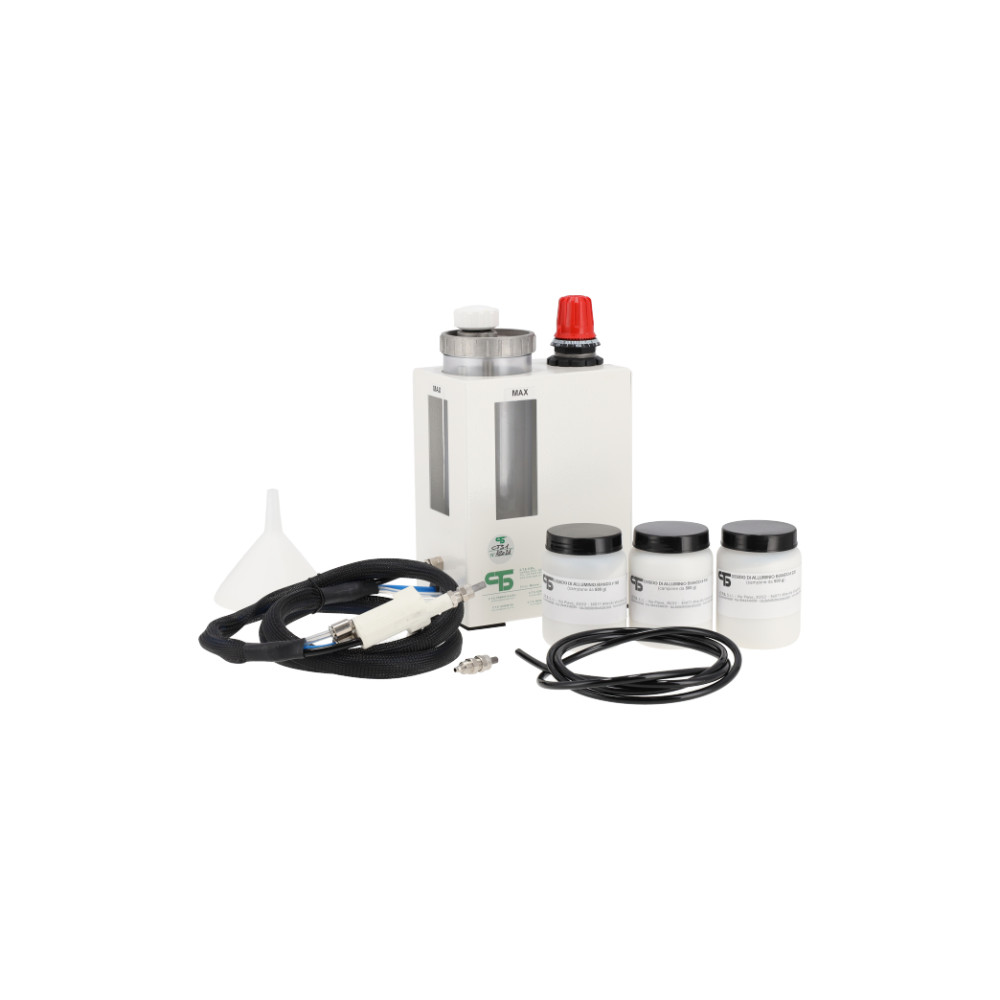

CTS 1 is made up of:

- a microsandblasting group with manometer and pressure regulator

- a transparent column tank to check continuously the level of the abrasive material

- a CTS 1/A anatomic microsandblasting pen with built-in starting button and junction tube to the microsandblaster

- a nozzle in tungsten carbide, ø 1.1 mm (fitted on the pen)



EQUIPMENT:



- 1 nozzle in tungsten carbide, ø 0.7 mm

- 1 nozzle-protecting joint

- 1 linen tube, 1.5 m long

- 1 funnel in polyethylene, ø 100 mm

- 1 jar of white aluminium oxide # 150, 500 g

- 1 jar of white aluminium oxide # 180, 500 g

- 1 jar of white aluminium oxide # 220, 500 g

- 1 rugged carrying case, size 447X412x107 mm





TECHNICAL SPECIFICATIONS:



- Input: compressed air

- Working pressure: from 0.1 to 6 bar

- Consumption: 60 - 80 l air/min

- Size: 16x10.5xh 28 cm

- Weight: 2.6 kg (empty weight).
