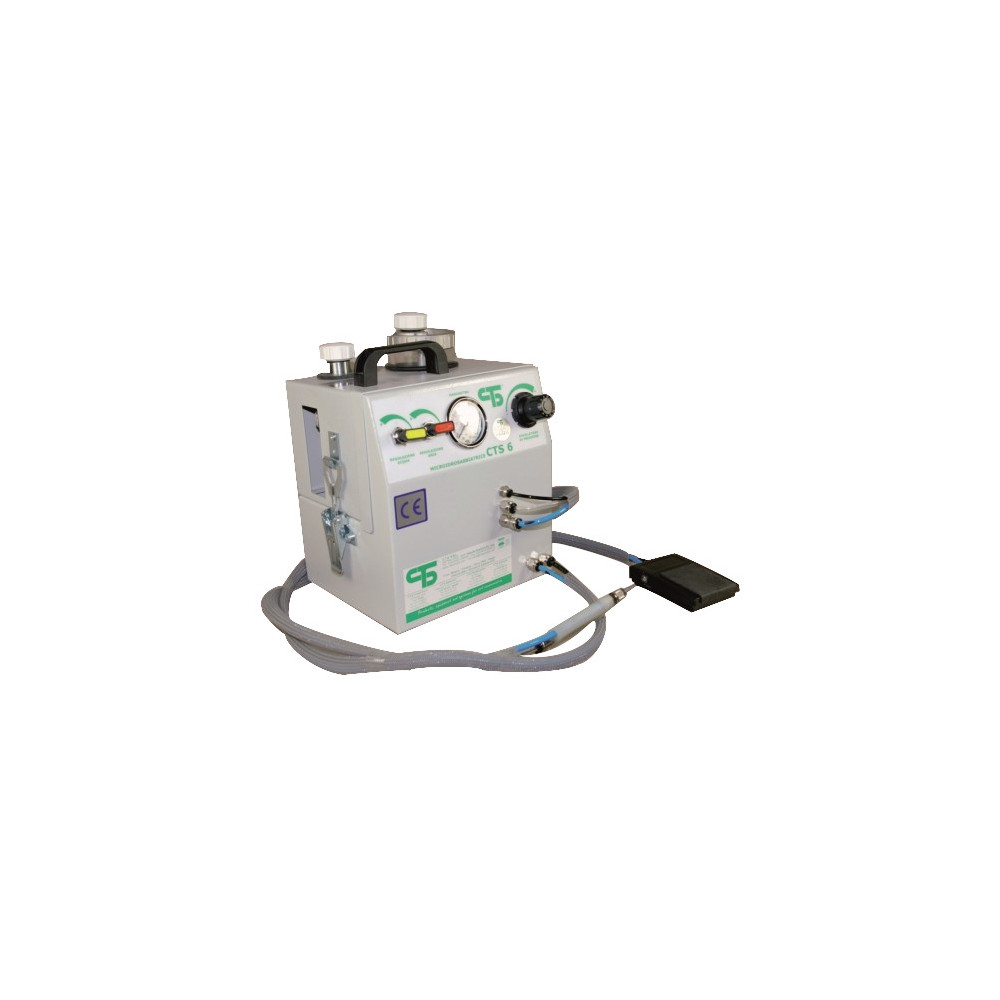

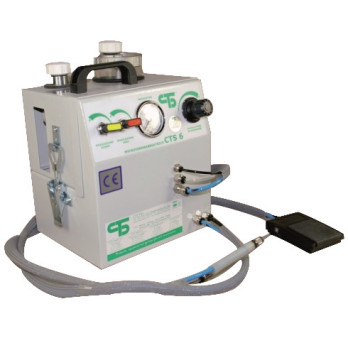

MICROHYDROSANDBLASTER CTS 6

A portable precision aeroabrasive instrument for studio and site work, which associates dry operating conditions (microsandblasting) with water, assuring the independence of the two functions.

CTS 6 allows, indeed, dry-operations, water-operations and/or mixed operations (microhydrosandblasting).

CTS 6 is made up of:

- a microsandblasting group with manometer and precision pressure regulator

- a transparent column tank for powders, to check continuously their level

- a transparent column tank for water, to check continuously its level

- water and air adjusting valves (independent)

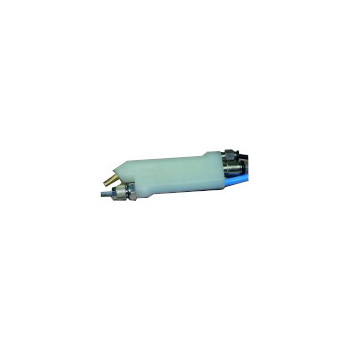

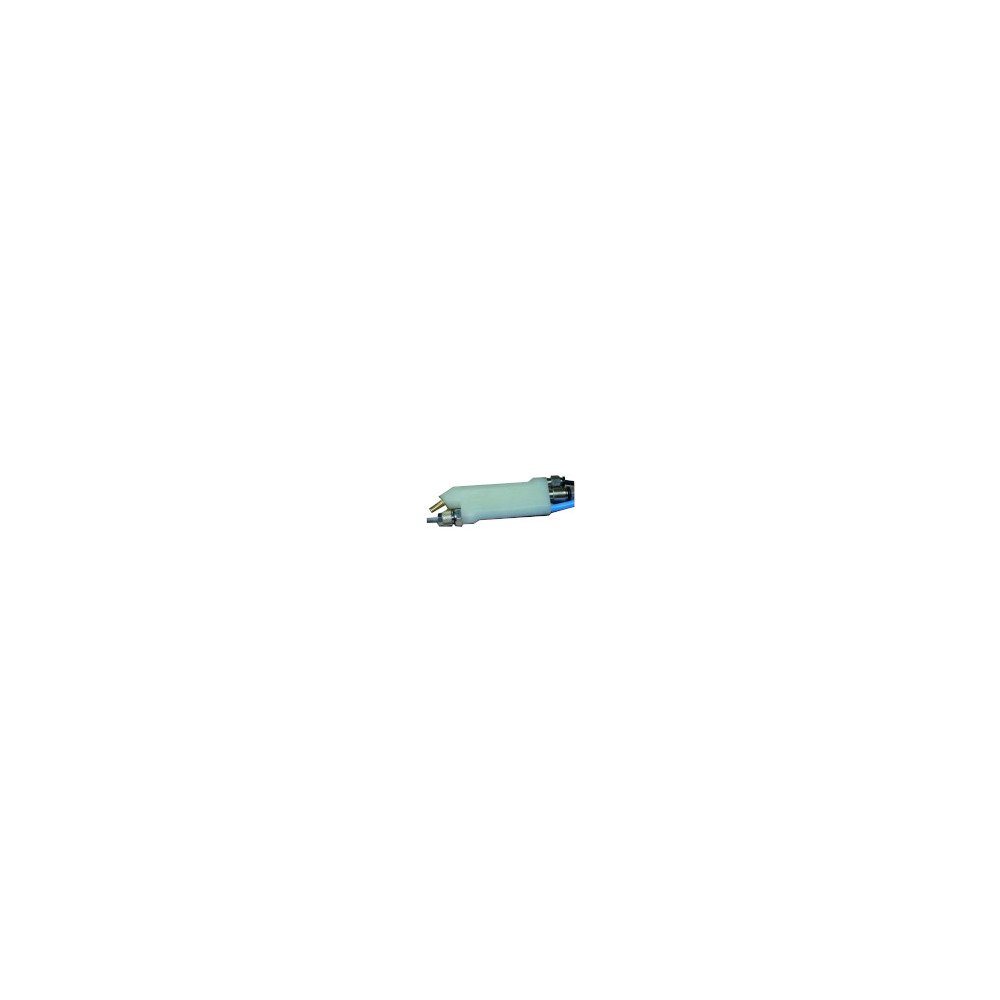

- a CTS 6/A anatomic microhydrosandblasting pen with abrasive outlet and water outlet nozzle (independent)

- a nozzle in tungsten carbide, ø 1.1 mm (fitted on the pen)

- pneumatic pedal control.

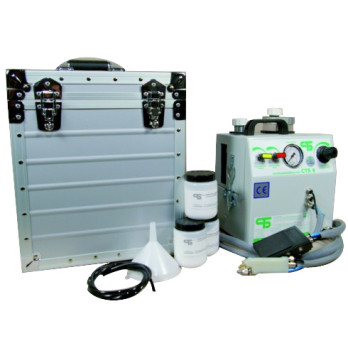

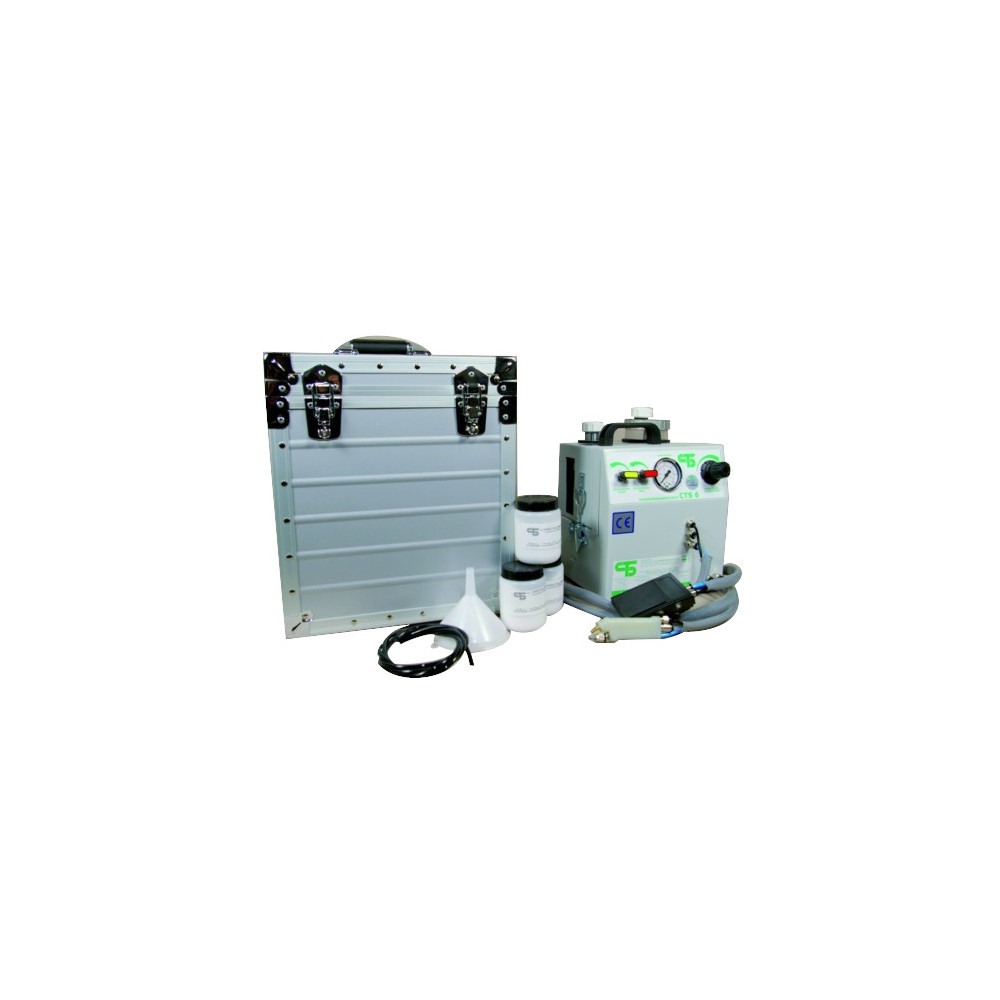

EQUIPMENT:



- 1 nozzle in tungsten carbide, ø 0.7 mm

- 1 nozzle in tungsten carbide, ø 1.4 mm

- 1 nozzle protecting joint

- 1 linen tube, 1.5 m long

- 1 funnel in polyethylene, ø 100 mm

- 1 jar of white aluminium oxide # 150, 500 g

- 1 jar of white aluminium oxide # 180, 500 g

- 1 jar of white aluminium oxide # 220, 500 g

- 1 metal stiff case dim. 380x280xh.360 mm.





TECHNICAL SPECIFICATIONS:



- Input: compressed air

- Working pressure: from 0.1 to 6 bar

- Consumption: 100 - 150 l air/min

- Water tank capacity: 0.5 l

- Powder tank capacity: 0.7 kg

- Size: 25x21xh 34 cm

- Weight: 7 kg (empty weight)
