MICROSANDBLASTER CTS 5

A portable precision aeroabrasive instrument with electronic control, for studio and site work.

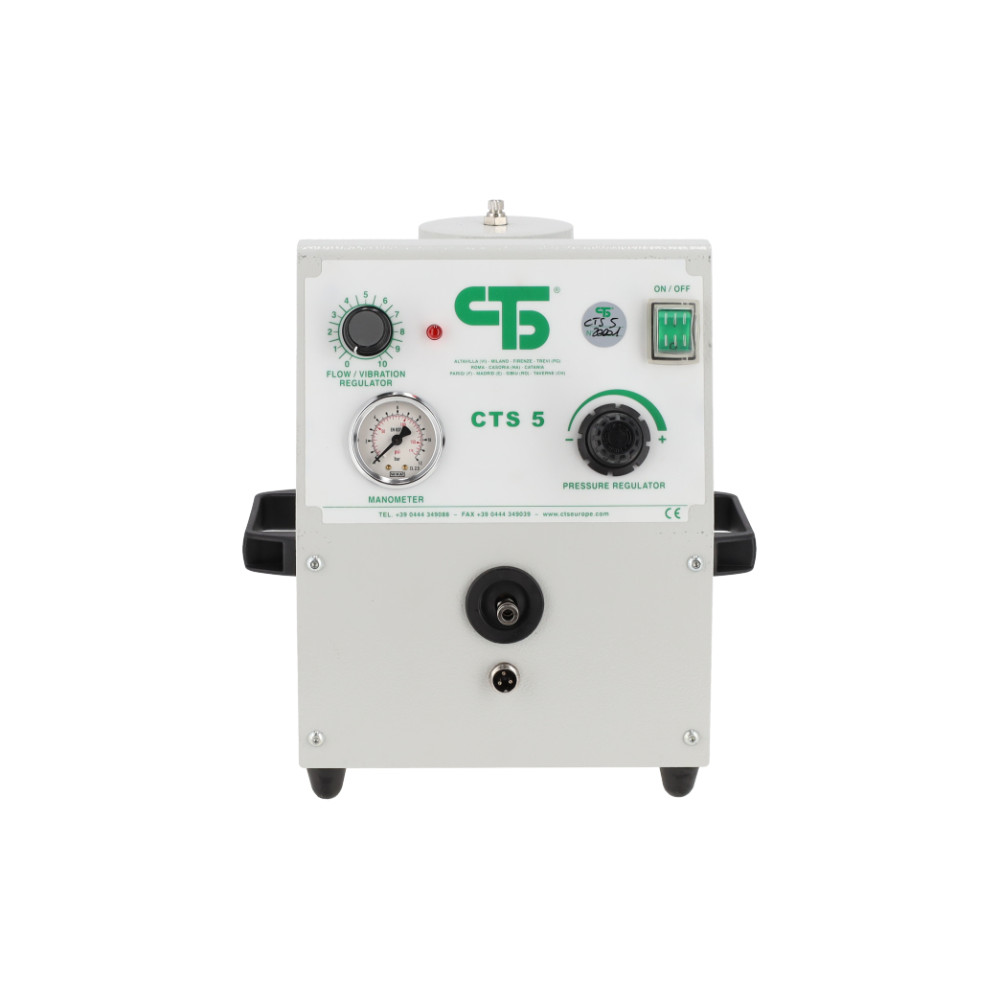

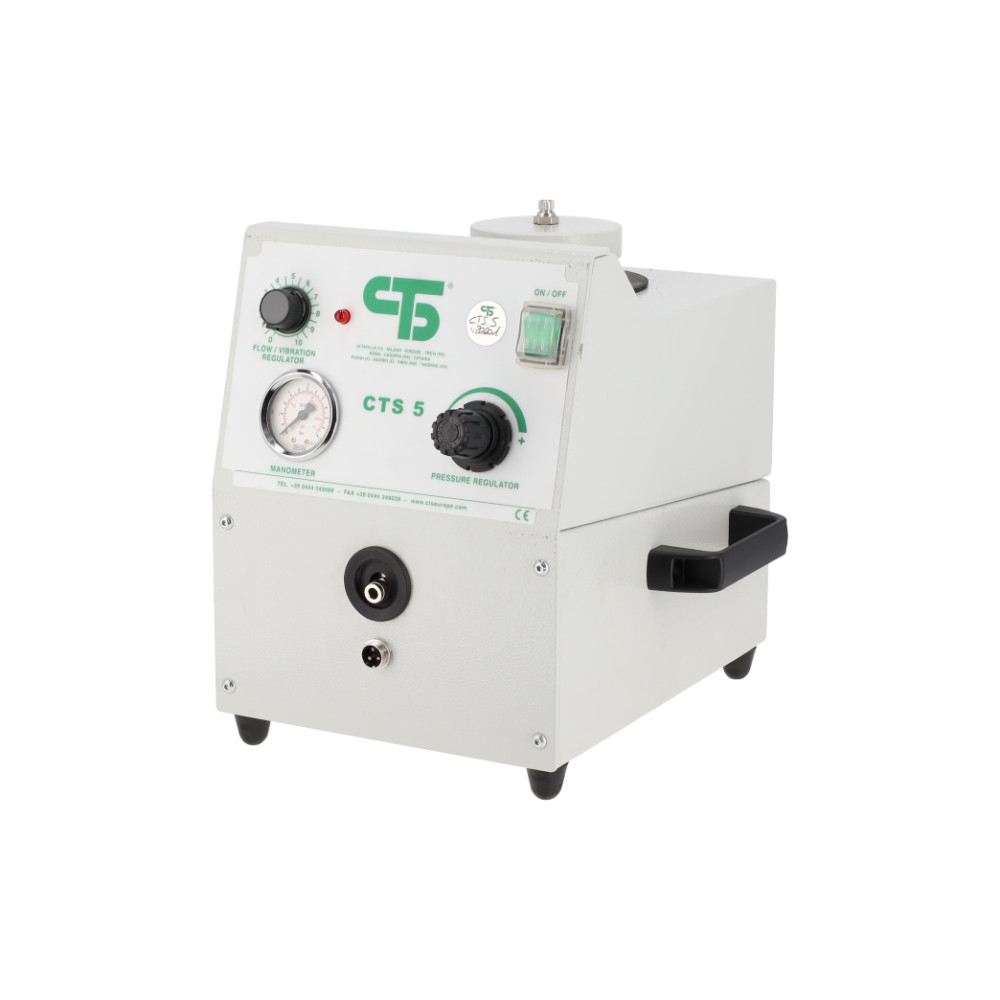

CTS 5 is made up of:

- a microsandblasting group with manometer and precision pressure regulator

- an electronic vibrating group with on/off light switch and a regulator with warning light, placed on the control panel. The system guarantee a continued and homogeneous flux of abrasive material used. Also it allows a variation in qauntity regardless of the operating pressure.

- a column tank with safety valve on the plug

- a nozzle in tungsten carbide, ø 1.1 mm (fitted on the pen)



The microsandblaster CTS 5 is available with the following control version:

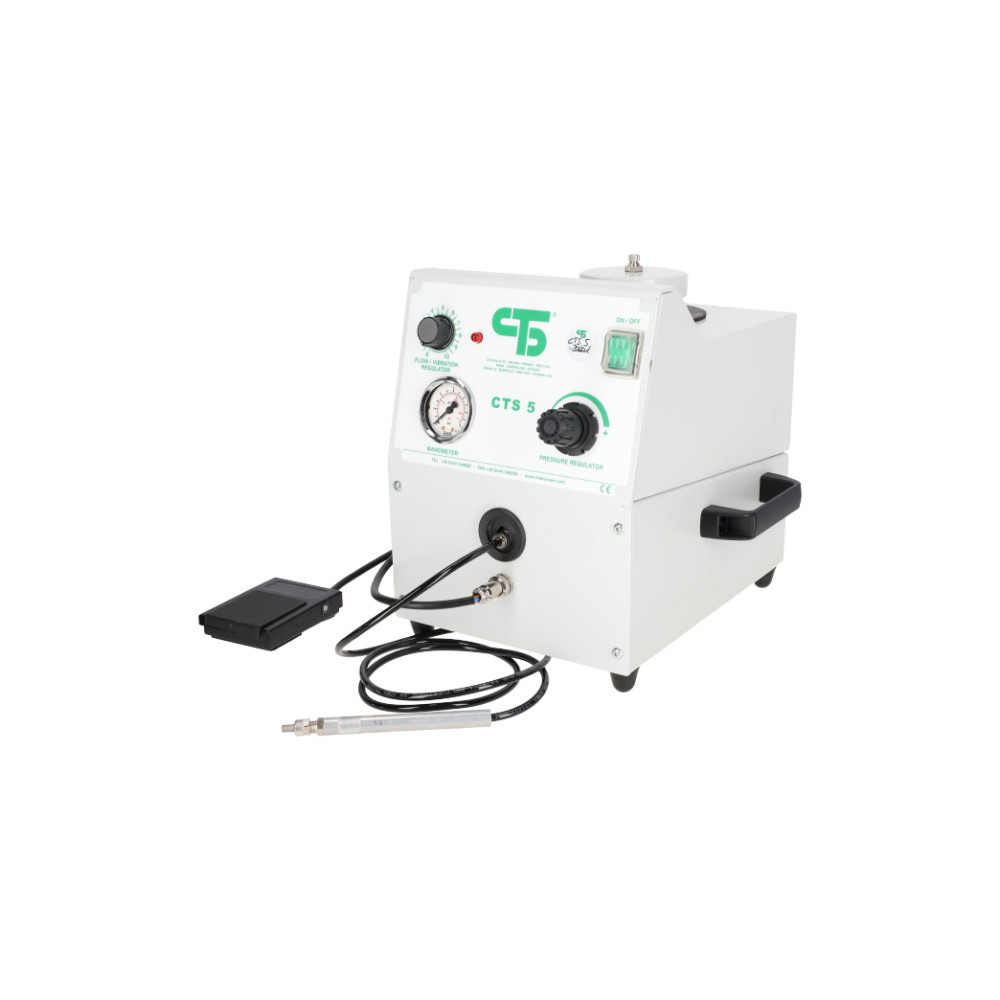

- CTS 5/B microsandblasting pen, electric pedal and connection tubes

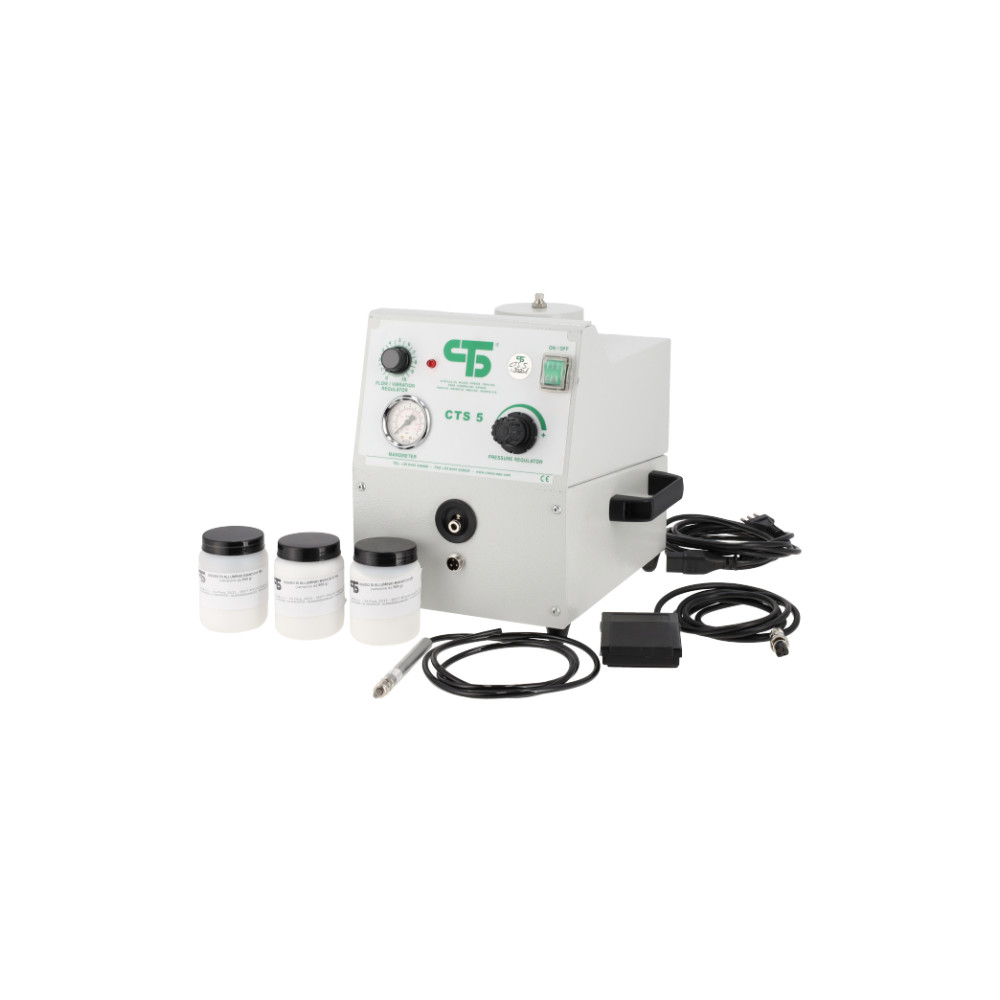

EQUIPMENT:

- 1 nozzle in tungsten carbide, ø 0.7 mm

- 1 nozzle in tungsten carbide, ø 1.4 mm

- 1 nozzle protecting joint

- 1 linen tube, 1.5 m long

- 1 funnel in polyethylene, ø 100 mm

- 1 jar of white aluminium oxide # 150, 500 g

- 1 jar of white aluminium oxide # 180, 500 g

- 1 jar of white aluminium oxide # 220, 500 g

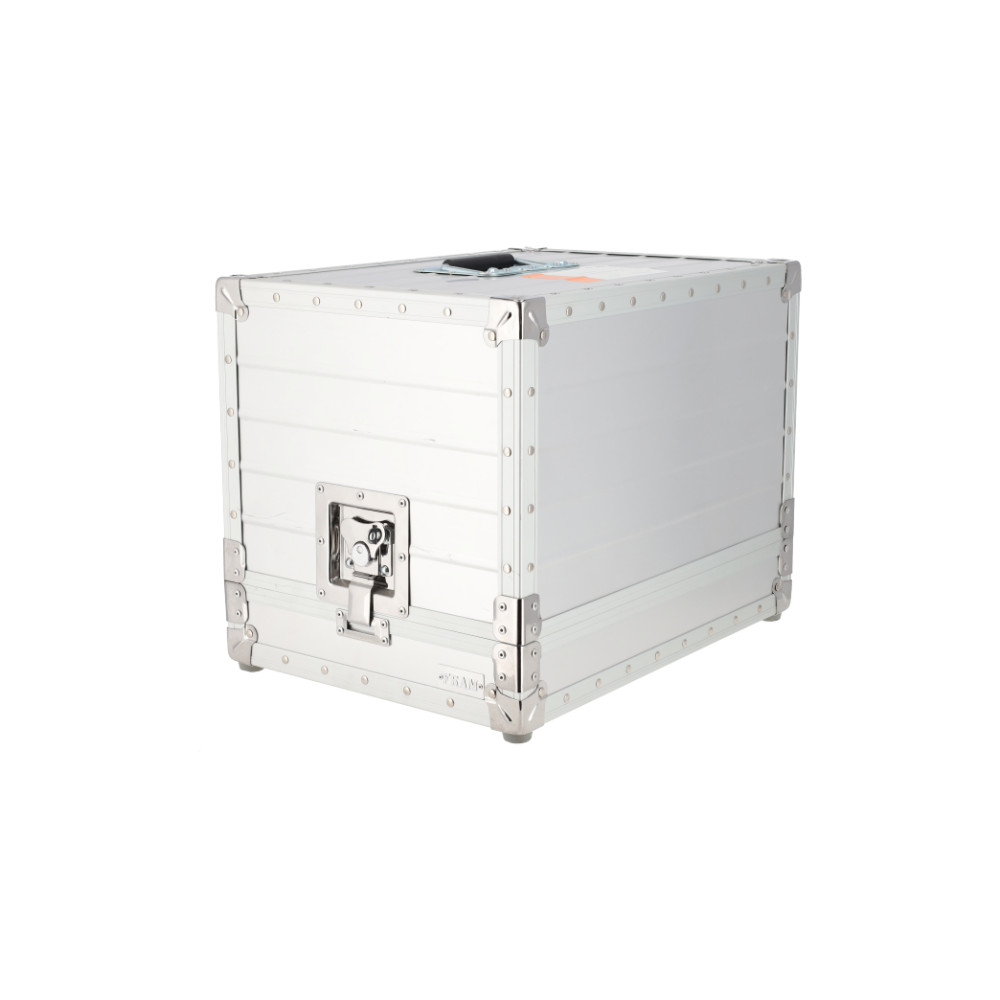

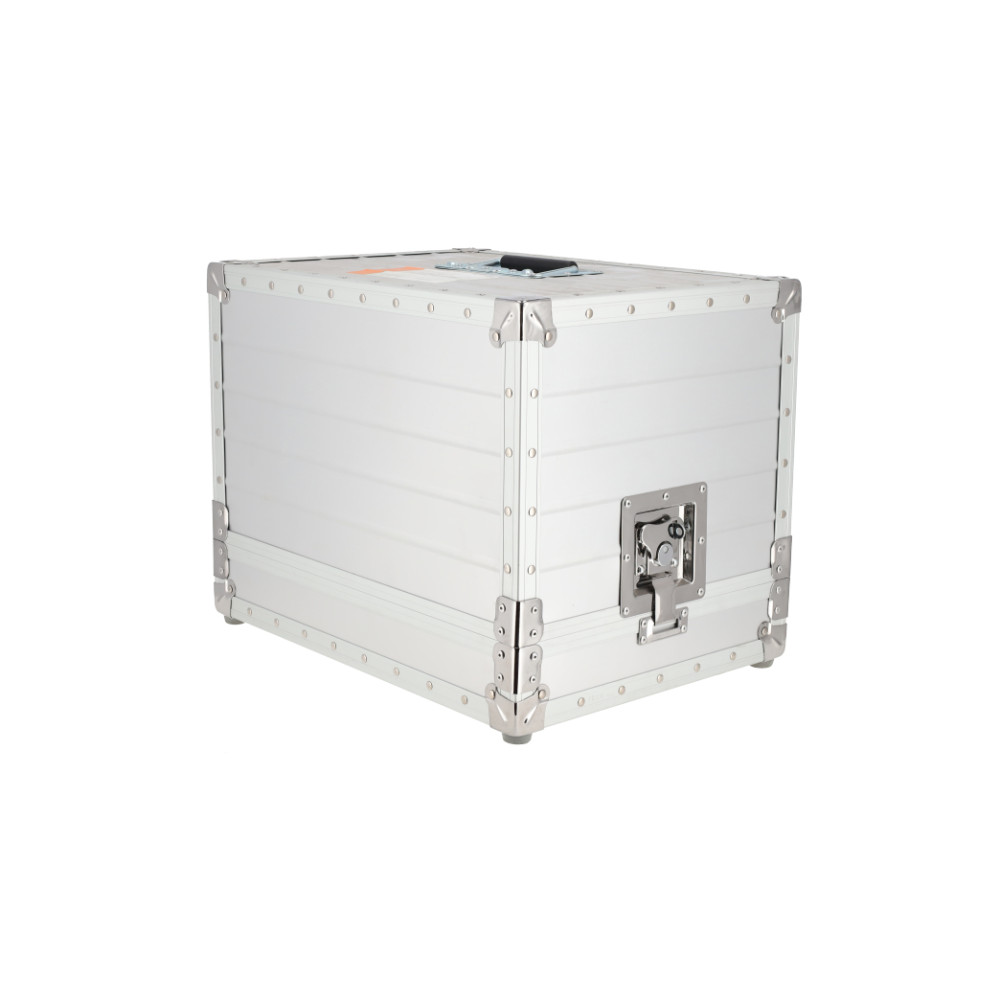

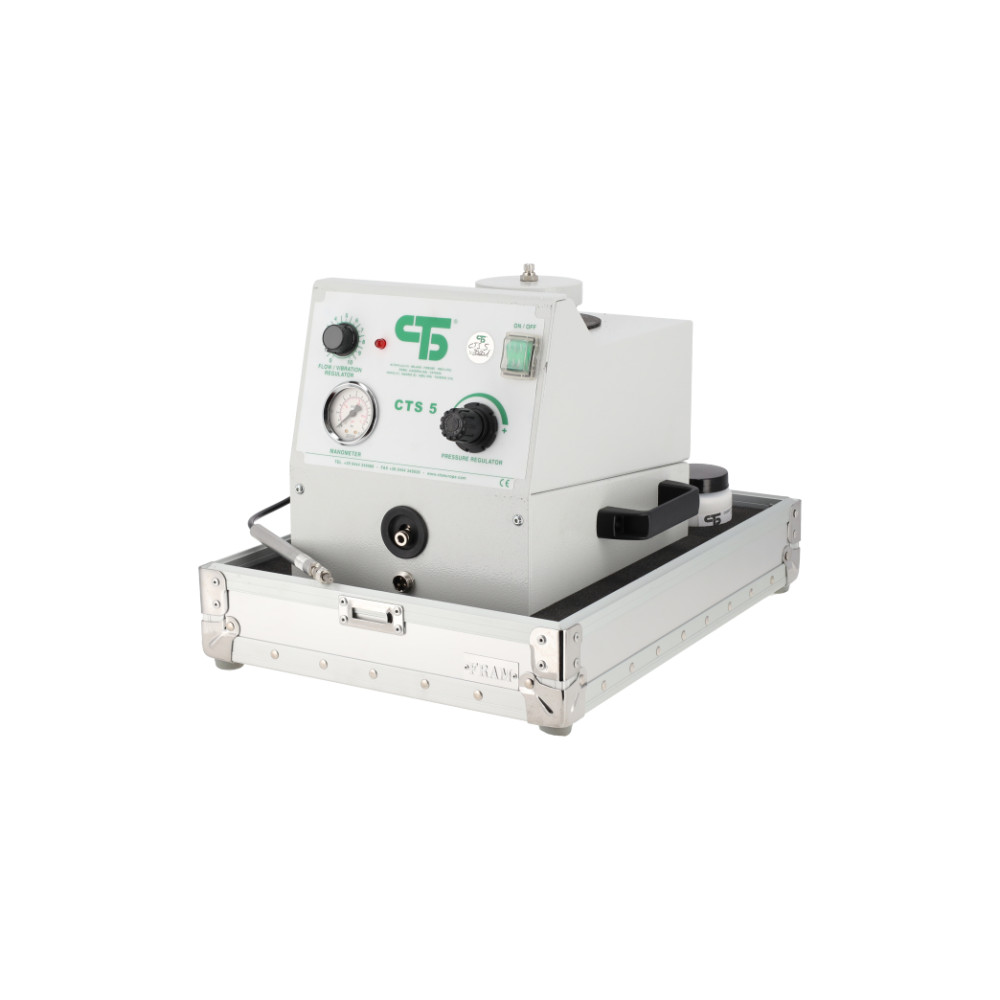

- 1 metal stiff case dim. 480x350xh.380 mm





TECHNICAL SPECIFICATIONS:

- Power supply: 220V single-phase 50-60Hz

- Pen/pedal voltage: 24V

- Working pressure: from 0.1 to 6 bar

- Consumption of compressed air: 60 - 80 l air/min

- Size: 23x30xh 31 cm

- Empty weight: 16,8 kg

- Totally weight (with accessories): 27 kg
